MPXV1D0530 Series
Manufacturer: KEMET
Beta
⌘K

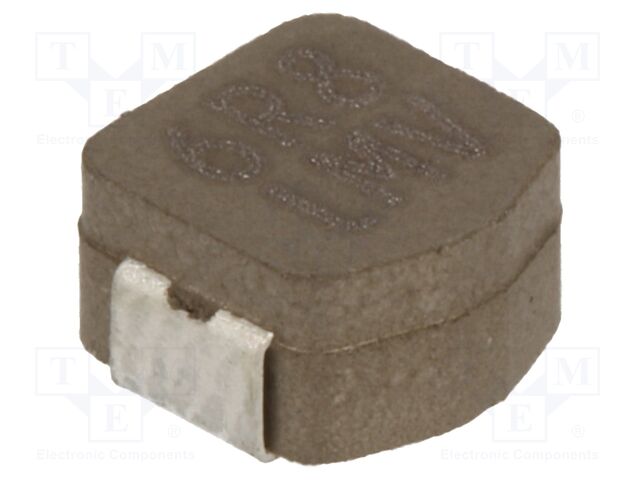

POWER INDUCTOR (SMD), AEC-Q200, 6.8 ΜH, 3.5 A, SHIELDED, 4 A, MPXV SERIES, 2020 [5050 METRIC]
| Part | Inductance Frequency - Test | Material - Core | Current Rating (Amps) | Package / Case | Shielding | DC Resistance (DCR) [Max] | Tolerance | Ratings | Current - Saturation (Isat) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Frequency - Self Resonant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 100 kHz | Metal Composite | 3.5 A | Nonstandard | Shielded | 107.8 mOhm | 20 % | AEC-Q200 | 4 A | 0.118 " | 3 mm | 0.209 " | 5 mm | 0.197 " | 5.3 mm | Surface Mount | 155 C | -55 C | 6.8 µH | 23 MHz |
 KEMET | 100 kHz | Metal Composite | 22 A | Nonstandard | Shielded | 2.8 mOhm | 20 % | AEC-Q200 | 21 A | 0.118 " | 3 mm | 0.209 " | 5 mm | 0.197 " | 5.3 mm | Surface Mount | 155 C | -55 C | 150 nH | 180 MHz |
