2842127 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

4P,2MM,BRK HDR,DRVT,2.8,0.38AU,T

Part	Number of Rows	Number of Positions Loaded	Fastening Type	Number of Positions	Mounting Type	Termination	Voltage Rating	Insulation Height	Insulation Height	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Contact Shape	Insulation Color	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Connector Type	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Contact Finish - Post	Number of Positions

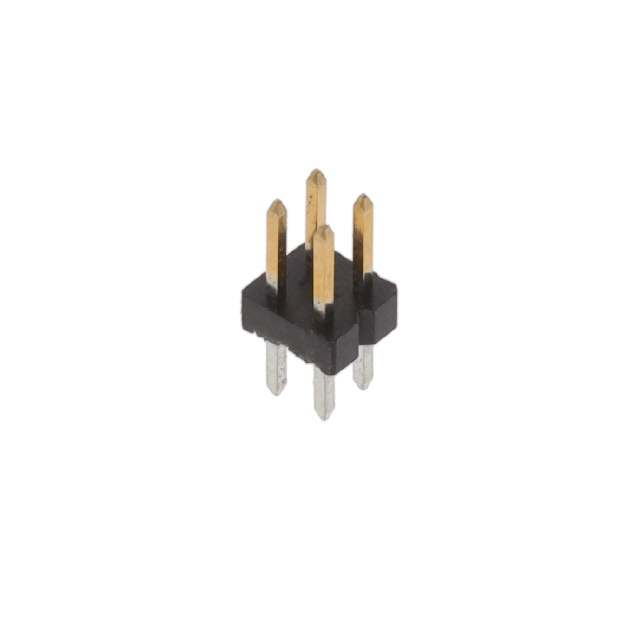

TE Connectivity Raychem Cable Protection 2842127-2	2	All	Push-Pull	4	Through Hole	Solder	125 VAC	1.5 mm	0.059 "	Thermoplastic	15 µin	0.38 µm	UL94 V-0	8.3 mm	0.327 in	Square	Black	Unshrouded	125 °C	-40 °C	Male Pin	Breakaway Header	Copper Alloy	2 çm	78.7 çin	0.11 in	2.79 mm	0.079 in	2 mm	4 mm	0.157 in	Gold	0.079 in	2 mm	2 A	Tin

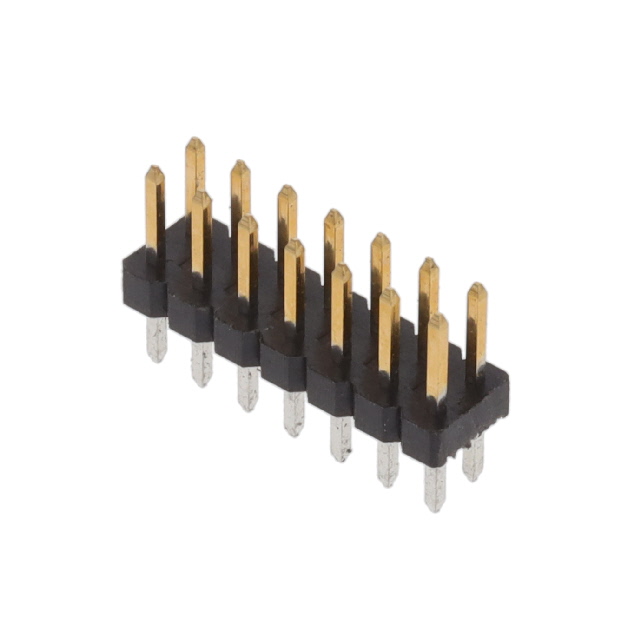

TE Connectivity Raychem Cable Protection 2842127-7	2	All	Push-Pull	14	Through Hole	Solder	125 VAC	1.5 mm	0.059 "	Thermoplastic	15 µin	0.38 µm	UL94 V-0	8.3 mm	0.327 in	Square	Black	Unshrouded	125 °C	-40 °C	Male Pin	Breakaway Header	Copper Alloy	2 çm	78.7 çin	0.11 in	2.79 mm	0.079 in	2 mm	4 mm	0.157 in	Gold	0.079 in	2 mm	2 A	Tin

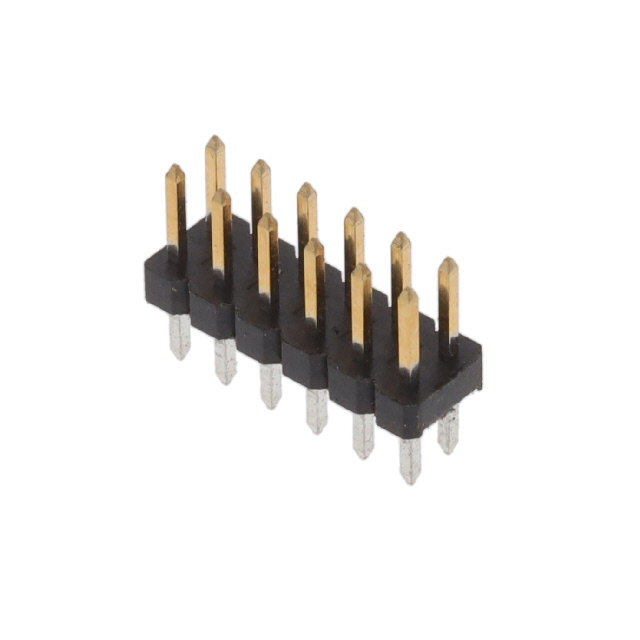

TE Connectivity Raychem Cable Protection 2842127-6	2	All	Push-Pull	12	Through Hole	Solder	125 VAC	1.5 mm	0.059 "	Thermoplastic	15 µin	0.38 µm	UL94 V-0	8.3 mm	0.327 in	Square	Black	Unshrouded	125 °C	-40 °C	Male Pin	Breakaway Header	Copper Alloy	2 çm	78.7 çin	0.11 in	2.79 mm	0.079 in	2 mm	4 mm	0.157 in	Gold	0.079 in	2 mm	2 A	Tin

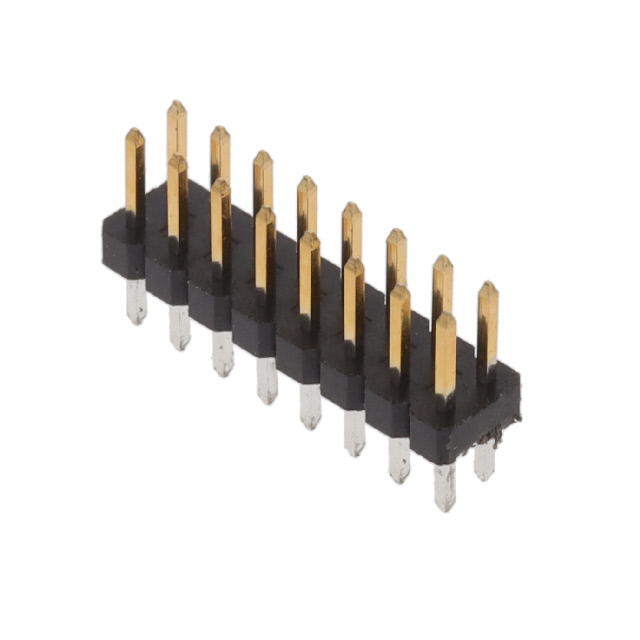

TE Connectivity Raychem Cable Protection 2842127-8	2	All	Push-Pull		Through Hole	Solder	125 VAC	1.5 mm	0.059 "	Thermoplastic	15 µin	0.38 µm	UL94 V-0	8.3 mm	0.327 in	Square	Black	Unshrouded	125 °C	-40 °C	Male Pin	Breakaway Header	Copper Alloy	2 çm	78.7 çin	0.11 in	2.79 mm	0.079 in	2 mm	4 mm	0.157 in	Gold	0.079 in	2 mm	2 A	Tin	16

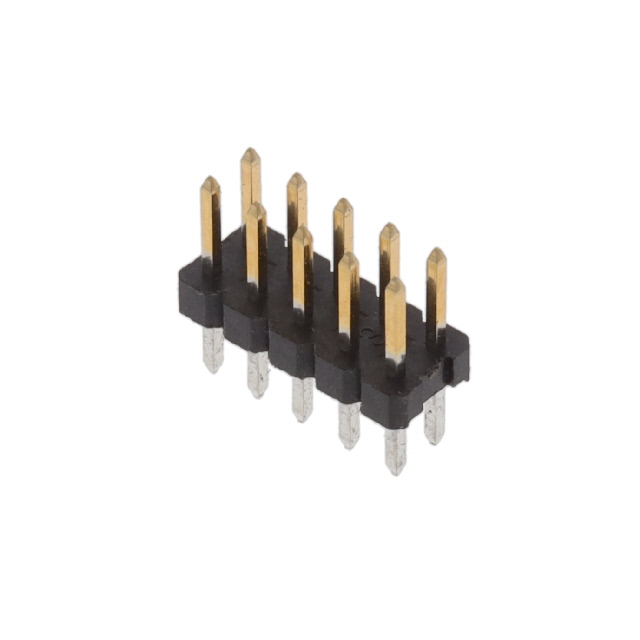

TE Connectivity Raychem Cable Protection 2842127-5	2	All	Push-Pull	10	Through Hole	Solder	125 VAC	1.5 mm	0.059 "	Thermoplastic	15 µin	0.38 µm	UL94 V-0	8.3 mm	0.327 in	Square	Black	Unshrouded	125 °C	-40 °C	Male Pin	Breakaway Header	Copper Alloy	2 çm	78.7 çin	0.11 in	2.79 mm	0.079 in	2 mm	4 mm	0.157 in	Gold	0.079 in	2 mm	2 A	Tin

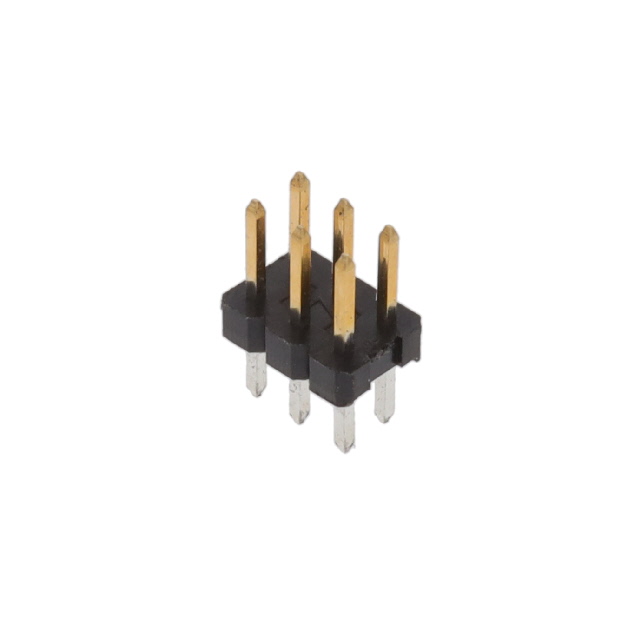

TE Connectivity Raychem Cable Protection 2842127-3	2	All	Push-Pull	6	Through Hole	Solder	125 VAC	1.5 mm	0.059 "	Thermoplastic	15 µin	0.38 µm	UL94 V-0	8.3 mm	0.327 in	Square	Black	Unshrouded	125 °C	-40 °C	Male Pin	Breakaway Header	Copper Alloy	2 çm	78.7 çin	0.11 in	2.79 mm	0.079 in	2 mm	4 mm	0.157 in	Gold	0.079 in	2 mm	2 A	Tin
