MMBT2222 Series

Catalog

TRANS NPN 40V 1A SOT23-3

Part	Current - Collector Cutoff (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Power - Max [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]	Transistor Type	Mounting Type	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Frequency - Transition

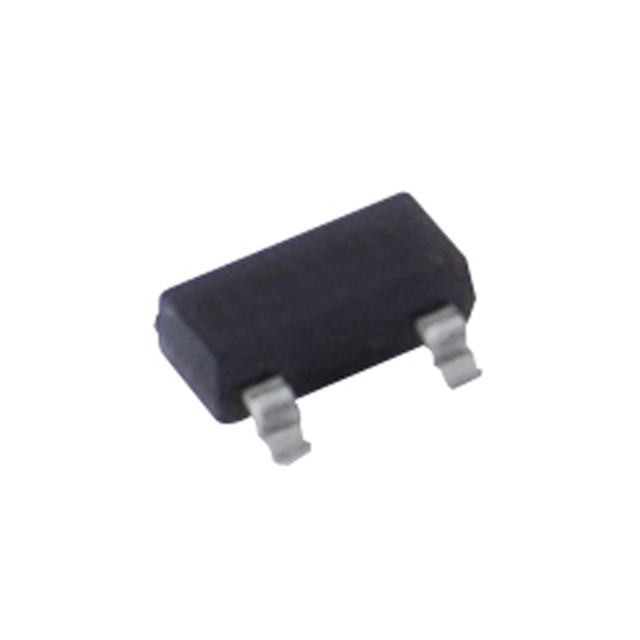

NTE Electronics, Inc MMBT2222A	10 nA	100 hFE	1 V	350 mW	SC-59 SOT-23-3 TO-236-3	150 °C	-55 °C	600 mA	NPN	Surface Mount	SOT-23-3	40 V	300 MHz
