TY Series

Catalog

TERM BLOCK PLUG 24POS 5MM

Part	Number of Positions	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Number of Levels	Plug Wire Entry	Torque - Screw	Torque - Screw	Screw Size	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Material Flammability Rating	Current - UL	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Mating Finish	Contact Material	Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Housing Material	Mounting Type	Positions Per Level
Amphenol Anytek TY2401000000G	24	5 mm	0.197 in	0.492 in	12.5 mm	1	90 °	0.4 Nm	3.5 Lb-In	M2.6	26 AWG	14 AWG	0.2 mm²	2.5 mm²	Screw - Leaf Spring Wire Guard	UL94 V-0	10 A	7 mm	6 mm	Tin	Phosphor Bronze	Plug for Unshrouded Header	Black	-40 °C	115 °C	300 V	Thermoplastic	Free Hanging (In-Line)
Amphenol Anytek TY1701000000G		5 mm	0.197 in	0.492 in	12.5 mm	1	90 °	0.4 Nm	3.5 Lb-In	M2.6	26 AWG	14 AWG	0.2 mm²	2.5 mm²	Screw - Leaf Spring Wire Guard	UL94 V-0	10 A	7 mm	6 mm	Tin	Phosphor Bronze	Plug for Unshrouded Header	Black	-40 °C	115 °C	300 V	Thermoplastic	Free Hanging (In-Line)	17
Amphenol Anytek TY1101000000G	11	5 mm	0.197 in	0.492 in	12.5 mm	1	90 °	0.4 Nm	3.5 Lb-In	M2.6	26 AWG	14 AWG	0.2 mm²	2.5 mm²	Screw - Leaf Spring Wire Guard	UL94 V-0	10 A	7 mm	6 mm	Tin	Phosphor Bronze	Plug for Unshrouded Header	Black	-40 °C	115 °C	300 V	Thermoplastic	Free Hanging (In-Line)	11
Amphenol Anytek TY0701000000G	7	5 mm	0.197 in	0.492 in	12.5 mm	1	90 °	0.4 Nm	3.5 Lb-In	M2.6	26 AWG	14 AWG	0.2 mm²	2.5 mm²	Screw - Leaf Spring Wire Guard	UL94 V-0	10 A	7 mm	6 mm	Tin	Phosphor Bronze	Plug for Unshrouded Header	Black	-40 °C	115 °C	300 V	Thermoplastic	Free Hanging (In-Line)	7
Amphenol Anytek TY0501000000G		5 mm	0.197 in	0.492 in	12.5 mm	1	90 °	0.4 Nm	3.5 Lb-In	M2.6	26 AWG	14 AWG	0.2 mm²	2.5 mm²	Screw - Leaf Spring Wire Guard	UL94 V-0	10 A	7 mm	6 mm	Tin	Phosphor Bronze	Plug for Unshrouded Header	Black	-40 °C	115 °C	300 V	Thermoplastic	Free Hanging (In-Line)	5

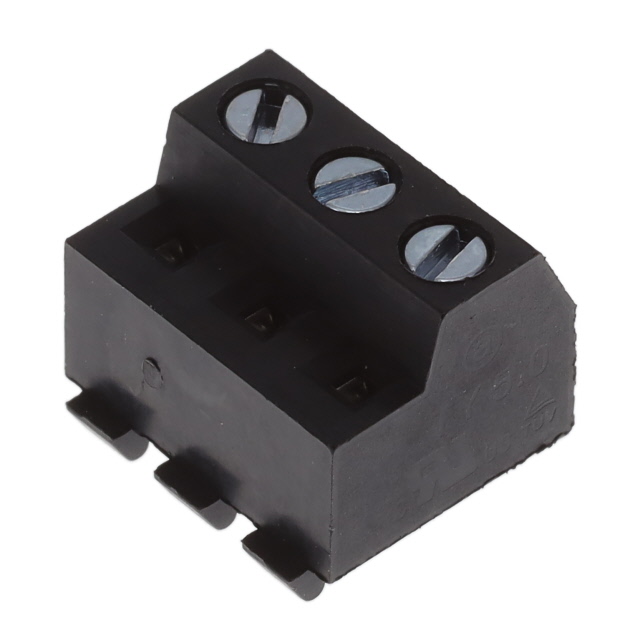

Amphenol Anytek TY0301000000G		5 mm	0.197 in	0.492 in	12.5 mm	1	90 °	0.4 Nm	3.5 Lb-In	M2.6	26 AWG	14 AWG	0.2 mm²	2.5 mm²	Screw - Leaf Spring Wire Guard	UL94 V-0	10 A	7 mm	6 mm	Tin	Phosphor Bronze	Plug for Unshrouded Header	Black	-40 °C	115 °C	300 V	Thermoplastic	Free Hanging (In-Line)	3
