3339 Series

Catalog

TRIMMER RESISTORS - THROUGH HOLE 500OHM 5/16" RND 4TURN CERMET

Part	Resistive Material	Number of Turns	Mounting Type	Termination Style	Adjustment Type	Resistance	Temperature Coefficient	Tolerance	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]

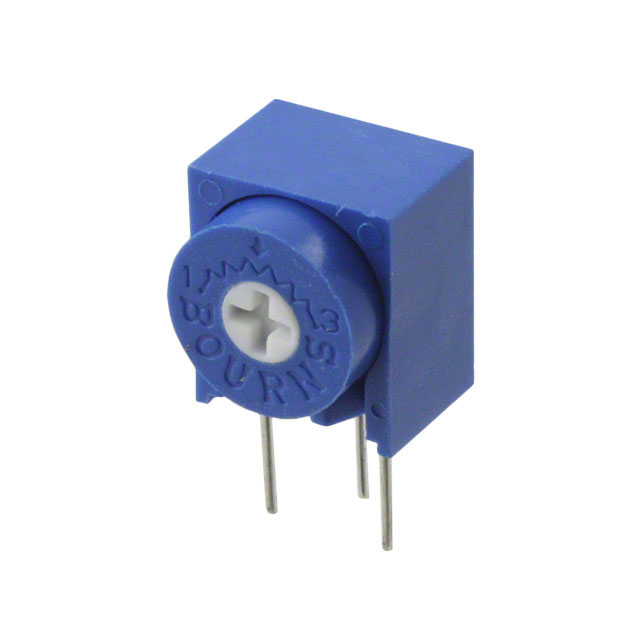

Bourns Inc. 3339S-1-501	Cermet	4	Through Hole	PC Pins	Side Adjustment	0.5 kOhms	100 ppm/°C	10 %	0.5 W	0.5 W	0.32 "	0.375 in	8.13 mm	9.53 mm
Bourns Inc. 3339W-1-102LF	Cermet	4	Through Hole	PC Pins	Side Adjustment	1000 Ohms	100 ppm/°C	10 %	0.5 W	0.5 W	0.32 "	0.375 in	8.13 mm	9.53 mm
Bourns Inc. 3339S-1-200LF	Cermet	4	Through Hole	PC Pins	Side Adjustment	20 Ohms	100 ppm/°C	10 %	0.5 W	0.5 W	0.32 "	0.375 in	8.13 mm	9.53 mm
Bourns Inc. 3339H-1-503LF	Cermet	4	Through Hole	PC Pins	Top Adjustment	50000 Ohms	100 ppm/°C	10 %	0.5 W	0.5 W					7.62 mm	Round	0.3 in
Bourns Inc. 3339S-1-501LF	Cermet	4	Through Hole	PC Pins	Side Adjustment	0.5 kOhms	100 ppm/°C	10 %	0.5 W	0.5 W	0.32 "	0.375 in	8.13 mm	9.53 mm
Bourns Inc. 3339P-1-474	Cermet	4	Through Hole	PC Pins	Top Adjustment	470 kOhms	100 ppm/°C	10 %	0.5 W	0.5 W					7.62 mm	Round	0.3 in
Bourns Inc. 3339P-1-102	Cermet	4	Through Hole	PC Pins	Top Adjustment	1000 Ohms	100 ppm/°C	10 %	0.5 W	0.5 W					7.62 mm	Round	0.3 in
Bourns Inc. 3339S-1-204LF	Cermet	4	Through Hole	PC Pins	Side Adjustment	200000 Ohms	100 ppm/°C	10 %	0.5 W	0.5 W	0.32 "	0.375 in	8.13 mm	9.53 mm
Bourns Inc. 3339P-1-254	Cermet	4	Through Hole	PC Pins	Top Adjustment	250000 Ohms	100 ppm/°C	10 %	0.5 W	0.5 W					7.62 mm	Round	0.3 in
Bourns Inc. 3339S-1-201LF	Cermet	4	Through Hole	PC Pins	Side Adjustment	200 Ohms	100 ppm/°C	10 %	0.5 W	0.5 W	0.32 "	0.375 in	8.13 mm	9.53 mm
