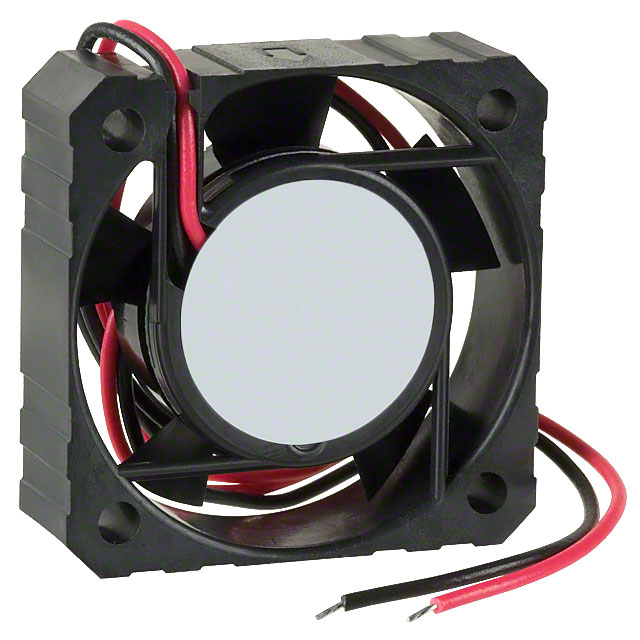

F412R Series

Manufacturer: Nidec Components Corporation

Catalog

FAN AXIAL 41X12.2MM 12VDC WIRE

Part	Weight	Weight	Voltage - Rated	Fan Type	Air Flow	Air Flow	Static Pressure	Static Pressure	Termination	Voltage Range [Min]	Voltage Range [Max]	Width [y]	RPM	Material - Frame	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Noise	Current Rating (Amps)	Material - Blade	Bearing Type	Air Flow
Nidec Components Corporation F412R-12LB	0.044 lb	19.96 g	12 VDC	Tubeaxial	3.9 CFM	0.109 m³/min	0.059 in H2O	14.7 Pa	2 Wire Leads	10.2 VDC	13.8 VDC	12.2 mm	4200 RPM	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	0.48 W	-10 °C	-10 °C	60 °C	60 °C	16 dB	40 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	1 Ball/1 Sleeve
Nidec Components Corporation F412R-12MB	0.044 lb	19.96 g	12 VDC	Tubeaxial	0.148 m³/min		0.102 in H2O	25.5 Pa	2 Wire Leads	10.2 VDC	13.8 VDC	12.2 mm	5400 RPM	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	720 mW	-10 °C	-10 °C	60 °C	60 °C	23 dB(A)	60 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	1 Ball/1 Sleeve	5.3 CFM
Nidec Components Corporation F412R-05MB	0.044 lb	19.96 g	5 V	Tubeaxial	0.148 m³/min		0.102 in H2O	25.5 Pa	2 Wire Leads	4.5 V	5.7 VDC	12.2 mm	5400 RPM	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	0.5 W	-10 °C	-10 °C	60 °C	60 °C	23 dB(A)	100 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	1 Ball/1 Sleeve	5.3 CFM
Nidec Components Corporation F412RS-12LB	0.044 lb	19.96 g	12 VDC	Tubeaxial	0.118 m³/min		0.06 in H2O	14.9 Pa	3 Wire Leads	10.2 VDC	13.8 VDC	12.2 mm	4200 RPM	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	0.48 W	-10 °C	-10 °C	60 °C	60 °C	18 dB(A)	60 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	1 Ball/1 Sleeve	4.2 CFM
Nidec Components Corporation F412R-05LB	0.044 lb	19.96 g	5 V	Tubeaxial	0.109 mł/min		0.059 in H2O	14.7 Pa	2 Wire Leads	4.5 V	5.7 VDC	12.2 mm	4200 RPM	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	0.4 W	-10 °C	-10 °C	60 °C	60 °C	16 dB		Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	1 Ball/1 Sleeve	3.9 CFM
Nidec Components Corporation F412R-24MB	0.044 lb	19.96 g	24 VDC	Tubeaxial	0.148 m³/min		0.102 in H2O	25.5 Pa	2 Wire Leads	20.4 VDC	26.4 VDC	12.2 mm	5400 RPM	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)		-10 °C	-10 °C	60 °C	60 °C	23 dB(A)	40 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	1 Ball/1 Sleeve	5.3 CFM
