TPSM82821 Series

Catalog

5.5-V INPUT, 1-A STEP-DOWN MODULE WITH INTEGRATED INDUCTOR IN 2 X 2.5 X 1.1-MM ΜSIP PACKAGE

Part	Voltage - Input (Min) [Min]	Package / Case	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Features	Mounting Type	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Regulator Topology	Contents	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Utilized IC / Part	Voltage - Output	Current - Output	Frequency - Switching
Texas Instruments TPSM82821SILR	2.4 V	10-LDFN Exposed Pad Module	4 V	0.6 V	1.1 mm	2 mm	0.1 "	2.5 mm	0.08 in	0.04 in	1 A	3	10-uSIP	3.8	Adjustable Output	Surface Mount	5.5 V	1	ITE (Commercial)	Non-Isolated PoL Module	95 %	125 °C	-40 C

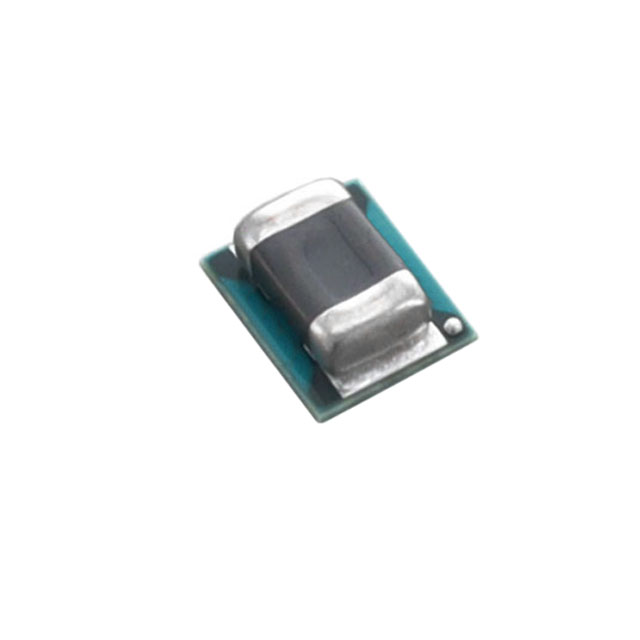

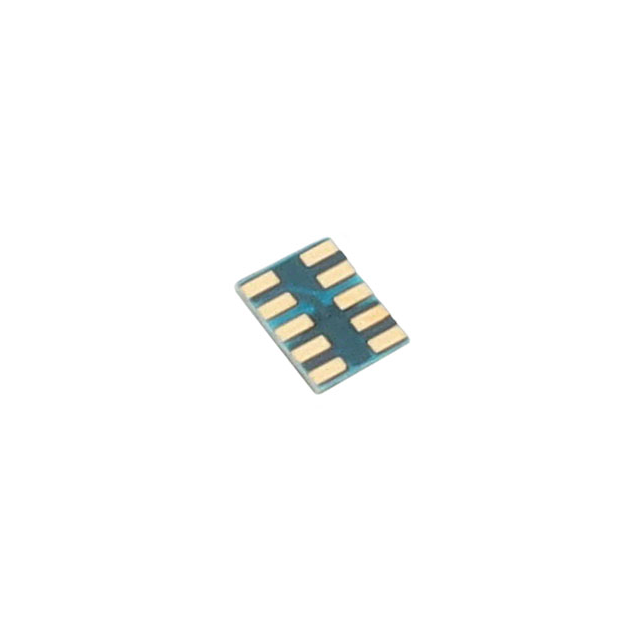

Texas Instruments TPSM828211SILR	2.4 V	10-TFDFN Module			1.1 mm	2 mm	0.1 "	2.5 mm	0.08 in	0.04 in	1 A	2	10-uSIP	2.5	Remote On/Off	Surface Mount	5.5 V	1	ITE (Commercial)	Non-Isolated PoL Module	95 %	125 °C	-40 C	1.2 V

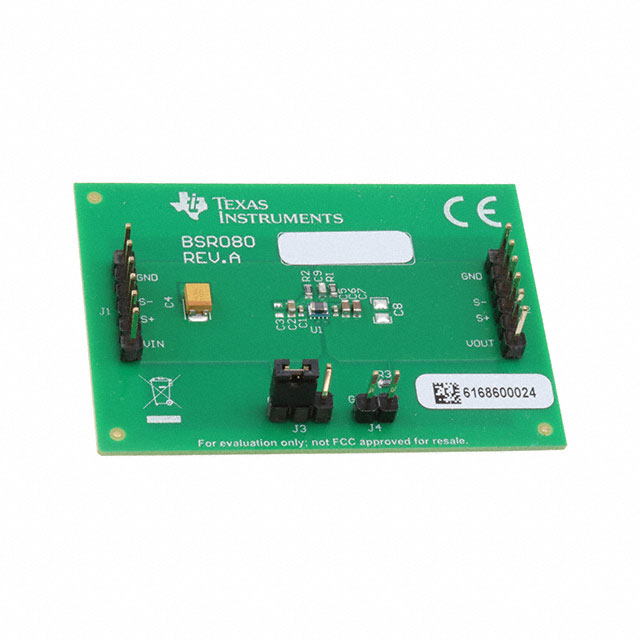

Texas Instruments TPSM82821EVM-080																									1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	Buck	Board(s)	2.4 V	5.5 V	DC/DC Step Down	TPSM82821	1.8 V	1 A	4 MHz
Texas Instruments TPSM828212SILR	2.4 V	10-TFDFN Module			1.1 mm	2 mm	0.1 "	2.5 mm	0.08 in	0.04 in	1 A	2	10-uSIP	2.5	Remote On/Off	Surface Mount	5.5 V	1	ITE (Commercial)	Non-Isolated PoL Module	95 %	125 °C	-40 C	1.8 V
Texas Instruments TPSM828213SILR	2.4 V	10-TFDFN Module			1.1 mm	2 mm	0.1 "	2.5 mm	0.08 in	0.04 in	1 A	2	10-uSIP	2.5	Remote On/Off	Surface Mount	5.5 V	1	ITE (Commercial)	Non-Isolated PoL Module	95 %	125 °C	-40 C	2.5 V
Texas Instruments TPSM828214SILR	2.4 V	10-TFDFN Module			1.1 mm	2 mm	0.1 "	2.5 mm	0.08 in	0.04 in	1 A	2	10-uSIP	2.5	Remote On/Off	Surface Mount	5.5 V	1	ITE (Commercial)	Non-Isolated PoL Module	95 %	125 °C	-40 C	3.3 V
