748826 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

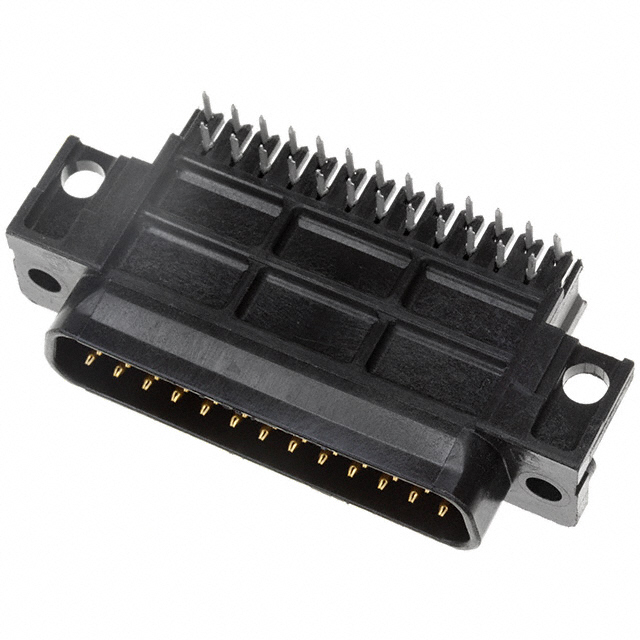

CONN D-SUB PLUG 25POS R/A SLDR
| Part | Contact Material | Color | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Number of Positions | Flange Feature | Termination | Material Flammability Rating | Connector Type | Connector Style | Current Rating (Amps) | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish | Backset Spacing | Backset Spacing | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | Black | 125 VDC | -55 C | 105 ░C | 2 | 25 | Housing/Shell (Unthreaded) | Solder | UL94 V-0 | Plug Male Pins | D-Sub | 6 A | Right Angle Through Hole | 30 Áin | 0.76 Ám | Signal | B DB | 3 | Gold | 0.59 in | 14.99 mm | |
 TE Connectivity AMP Connectors | Brass | Black | 125 VDC | -55 C | 105 ░C | 2 | 25 | Housing/Shell (Unthreaded) | Solder | UL94 V-0 | Plug Male Pins | D-Sub | 6 A | Right Angle Through Hole | Signal | B DB | 3 | Gold | 0.59 in | 14.99 mm | Flash |
