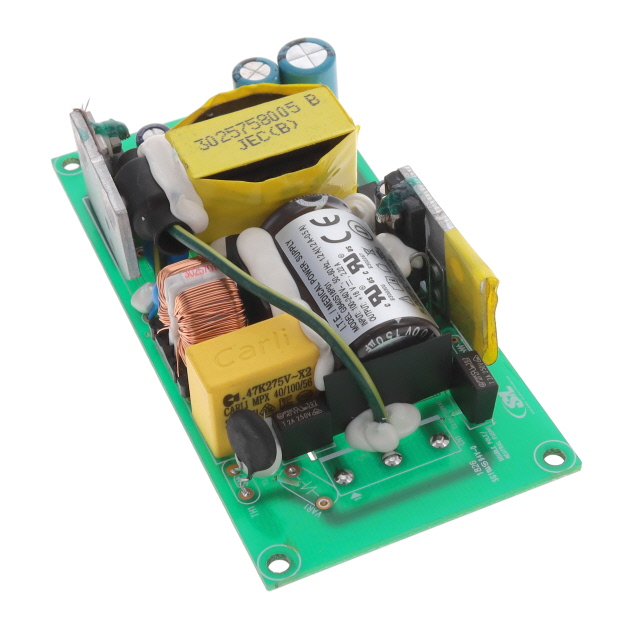

GB40S18 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 18V 40W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Standard Number | Approval Agency | Voltage - Isolation | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Mounting Type | Power (Watts) | Number of Outputs | Type | Features | Applications | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 70 °C | -25 °C | 2.22 A | 101.6 mm | 4 " | 2 in | 0.81 in | 20.6 mm | 50.8 mm | 60601-1; 62368-1 | CE cURus DEMKO | 4000 V | 18 V | 264 VAC | 90 VAC | 88 % | Chassis Mount | 40 W | 1 | Open Frame | Universal Input | ITE (Commercial) Medical | |
 SL POWER / Advanced Energy | 70 °C | -25 °C | 2.22 A | 101.6 mm | 4 " | 1.9 " | 1 in | 25.4 mm | 48.3 mm | CE cURus UL | 4000 V | 18 V | 240 VAC | 100 VAC | 88 % | Chassis Mount | 40 W | 1 | Open Frame | Universal Input | ITE (Commercial) Medical |
