ACPDQC5 Series

Catalog

TVS DIODE 5VWM 19V 0402C/SOD923F

Part	Power - Peak Pulse	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Bidirectional Channels [custom]	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Qualification	Package / Case	Voltage - Reverse Standoff (Typ)	Capacitance @ Frequency	Type	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp
Comchip Technology ACPDQC5V0CSP-IPHF	38 W	150 °C	-55 °C	Automotive	1	Surface Mount	19 V	0402C SOD-923F	2 A	AEC-Q101	0402 (1006 Metric)	5 V	0.15 pF	Zener	7 V
Comchip Technology ACPDQC5V0U-HF	180 W			Automotive		Surface Mount	12 V	0402C SOD-923F	15 A	AEC-Q101	SOD-923	5 V	130 pF	Zener	6 V	1
Comchip Technology ACPDQC5V0R-HF		150 °C	-40 °C	Automotive	1	Surface Mount	12 V	0402C SOD-923F	11 A	AEC-Q101	0402 (1006 Metric)	5 V	24 pF	Zener	5.6 V
Comchip Technology ACPDQC5V0USP-HF	50 W			Automotive		Surface Mount	20 V	0402C SOD-923F	2.5 A	AEC-Q101	SOD-923	5 V	0.6 pF	Zener	5.4 V	1

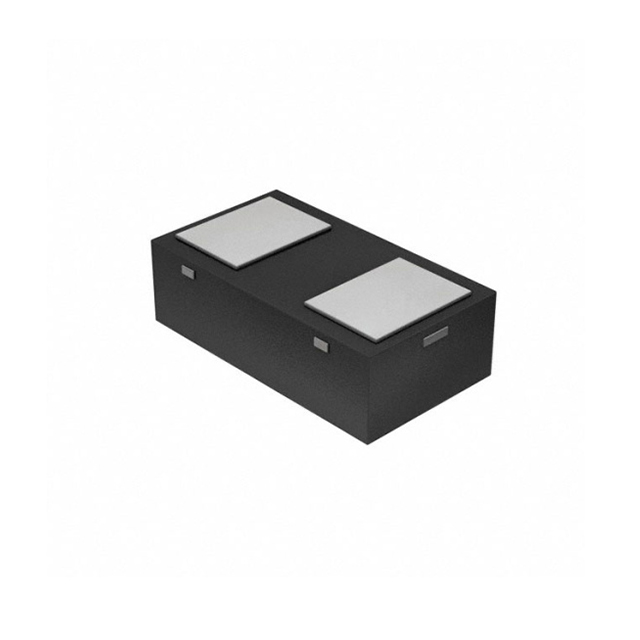

Comchip Technology ACPDQC5V0ESPC-HF	100 W	125 °C	-40 C	Automotive	1	Surface Mount		0402C SOD-923F	4 A	AEC-Q101	0402 (1006 Metric)	5 V	0.28 pF 1 MHz	Zener	7 V		35 V
Comchip Technology ACPDQC5V0-HF	75 W			Automotive	1	Surface Mount	15 V	0402C SOD-923F	5 A	AEC-Q101	SOD-923	5 V		Zener	5.1 V
