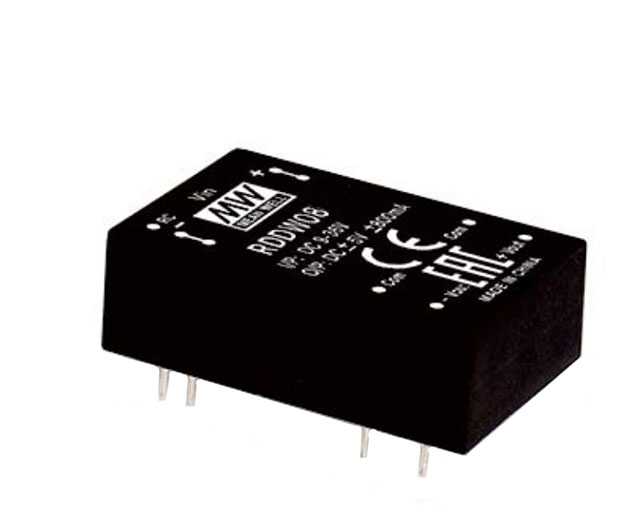

RDDW08F Series

Catalog

DC/DC CONVERTER

Part	Features	Type	Voltage - Isolation	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Current - Output (Max)	Current - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Supplier Device Package	Package / Case	Mounting Type	Number of Outputs	Voltage - Output 2	Voltage - Input (Max) [Max]	Standard Number	Applications	Voltage - Output 1	Efficiency
MEAN WELL USA Inc. RDDW08F-05	Remote On/Off	Isolated Module	1.5 kV	CE EAC	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	9 V	800 mA	800 mA	-40 °C	85 °C	8 W	24-DIP	24-DIP Module 9 Leads	Through Hole	2	-5 V	36 V	50155	Railway	5 V
MEAN WELL USA Inc. RDDW08F-12	Remote On/Off	Isolated Module	1.5 kV	CE EAC	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	9 V	333 mA		-40 °C	85 °C	8 W	24-DIP	24-DIP Module 9 Leads	Through Hole	2	-12 V	36 V	50155	Railway	12 V	85 %
