5972301 Series

Manufacturer: DIALIGHT

Catalog

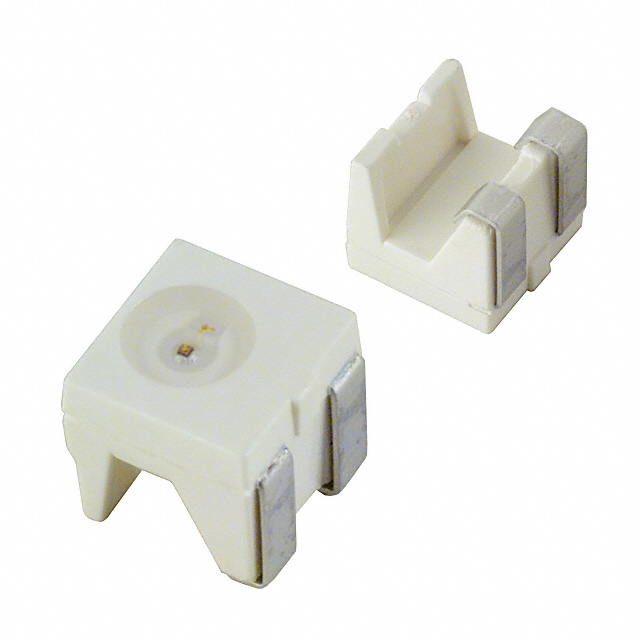

LED GREEN CLEAR SMD R/A

Part	Height (Max) [Max] [z]	Configuration	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Color	Package / Case	Viewing Angle	Wavelength - Dominant	Current - Test	Millicandela Rating	Supplier Device Package	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Mounting Type	Wavelength - Peak [custom]	Lens Color
DIALIGHT 5972301202F	4.2 mm	Standard	2.4 mm Dia	1.8 V	Green	2-SMD Boomerang	120 °	570 nm	10 mA	42 mcd	SMD	Clear	4 mm	3.6 mm	Round with Flat Top	Right Angle Surface Mount	572 nm	Colorless
DIALIGHT 5972301824F	4.2 mm	Standard	2.4 mm Dia	2 V	Green	2-SMD Boomerang	120 °	570 nm	20 mA	78.5 mcd	1616	Clear	4 mm	3.6 mm	Round with Flat Top	Right Angle Surface Mount	572 nm	Colorless
DIALIGHT 5972301823F	4.2 mm	Standard	2.4 mm Dia	2 V	Green	2-SMD Boomerang	120 °	570 nm	20 mA	78.5 mcd	1616	Clear	4 mm	3.6 mm	Round with Flat Top	Right Angle Surface Mount	572 nm	Colorless
