MP2632 Series

Catalog

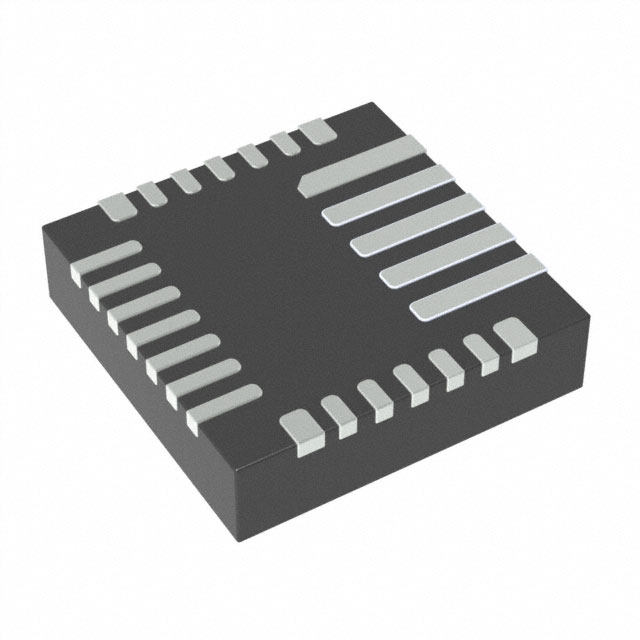

IC BATT CHG LI-ION 1CELL 26QFN

Part	Battery Pack Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Number of Cells	Programmable Features	Voltage - Supply (Max) [Max]	Interface	Mounting Type	Battery Chemistry [custom]	Current - Charging	Package / Case	Charge Current - Max [Max]	Fault Protection
Monolithic Power Systems Inc. MP2632GR-Z	4.45 V	-40 C	125 °C	1	Timer	6 V	USB	Surface Mount	Lithium Ion/Polymer	Constant - Programmable	26-PowerVFQFN	3 A	Over Current Over Temperature Over Voltage Short Circuit
Monolithic Power Systems Inc. MP2632GR-P	4.45 V	-40 C	125 °C	1	Timer	6 V	USB	Surface Mount	Lithium Ion/Polymer	Constant - Programmable	26-PowerVFQFN	3 A	Over Current Over Temperature Over Voltage Short Circuit
Monolithic Power Systems Inc. MP2632BGR-P	4.45 V	-40 °C	125 °C	1	Current Timer Voltage	6 V	USB	Surface Mount	Lithium Ion/Polymer	Constant - Programmable	26-PowerVFQFN	3 A	Over Current Over Temperature Over Voltage Short Circuit
Monolithic Power Systems Inc. MP2632BGR-Z	4.45 V	-40 °C	125 °C	1	Current Timer Voltage	6 V	USB	Surface Mount	Lithium Ion/Polymer	Constant - Programmable	26-PowerVFQFN	3 A	Over Current Over Temperature Over Voltage Short Circuit
