ALCOSWITCH DIP TDS Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Circuit	Electrical Life	Length	Length	Mechanical Life	Body Material	Current Rating (Amps)	Mounting Type	Number of Positions	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Contact Material	Pitch	Pitch	Actuator Type	Actuator Level	Termination Style	Voltage Rating	Length [x]	Length [x]

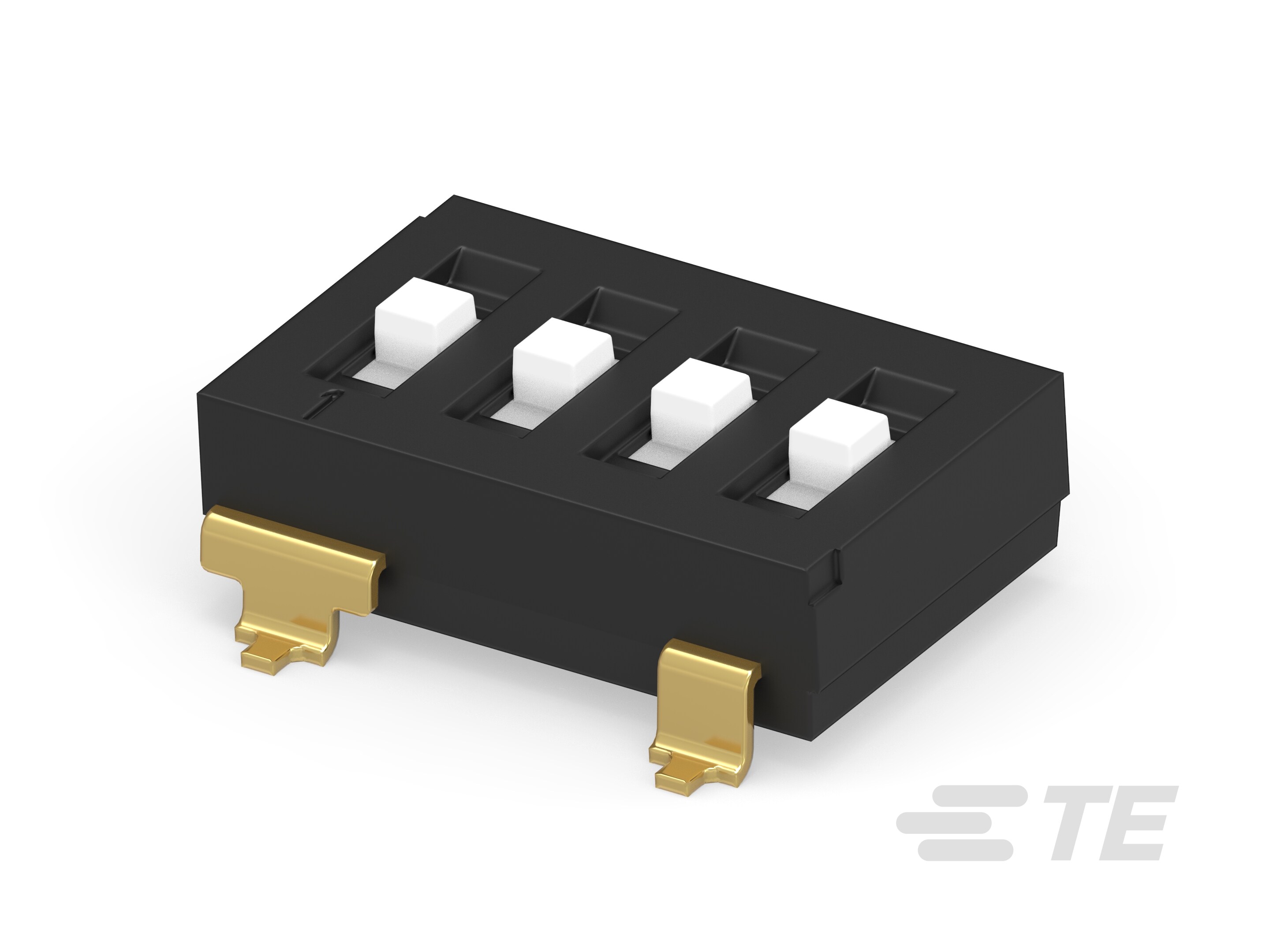

TE Connectivity AMP Connectors TDS04SGNNTR04	SPDT SPST	2000 Steps	0.446 in	11.33 mm	2000 Cycles	Polyamide (PA) Nylon	25 mA	Surface Mount	4	Gold	85 °C	-20 ░C	0.161 in	4.1 mm	Copper Alloy	2.54 mm	0.1 "	Slide (Standard)	Raised	Gull Wing	24 VDC

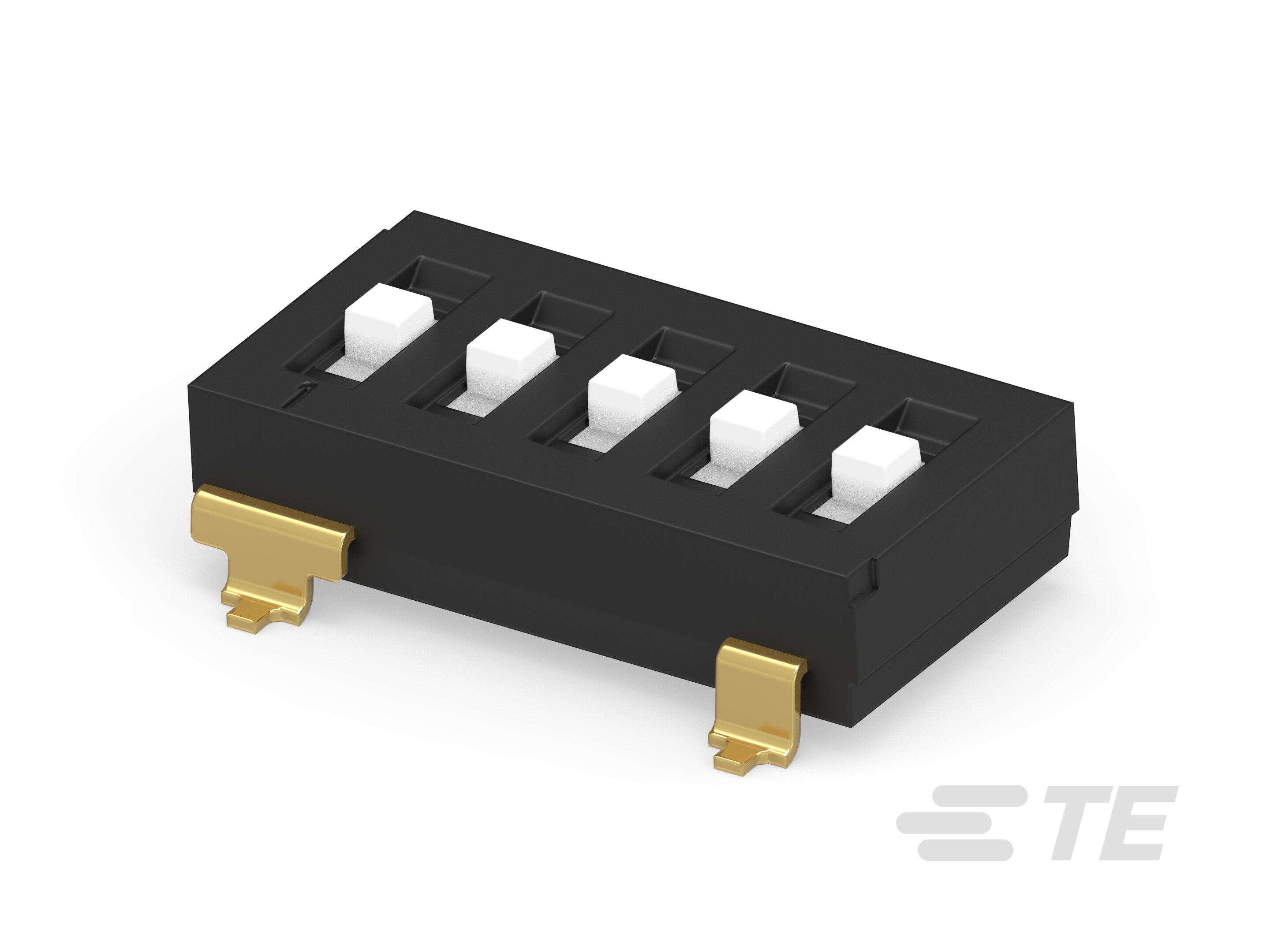

TE Connectivity AMP Connectors TDS05SGRSTR04	SPDT SPST	2000 Steps			2000 Cycles	Polyamide (PA) Nylon	25 mA	Surface Mount	5	Gold	85 °C	-20 ░C	0.146 in	3.7 mm	Copper Alloy	2.54 mm	0.1 "	Slide (Standard)	Flush Recessed	Gull Wing	24 VDC	0.546 in	13.87 mm
TE Connectivity AMP Connectors TDS05SGRSTU04
TE Connectivity AMP Connectors TDS08SGRSTU04
TE Connectivity AMP Connectors TDS05SGNNTR04
TE Connectivity AMP Connectors TDS04SGRNTU04
TE Connectivity AMP Connectors TDS04SGRNTR04
TE Connectivity AMP Connectors TDS05SGNNTR04
TE Connectivity AMP Connectors TDS04SGNNTU04	SPDT SPST	2000 Steps	0.446 in	11.33 mm	2000 Cycles	Polyamide (PA) Nylon	25 mA	Surface Mount	4	Gold	85 °C	-20 ░C	0.161 in	4.1 mm	Copper Alloy	2.54 mm	0.1 "	Slide (Standard)	Raised	Gull Wing	24 VDC
TE Connectivity AMP Connectors TDS08SGRSTR04	SPDT SPST	2000 Steps	0.846 in	21.49 mm	2000 Cycles	Polyamide (PA) Nylon	25 mA	Surface Mount	8	Gold	85 °C	-20 ░C	0.146 in	3.7 mm	Copper Alloy	2.54 mm	0.1 "	Slide (Standard)	Flush Recessed	Gull Wing	24 VDC
