302-R10 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

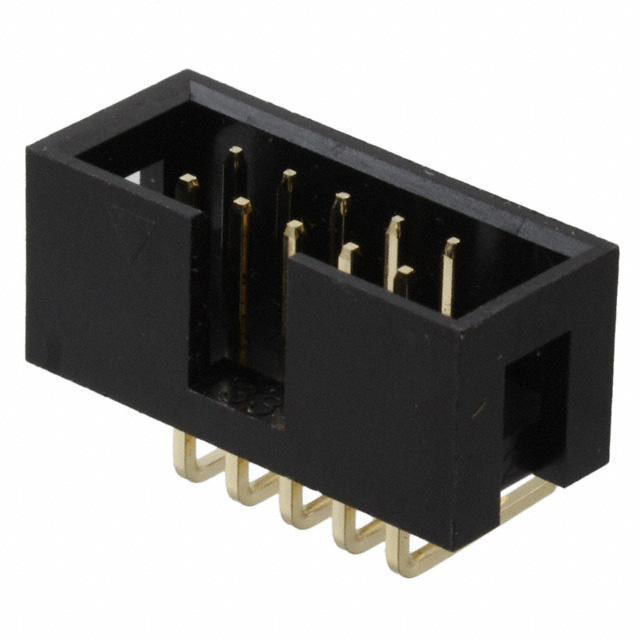

CONN HEADER R/A 10POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Style | Number of Positions Loaded | Contact Finish - Post | Insulation Color | Current Rating (Amps) | Contact Finish - Mating | Number of Rows [custom] | Contact Shape | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post [x] | Contact Length - Post [x] | Contact Type | Material Flammability Rating | Connector Type | Contact Material | Termination | Insulation Material | Fastening Type | Number of Positions | Mounting Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | Keying Slot | 0.358 " | 9.1 mm | Flash | Board to Cable/Wire | All | Gold | Black | 3 A | Gold | 2 | Square | Shrouded - 4 Wall | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.122 in | 3.1 mm | Male Pin | UL94 V-0 | Header | Brass | Solder | Polyester Glass Filled | Push-Pull | 10 | Right Angle Through Hole | 250 V |
