RFB-1142 Series
Manufacturer: RF Industries
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

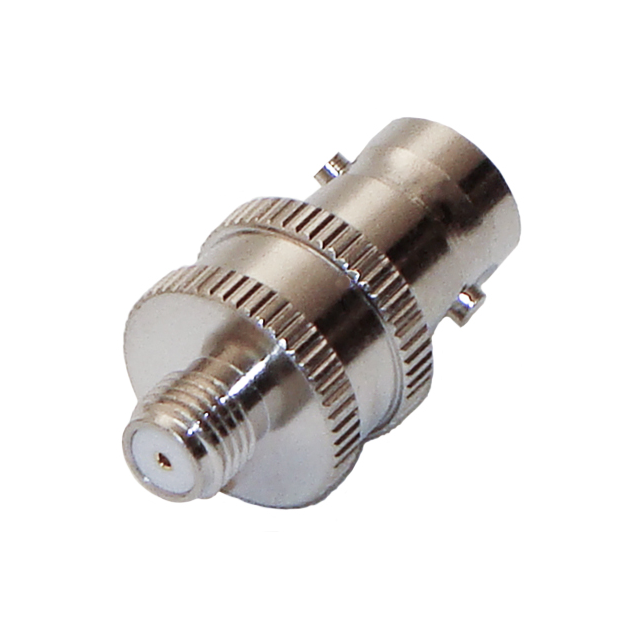

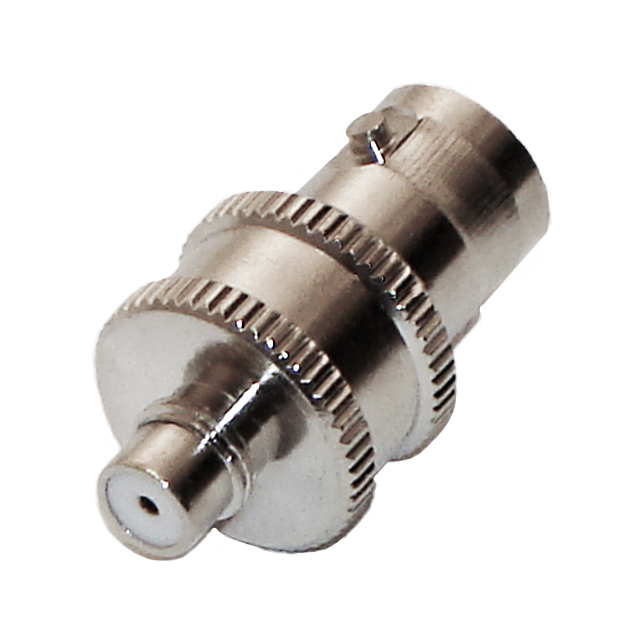

BNC FEMALE-MOTOROLA SMA FEMALE
| Part | Body Material | Center Contact Material | Dielectric Material | Body Finish | Frequency - Max | Style | Center Contact Plating | Mounting Type | Center Gender | Adapter Series | Convert From (Adapter End) | Conversion Type | Impedance | Convert To (Adapter End) Gender | Convert To (Adapter End) Type | Fastening Type | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Brass | Phosphor Bronze | Polytetrafluoroethylene (PTFE) | Nickel | 4 GHz | Straight | Gold | Free Hanging (In-Line) | Female | BNC to SMA | Female Socket SMA Jack | Between Series | 50 Ohm | Female Socket | BNC Jack | Bayonet Lock Threaded | Jack to Jack |
 RF Industries | Brass | Brass | Polytetrafluoroethylene (PTFE) | Nickel | 4 GHz | Straight | Gold | Free Hanging (In-Line) | Female | BNC to SMA | BNC Jack Female Socket | Between Series | 50 Ohm | Female Socket | SMA Jack | Bayonet Lock Threaded | Jack to Jack |
