AFB04512 Series

Catalog

FAN AXIAL 45X10MM 12VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Static Pressure	Static Pressure	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Weight [custom]	Weight [custom]	Power (Watts)	Width [y]	Voltage - Rated	Noise	Termination	Approval Agency	Fan Type	Bearing Type	RPM	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Features

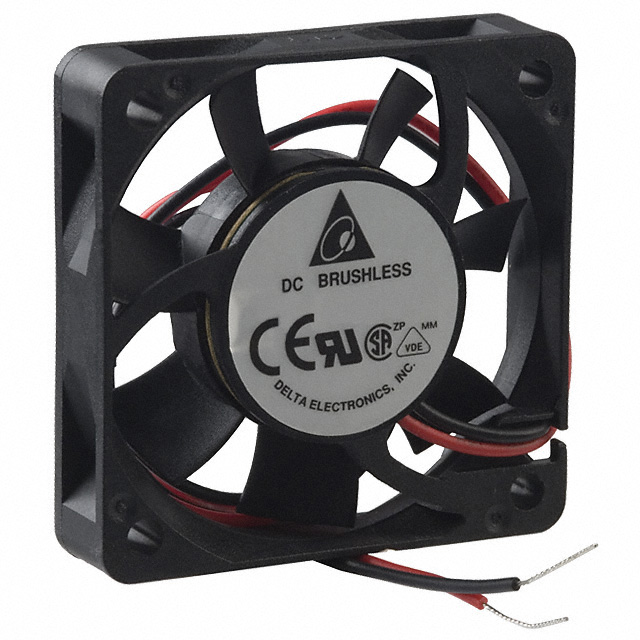

Delta Electronics AFB04512MA	Plastic	110 mA	Plastic	13.8 VDC	7 V	0.277 m³/min	9.9 CFM	31.6 Pa	0.127 in H2O	Square	45 mm	45 mm	15.88 g	0.035 lb	1.32 W	10 mm	12 VDC	30 dB	2 Wire Leads	CE CSA UL VDE	Tubeaxial	Ball	5000 RPM

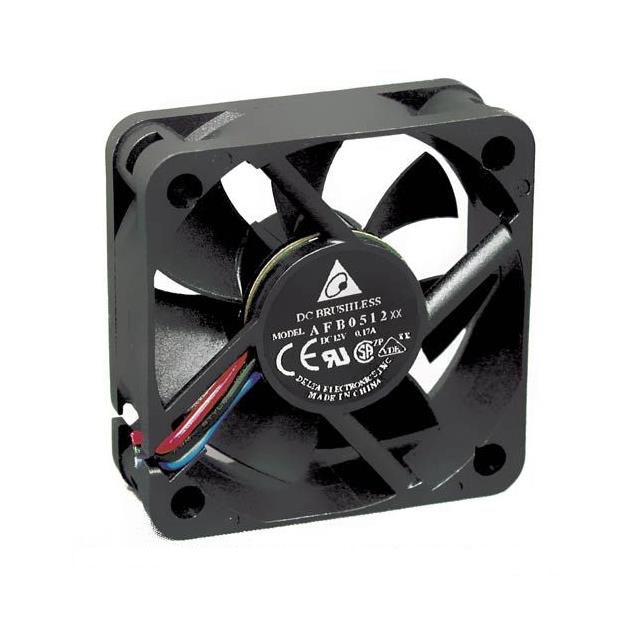

Delta Electronics AFB04512MB	Plastic	100 mA	Plastic	13.8 VDC	5 VDC	0.325 mł/min	11.6 CFM	39.8 Pa	0.16 in H2O	Square	45 mm	45 mm	17.24 g	0.038 lb	1.2 W	15 mm	12 VDC	29 dB(A)	2 Wire Leads	CE CSA UL VDE	Tubeaxial	Ball	5300 RPM	70000 Hrs	70 °C	-10 °C

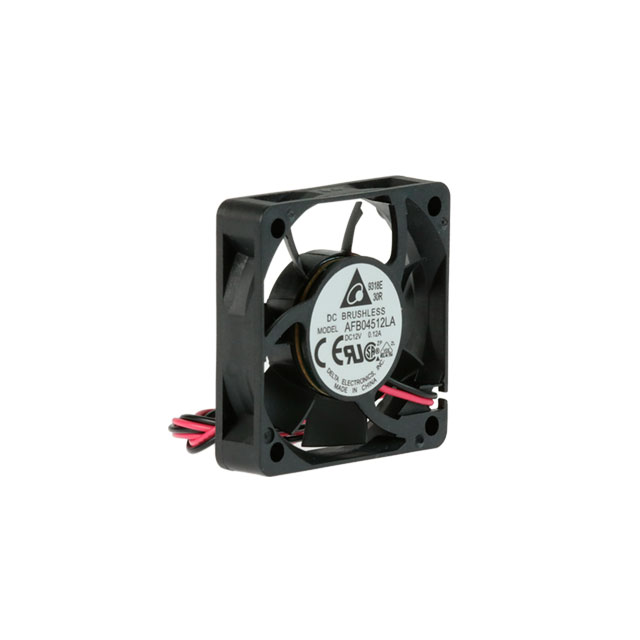

Delta Electronics AFB04512LA	Plastic		Plastic	13.8 VDC	9 V	0.216 m³/min	7.7 CFM	20.1 Pa	0.081 in H2O	Square	45 mm	45 mm	15.88 g	0.035 lb	960 mW	10 mm	12 VDC	24.5 dB(A)	2 Wire Leads	CE CSA UL VDE	Tubeaxial	Ball	4000 RPM

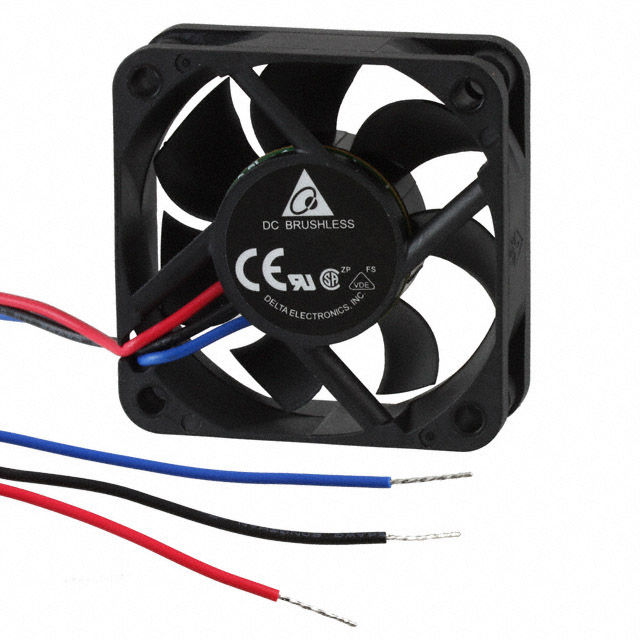

Delta Electronics AFB04512HB-F00	Plastic	140 mA	Plastic	13.8 VDC	5 VDC	0.392 m³/min	14 CFM	55.5 Pa	0.223 in H2O	Square	45 mm	45 mm	17.24 g	0.038 lb	1.68 W	15 mm	12 VDC	33.5 dB(A)	3 Wire Leads	CE CSA UL VDE	Tubeaxial	Ball	6300 RPM	70000 Hrs	70 °C	-10 °C	Locked Rotor Protection Speed Sensor (Tach)

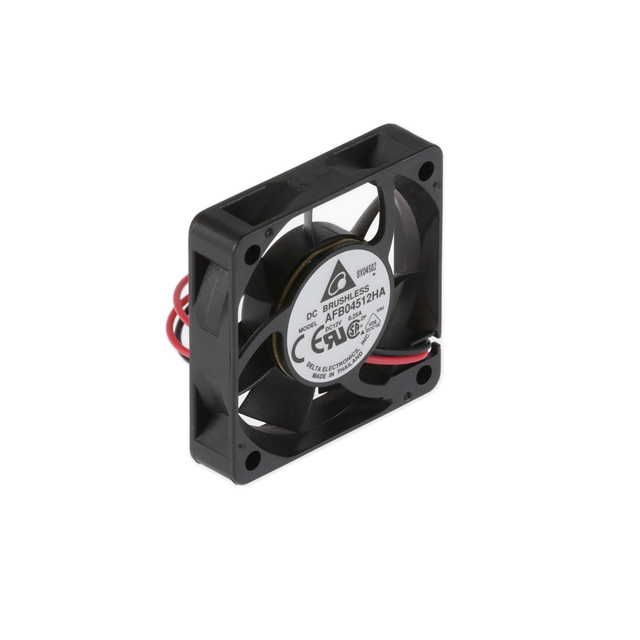

Delta Electronics AFB04512HA	Plastic	0.17 A	Plastic	13.8 VDC	7 V	0.33 mł/min	11.8 CFM	46 Pa	0.184 in H2O	Square	45 mm	45 mm	15.88 g	0.035 lb		10 mm	12 VDC	34.5 dB(A)	2 Wire Leads	CE CSA UL VDE	Tubeaxial	Ball	6000 RPM
