AWG28-64 Series

Catalog

CBL RIBN 64COND 0.05 MLT FOOT

Part	Insulation Resistance	First Conductor Mark	Spool Size [x]	Spool Size [x]	Length	Conductor Material	Ribbon Width [custom]	Ribbon Width [custom]	Jacket (Insulation) Material	Length	Length	Voltage	Jacket Color	Cable Type	Shielding	Wire Gauge	Ribbon Thickness	Ribbon Thickness	Ratings	Length [x]	Length [x]	Pitch	Pitch	Number of Conductors [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature	Operating Temperature [Min]	Operating Temperature [Max]

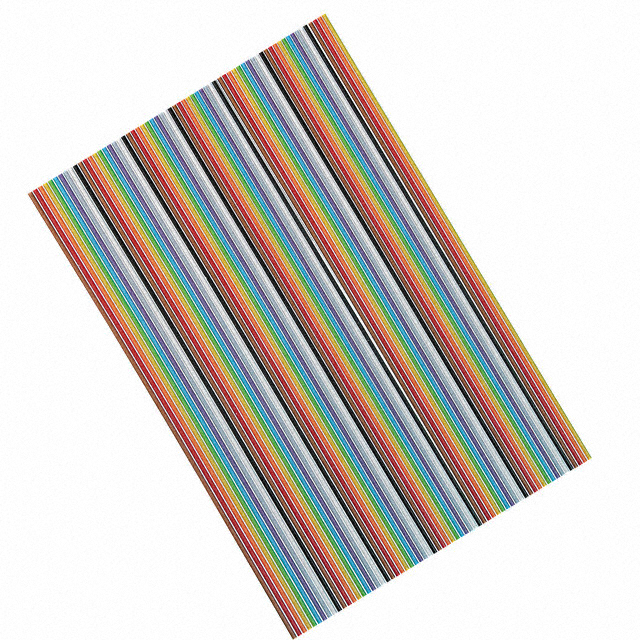

Assmann WSW Components AWG28-64/F/300	100 MOhms	Red	300 ft	91.44 m	Enter Number of Feet in Order Quantity	Copper Tinned	81.28 mm	3.2 in	Poly-Vinyl Chloride (PVC)	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	300 VDC	Multiple	Flat Cable	Unshielded	28 AWG	0.89 mm	0.035 in	UL Style 2651	50 ft	15.24 m	0.05 in	1.27 mm	64	36 AWG	7 Strands	105 C

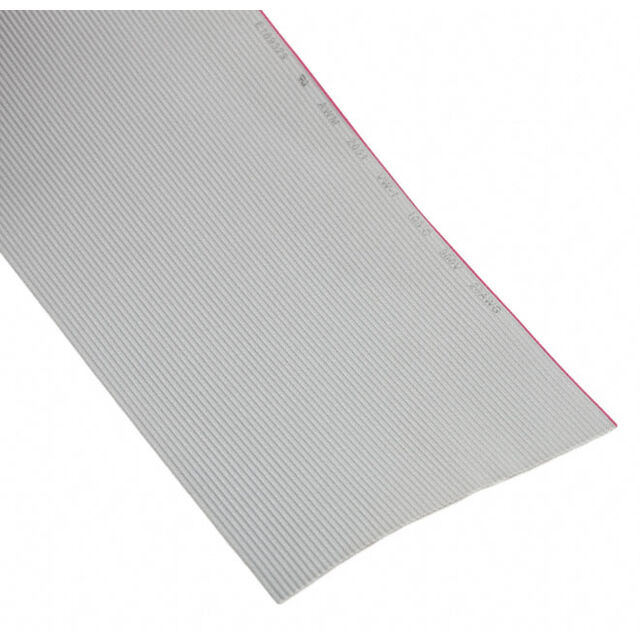

Assmann WSW Components AWG28-64/G/300	100 MOhms	Red	300 ft	91.44 m	Enter Number of Feet in Order Quantity	Copper Tinned	81.28 mm	3.2 in	Poly-Vinyl Chloride (PVC)	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	300 VDC	Gray	Flat Cable	Unshielded	28 AWG	0.89 mm	0.035 in	UL Style 2651	50 ft	15.24 m	0.05 in	1.27 mm	64	36 AWG	7 Strands		-10 °C	105 ░C
