GRPB061 Series

Catalog

CONN HEADER R/A 6POS 1.27MM

Part	Contact Finish Thickness - Post	Number of Rows	Shrouding	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Number of Positions Loaded	Contact Finish - Mating	Contact Finish - Post	Material Flammability Rating	Termination	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Fastening Type	Contact Finish Thickness - Mating	Insulation Material	Connector Type	Style	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Type	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]

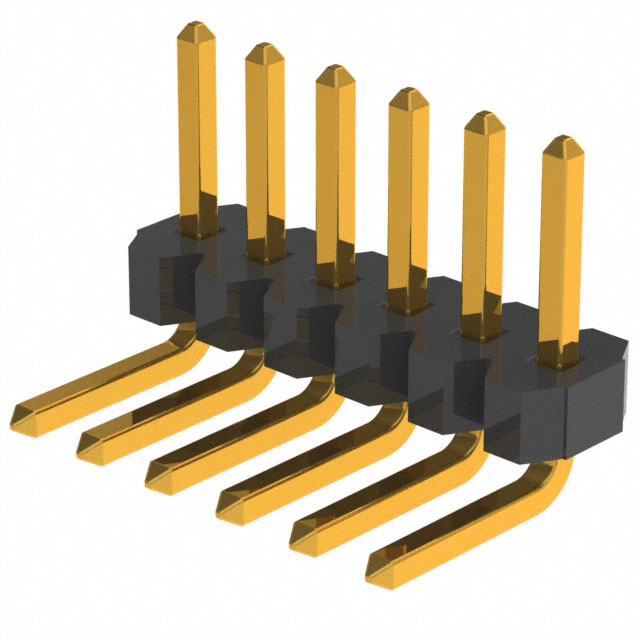

Sullins Connector Solutions GRPB061VWCN-RC	Flash	1	Unshrouded	1.27 mm	0.05 in	0.084 in	2.14 mm	6	All	Gold	Gold	UL94 V-0	Solder	Square	-40 C	105 ░C	Brass	Push-Pull	Flash	Nylon 9T Polyamide (PA9T)	Header	Board to Board Cable	2.5 mm	0.098 in	Right Angle Through Hole	Male Pin	3 mm	0.118 in

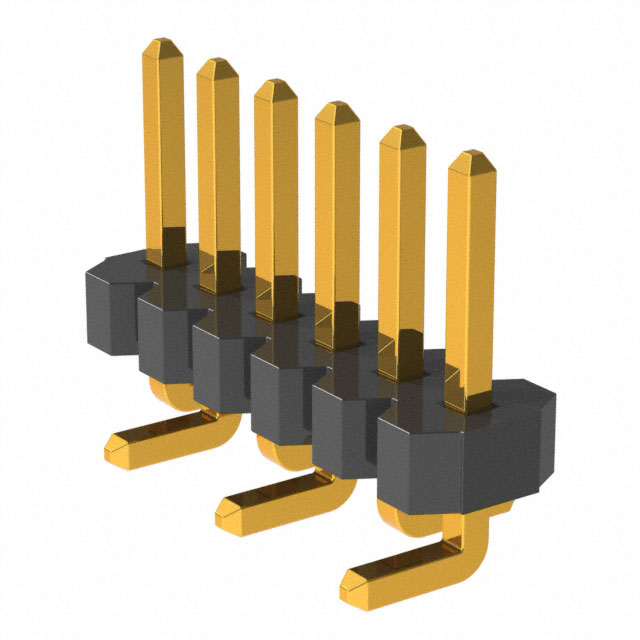

Sullins Connector Solutions GRPB061VWTC-RC	Flash	1	Unshrouded	1.27 mm	0.05 in			6	All	Gold	Gold	UL94 V-0	Solder	Square	-40 C	105 ░C	Brass	Push-Pull	Flash	Nylon 9T Polyamide (PA9T)	Header	Board to Board Cable			Surface Mount	Male Pin	3 mm	0.118 in	1 mm	0.039 in

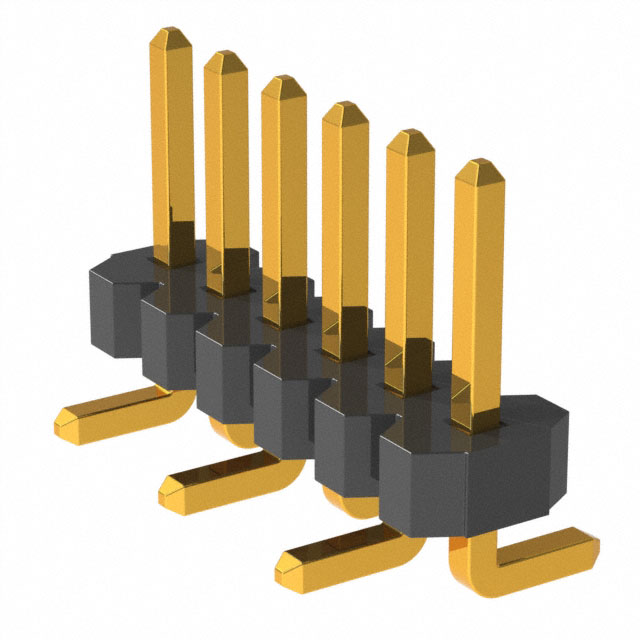

Sullins Connector Solutions GRPB061VWTD-RC	Flash	1	Unshrouded	1.27 mm	0.05 in			6	All	Gold	Gold	UL94 V-0	Solder	Square	-40 C	105 ░C	Brass	Push-Pull	Flash	Nylon 9T Polyamide (PA9T)	Header	Board to Board Cable			Surface Mount	Male Pin	3 mm	0.118 in	1 mm	0.039 in
