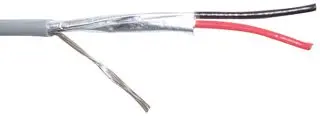

5500FE Series
Manufacturer: Belden Inc.
Beta
⌘K
CABLE 2COND 22AWG WHT SHLD
| Part | Shield Material | Shield Coverage | Ratings | Jacket Color | Features | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Usage | Number of Conductors | Shield Type | Cable Type | Conductor Material | Voltage | Length | Length | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | UL Style CMR | White | Drain Wire Rip Cord | 30 AWG | 7 | 22 AWG | 0.126 in | 3.2 mm | Poly-Vinyl Chloride (PVC) Riser | Security Sound | 2 | Foil | Multi-Conductor | Copper Tinned | 300 VDC | 304.8 m | 1000 ft | Polypropylene (PP) | 0.017 " | 0.432 mm | ||
 Belden Inc. | Aluminum | 100 % | Gray | Drain Wire Rip Cord | 30 AWG | 7 | 22 AWG | 0.126 in | 3.2 mm | Poly-Vinyl Chloride (PVC) Riser | 2 | Foil | Multi-Conductor | Copper Bare | 15.24 m 152.4 m | 50 ft 500 ft | Polypropylene (PP) | 0.017 " | 0.432 mm | 100 ft | 30.5 m |
