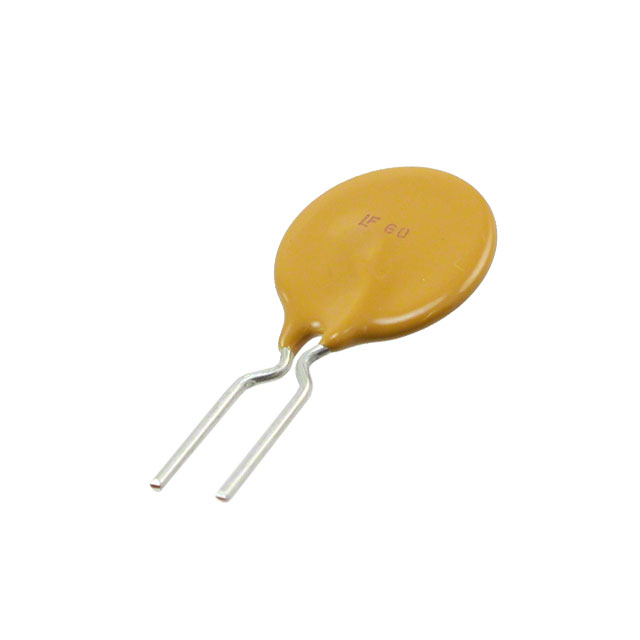

60R135 Series

PTC 60V POLYFUSE AMMO RADIAL LEADS 1.35A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

PTC 60V POLYFUSE AMMO RADIAL LEADS 1.35A

Part	Package / Case	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Hold (Ih) (Max) [Max]	Lead Spacing	Lead Spacing	Type	Voltage - Max [Max]	Resistance - Post Trip (R1) (Max) [Max]	Approval Agency	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Resistance - Initial (Ri) (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Time to Trip	Current - Trip (It)	Current - Max [Max]
Littelfuse/Commercial Vehicle Products 60R135XF	Disc Radial	Through Hole	19.8 mm	0.78 "	1.35 A	5.1 mm	0.201 in	Polymeric	60 V	300 mOhms	cURus TUV	3.1 mm	13.58 mm	0.122 in	0.535 in	120 mOhms	85 °C	-40 °C	9.6 s	2.7 A	40 A
Littelfuse/Commercial Vehicle Products 60R135XMR	Disc Radial	Through Hole	19.8 mm	0.78 "	1.35 A	5.1 mm	0.201 in	Polymeric	60 V	300 mOhms	cURus TUV	3.1 mm	13.58 mm	0.122 in	0.535 in	120 mOhms	85 °C	-40 °C	9.6 s	2.7 A	40 A

Catalog

PTC 60V POLYFUSE AMMO RADIAL LEADS 1.35A

Key Features

• Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements

• Fast time-to-trip

• Lead-free, halogen-free, and RoHS compliant

Description

The 60R series radial leaded device is designed to provide overcurrent protection for (≤60V) applications where space is not a concern and resettable protection is preferred.
