DR67 Series

Catalog

SOLID STATE RELAYS - INDUSTRIAL MOUNT SSR RELAY, 3-PHASE, DIN RAIL MOUNT, 600VAC/75A, 4-32VDC IN, ZERO CROSS

Part	Output Type	Circuit	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Approval Agency	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Load Current	Termination Style

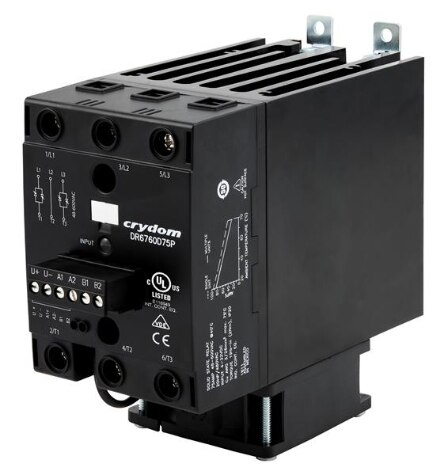

Sensata-Crydom DR6760D75P	AC Zero Cross	3PST-NO (3 Form A)	32 VDC	4 V	80 °C	-40 C	SSR with Integrated Heat Sink	cULus VDE	600 V	48 V	Chassis Mount DIN Rail	75 A	Screw Terminal

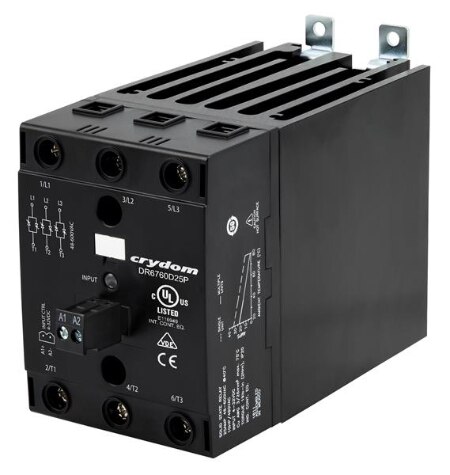

Sensata-Crydom DR6760D25RP	AC	3PST-NO (3 Form A)	32 VDC	4 V	80 °C	-40 C	SSR with Integrated Heat Sink	cULus VDE	600 V	48 V	Chassis Mount DIN Rail	25 A	Screw Terminal
Sensata-Crydom DR6760D30P	AC Zero Cross	3PST-NO (3 Form A)	32 VDC	4 V	80 °C	-40 C	SSR with Integrated Heat Sink	cULus VDE	600 V	48 V	Chassis Mount DIN Rail	30 A	Screw Terminal
Sensata-Crydom DR6760D60P	AC Zero Cross	3PST-NO (3 Form A)	32 VDC	4 V	80 °C	-40 C	SSR with Integrated Heat Sink	cULus VDE	600 V	48 V	Chassis Mount DIN Rail	60 A	Screw Terminal
Sensata-Crydom DR6760A30P	AC Zero Cross	3PST-NO (3 Form A)	280 VAC/DC	90 VAC	80 °C	-40 C	SSR with Integrated Heat Sink	cULus VDE	600 V	48 V	Chassis Mount DIN Rail	30 A	Screw Terminal
Sensata-Crydom DR6760A30RP	AC	3PST-NO (3 Form A)	280 VAC/DC	90 VAC	80 °C	-40 C	SSR with Integrated Heat Sink	cULus VDE	600 V	48 V	Chassis Mount DIN Rail	30 A	Screw Terminal
Sensata-Crydom DR6760A25RP	AC	3PST-NO (3 Form A)	280 VAC/DC	90 VAC	80 °C	-40 C	SSR with Integrated Heat Sink	cULus VDE	600 V	48 V	Chassis Mount DIN Rail	25 A	Screw Terminal
Sensata-Crydom DR6760D30RP	AC	3PST-NO (3 Form A)	32 VDC	4 V	80 °C	-40 C	SSR with Integrated Heat Sink	cULus VDE	600 V	48 V	Chassis Mount DIN Rail	30 A	Screw Terminal
Sensata-Crydom DR6760D75RP	AC	3PST-NO (3 Form A)	32 VDC	4 V	80 °C	-40 C	SSR with Integrated Heat Sink	cULus VDE	600 V	48 V	Chassis Mount DIN Rail	75 A	Screw Terminal
Sensata-Crydom DR6760A25P	AC Zero Cross	3PST-NO (3 Form A)	280 VAC/DC	90 VAC	80 °C	-40 C	SSR with Integrated Heat Sink	cULus VDE	600 V	48 V	Chassis Mount DIN Rail	25 A	Screw Terminal
