205737 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

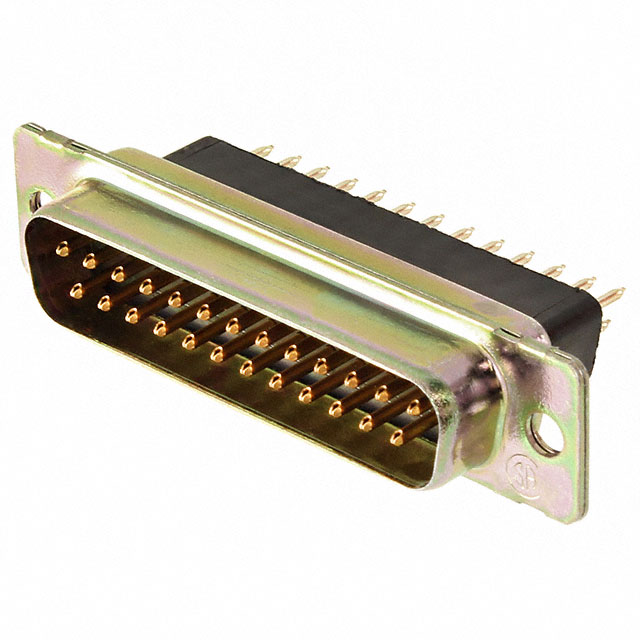

CONN D-SUB PLUG 25POS VERT SLDR
| Part | Contact Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Material Flammability Rating | Termination | Dielectric Material | Voltage Rating | Number of Rows | Flange Feature | Current Rating (Amps) | Contact Finish | Connector Type | Connector Style | Shell Material, Finish | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass | B DB | 3 | 0.76 Ám | 30 Áin | Through Hole | 105 ░C | -55 °C | Black | UL94 V-0 | Solder | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | 2 | Housing/Shell (Unthreaded) | 6 A | Gold | Male Pins Plug | D-Sub | Steel Yellow Chromate Plated Zinc | Signal |
