BQ51221 Series

Dual mode 5-W (WPC and PMA) single Chip Wireless power Receiver

Catalog

Dual mode 5-W (WPC and PMA) single Chip Wireless power Receiver

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Current - Supply	Mounting Type	Function	Utilized IC / Part	Supplied Contents	Primary Attributes	Type
Texas Instruments BQ51221YFPT	Wireless Power Receiver	85 °C	-40 °C	42-DSBGA	4 V	10 V	42-XFBGA DSBGA	20 µA	Surface Mount
Texas Instruments BQ51221YFPR	Wireless Power Receiver	85 °C	-40 °C	42-DSBGA	4 V	10 V	42-XFBGA DSBGA	20 µA	Surface Mount

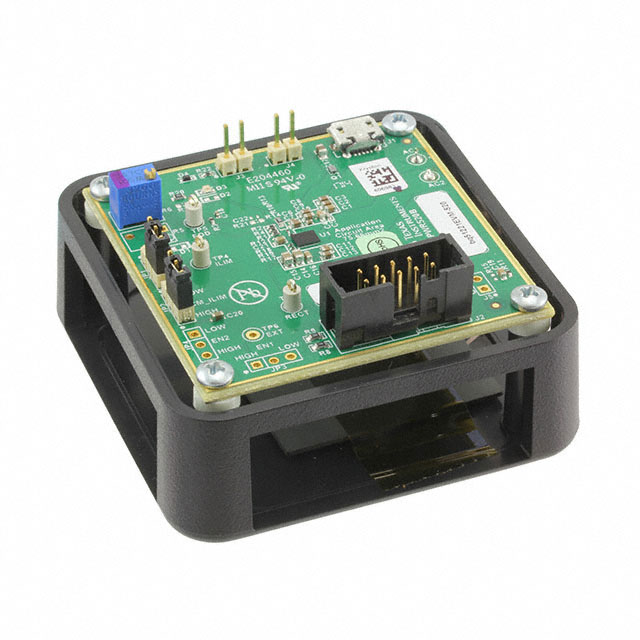

Texas Instruments BQ51221EVM-520										Wireless Power Supply/Charging	BQ51221	Board(s)	Receiver	Power Management

Catalog

Dual mode 5-W (WPC and PMA) single Chip Wireless power Receiver

Key Features

• Robust 5-W Solution With 50% Lower Lossesfor Improved ThermalsInductorless Receiver for Lowest HeightProfile SolutionAdjustable Output Voltage (4.5 to 8 V) forCoil and Thermal OptimizationFully Synchronous Rectifier With 96%Efficiency97% Efficient Post Regulator79% System Efficiency at 5 WWPC v1.1 and PMA Compliant CommunicationPatented Transmitter Pad Detect FunctionImproves User ExperienceI2C Communication with HostRobust 5-W Solution With 50% Lower Lossesfor Improved ThermalsInductorless Receiver for Lowest HeightProfile SolutionAdjustable Output Voltage (4.5 to 8 V) forCoil and Thermal OptimizationFully Synchronous Rectifier With 96%Efficiency97% Efficient Post Regulator79% System Efficiency at 5 WWPC v1.1 and PMA Compliant CommunicationPatented Transmitter Pad Detect FunctionImproves User ExperienceI2C Communication with Host

Description

The bq51221 device is a fully contained wireless power receiver capable of operating in both the WPC and PMA protocols which allows a wireless power system to work with both WPC and PMA inductive charging standards. The bq51221 device provides a single device power conversion (rectification and regulation) as well as the digital control and communication for both standards. It also has autonomous detection of protocol and requires no additional active devices. The bq51221 device complies with the WPC v1.1 and PMA communication protocol. Together with the WPC or a PMA primary-side controller, the bq51221 device enables a complete wireless power transfer system for a wireless power supply solution. The receiver allows for synchronous rectification, regulation and control and communication to all exist in a market-leading form factor, efficiency, and solution size. The bq51221 device is a fully contained wireless power receiver capable of operating in both the WPC and PMA protocols which allows a wireless power system to work with both WPC and PMA inductive charging standards. The bq51221 device provides a single device power conversion (rectification and regulation) as well as the digital control and communication for both standards. It also has autonomous detection of protocol and requires no additional active devices. The bq51221 device complies with the WPC v1.1 and PMA communication protocol. Together with the WPC or a PMA primary-side controller, the bq51221 device enables a complete wireless power transfer system for a wireless power supply solution. The receiver allows for synchronous rectification, regulation and control and communication to all exist in a market-leading form factor, efficiency, and solution size.
