C4DEFP Series

Manufacturer: KEMET

Catalog

CAP FILM 380UF 10% 400VDC RADIAL

Part	Tolerance	ESR (Equivalent Series Resistance)	Dielectric Material	Features	Applications	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]	Voltage Rating - DC	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]

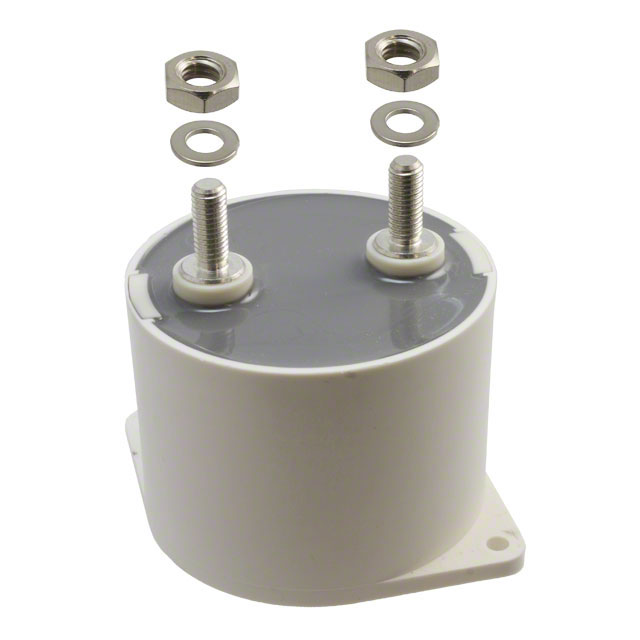

KEMET C4DEFPQ6380A8TK	10 %	0.81 mOhms	Polypropylene (PP) Metallized	Low ESL	DC Filtering DC Link	Threaded Male	3.307 in	84 mm	380 µF	2.598 in	66 mm	400 V	Can Radial	Chassis Mount	85 °C	-40 C

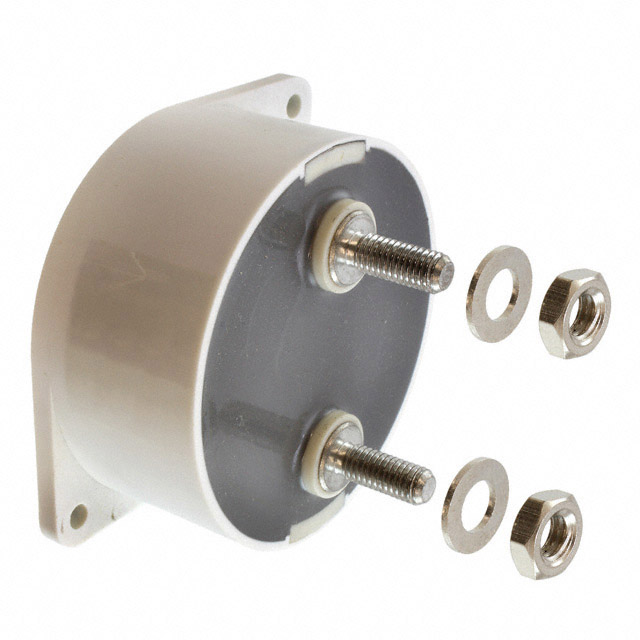

KEMET C4DEFPQ6175A8TK	10 %	0.5 mOhm	Polypropylene (PP) Metallized	Low ESL	DC Filtering DC Link	Threaded Male	3.307 in	84 mm	175 µF	2.598 in	66 mm	400 V	Can Radial	Chassis Mount	85 °C	-40 C
