317-058 Series
Manufacturer: EDAC Inc.
Beta
⌘K

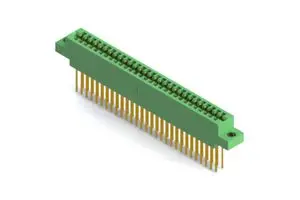

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Contact Type | Gender | Number of Positions/Bay/Row | Read Out | Card Type | Number of Rows [custom] | Termination | Contact Finish | Color | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Pitch | Pitch | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | Female | 29 | Dual | Non Specified - Dual Edge | 2 | Wire Wrap | Gold | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Copper Alloy | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | 58 | 3.96 mm | 0.156 in | M3 Threaded Insert Top Mount Opening |
