UCC28910 Series

Catalog

700V FLYBACK SWITCHER WITH CONSTANT-VOLTAGE CONSTANT-CURRENT AND PRIMARY-SIDE CONTROL

Part	Mounting Type	Fault Protection	Output Isolation	Package / Case	Package / Case	Supplier Device Package	Voltage - Start Up	Topology	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Power (Watts)	Voltage - Breakdown	Operating Temperature [Min]	Operating Temperature [Max]	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Power - Output	Regulator Topology	Contents	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Main Purpose	Voltage - Output
Texas Instruments UCC28910D	Surface Mount	Current Limiting Over Temperature Over Voltage	Isolated	0.154 in 3.9 mm 7 Leads	8-SOIC	7-SOIC	9.5 V	Flyback	115 kHz	420 Hz	6.5 V	30 V	9.5 W	700 V	-40 C	125 °C

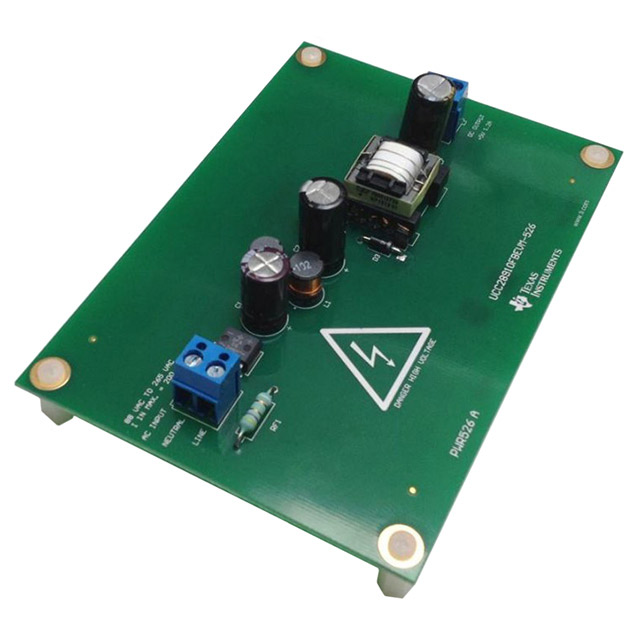

Texas Instruments UCC28910FBEVM-526																	Fully Populated	Board(s)	1 Isolated Output Isolated	1	6 W	Flyback	Board(s)	1.2 A	265 VAC	85 VAC	UCC28910	AC/DC Primary Side	5 V
Texas Instruments UCC28910DR	Surface Mount	Current Limiting Over Temperature Over Voltage	Isolated	0.154 in 3.9 mm 7 Leads	8-SOIC	7-SOIC	9.5 V	Flyback	115 kHz	420 Hz	6.5 V	30 V	9.5 W	700 V	-40 C	125 °C
