34.51.7 Series

Catalog

RELAY GEN PURPOSE SPST 6A 60V

Part	Coil Resistance	Contact Material	Coil Type	Relay Type	Contact Form	Operate Time	Termination Style	Mounting Type	Seal Rating	Approval Agency	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Coil Current	Load - Max Switching	Must Operate Voltage	Switching Voltage [Max]	Release Time	Must Release Voltage
Finder Relays, Inc. 34.51.7.060.5310	19.7 kOhms	Gold (Au) Silver Nickel (AgNi)	Non Latching	General Purpose	SPST-NO (1 Form A)	5 ms	PC Pin	Through Hole	Sealed - Flux Protection	CCC cURus RINA VDE	60 VDC	85 °C	-40 C	6 A	3 mA	2400 VA	42 VDC	400 VAC	3 ms

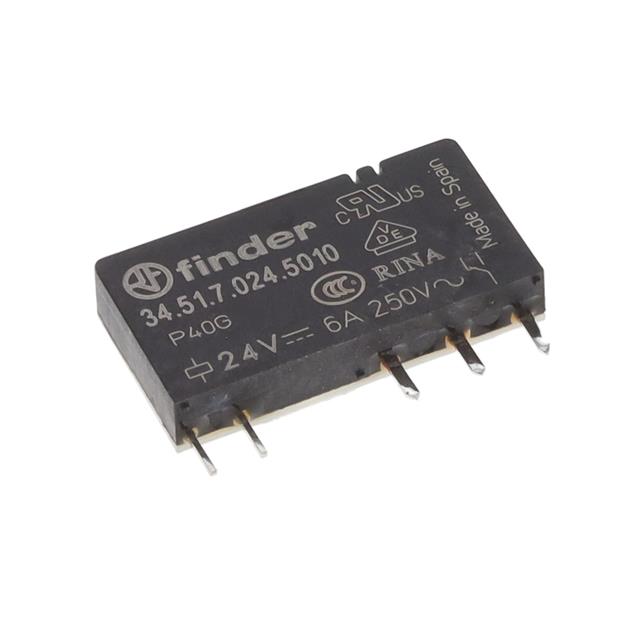

Finder Relays, Inc. 34.51.7.024.5010	3.35 kOhms	Gold (Au) Silver Nickel (AgNi)	Non Latching	General Purpose	SPDT (1 Form C)	5 ms	PC Pin	Through Hole	Sealed - Flux Protection	CCC cURus RINA VDE	24 VDC	85 °C	-40 C	6 A	7.1 mA	2400 VA	16.8 VDC	400 VAC	3 ms
Finder Relays, Inc. 34.51.7.024.5310	3.35 kOhms	Gold (Au) Silver Nickel (AgNi)	Non Latching	General Purpose	SPST-NO (1 Form A)	5 ms	PC Pin	Through Hole	Sealed - Flux Protection	CCC cURus RINA VDE	24 VDC	85 °C	-40 C	6 A	7.1 mA	2400 VA	16.8 VDC	400 VAC	3 ms	1.2 VDC
Finder Relays, Inc. 34.51.7.024.4010	3.35 kOhms	Silver Tin Oxide (AgSnO)	Non Latching	General Purpose	SPDT (1 Form C)	5 ms	PC Pin	Through Hole	Sealed - Flux Protection	CCC cURus RINA VDE	24 VDC	85 °C	-40 C	6 A	7.1 mA	2400 VA	16.8 VDC	400 VAC	3 ms

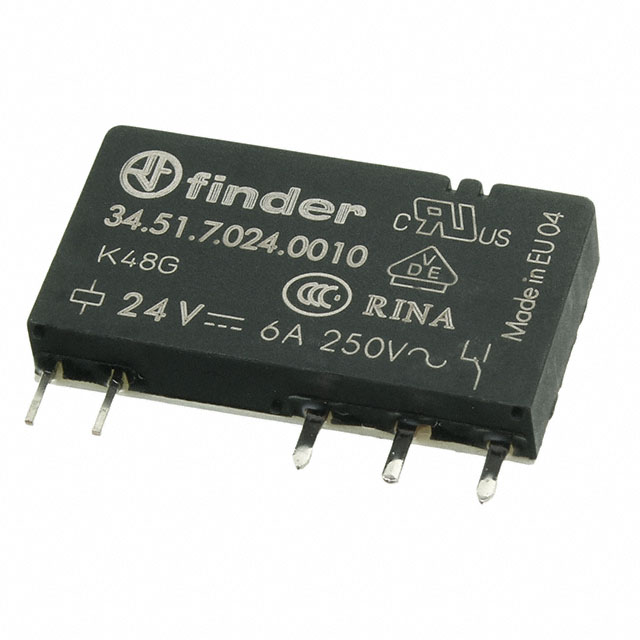

Finder Relays, Inc. 34.51.7.024.0010	3.35 kOhms	Silver Nickel (AgNi)	Non Latching	General Purpose	SPDT (1 Form C)	5 ms	PC Pin	Through Hole	Sealed - Flux Protection	CCC cURus RINA VDE	24 VDC	85 °C	-40 C	6 A	7.1 mA	2400 VA	16.8 VDC	400 VAC	3 ms

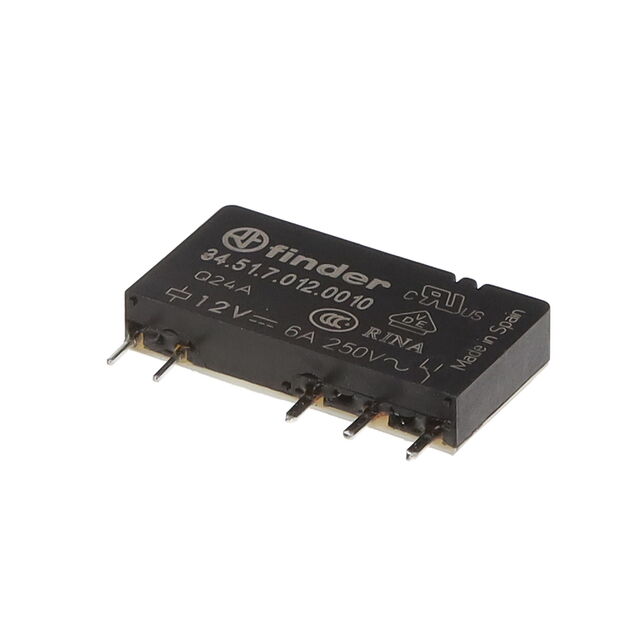

Finder Relays, Inc. 34.51.7.012.0010	840 Ohms	Silver Nickel (AgNi)	Non Latching	General Purpose	SPDT (1 Form C)	5 ms	PC Pin	Through Hole	Sealed - Flux Protection	CCC cURus RINA VDE	12 VDC	85 °C	-40 C	6 A	14.2 mA	2400 VA	8.4 VDC	400 VAC	3 ms
Finder Relays, Inc. 34.51.7.048.0010	12.3 kOhms	Silver Nickel (AgNi)	Non Latching	General Purpose	SPDT (1 Form C)	5 ms	PC Pin	Through Hole	Sealed - Flux Protection	CCC cURus RINA VDE	48 VDC	85 °C	-40 C	6 A	3.9 mA	2400 VA	33.6 VDC	400 VAC	3 ms

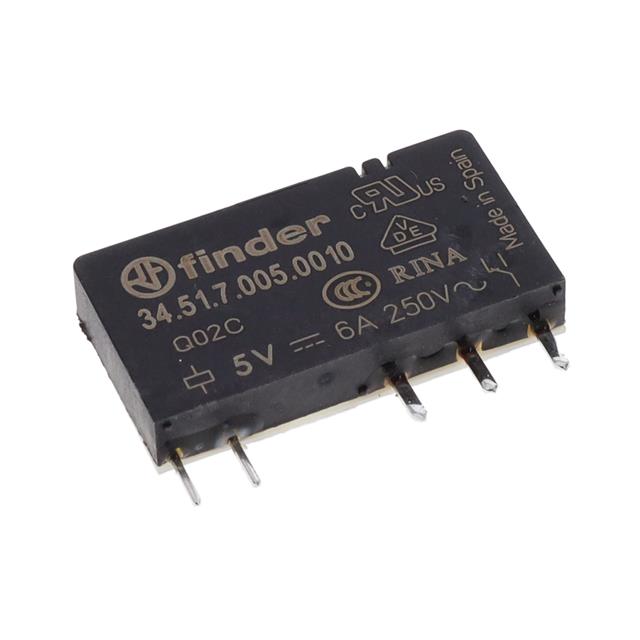

Finder Relays, Inc. 34.51.7.005.0010	130 Ohms	Silver Nickel (AgNi)	Non Latching	General Purpose	SPDT (1 Form C)	5 ms	PC Pin	Through Hole	Sealed - Flux Protection	CCC cURus RINA VDE	5 VDC	85 °C	-40 C	6 A	38.4 mA	2400 VA	3.5 VDC	400 VAC	3 ms
Finder Relays, Inc. 34.51.7.060.5010	19.7 kOhms	Gold (Au) Silver Nickel (AgNi)	Non Latching	General Purpose	SPDT (1 Form C)	5 ms	PC Pin	Through Hole	Sealed - Flux Protection	CCC cURus RINA VDE	60 VDC	85 °C	-40 C	6 A	3 mA	2400 VA	42 VDC	400 VAC	3 ms
