LDS-HTA514 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K

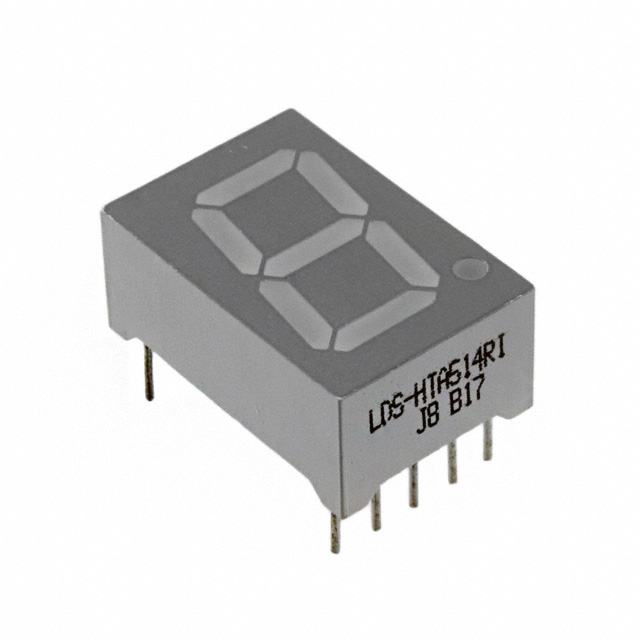

DISPLAY 7SEG 0.56" SGL RED 10DIP
| Part | Package / Case | Package / Case | Package / Case | Power Dissipation (Max) [Max] | Number of Characters [custom] | Common Pin | Display Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Digit/Alpha Size | Digit/Alpha Size | Millicandela Rating | Current - Test | Wavelength - Peak | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 0.6 in | 15.24 mm | 10-DIP | 105 mW | 1 | Common Anode | 7-Segment | 12.6 mm | 19 mm | 0.496 in | 0.315 " | 0.748 " | 8 mm | 2 V | 0.56 in | 14.22 mm | 3.9 mcd | 10 mA | 635 nm | Red |
