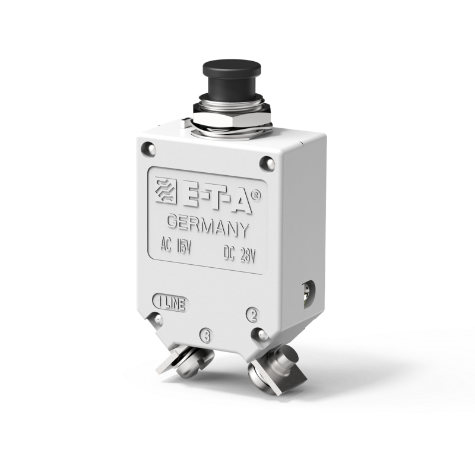

482 Series
Manufacturer: E-T-A
Beta
⌘K
CIRCUIT BREAKERS SINGLE POLE COMPACT HIGH PERFORMANCE THERMAL CIRCUIT BREAKER WITH TEASE-FREE, TRIP-FREE, SNAP ACTION MECHANISM AND PUSH/PULL ON/OFF MANUAL ACTUATION (M-TYPE TO CBE TO EN 60934). AN INDICATOR BAND ON THE PUSH BUTTON CLEARLY SHOWS THE TRIPPED/OFF POSIT
| Part | Illumination | Actuator Type | Voltage Rating - AC | Approval Agency | Voltage Rating - DC | Breaker Type | Current Rating (Amps) | Mounting Type | Number of Poles |
|---|---|---|---|---|---|---|---|---|---|
None | Push-Pull Plunger | 230 V | CSA C22.2 No 235 IEC 60934 UL1077 | 28 V | Thermal | 15 A | Panel Mount | 1 | |
None | Push-Pull Plunger | 230 V | CSA C22.2 No 235 IEC 60934 UL1077 | 28 V | Thermal | 30 A | Panel Mount | 1 | |
None | Push-Pull Plunger | 230 V | CSA C22.2 No 235 IEC 60934 UL1077 | 28 V | Thermal | 50 A | Panel Mount | 1 | |
None | Push-Pull Plunger | 230 V | CSA C22.2 No 235 IEC 60934 UL1077 | 28 V | Thermal | 10 A | Panel Mount | 1 | |
None | Push-Pull Plunger | 230 V | CSA C22.2 No 235 IEC 60934 UL1077 | 28 V | Thermal | 25 A | Panel Mount | 1 | |
None | Push-Pull Plunger | 115 V | CSA C22.2 No 235 UL1077 | 28 V | Thermal | 45 A | Panel Mount | 1 | |
None | Push-Pull Plunger | 230 V | CSA C22.2 No 235 IEC 60934 UL1077 | 28 V | Thermal | 25 A | Panel Mount | 1 | |
None | Push-Pull Plunger | 230 V | CSA C22.2 No 235 IEC 60934 UL1077 | 28 V | Thermal | 5 A | Panel Mount | 1 | |
None | Push-Pull Plunger | 230 V | CSA C22.2 No 235 IEC 60934 UL1077 | 28 V | Thermal | 25 A | Panel Mount | 1 | |
