C20F Series

Catalog

AC POWER ENTRY MODULES C20F APPLIANCE INLET FILTER 20A M5

Part	Ingress Protection	Current Rating - Filter [Min]	Current Rating - Filter [Max]	Connector Type	Material Flammability Rating	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Features	Filter Type	Connector Style	Mounting Type	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]
SCHURTER Inc. C20F.0112	IP40	16 A	20 A	Receptacle Male Blades	UL94 V-0	cULus VDE	26.3 mm	34.8 mm	6.3 mm	Quick Connect	0.25 "	250 VAC	16 A	Shielded	Filtered (EMI RFI) - Commercial Medical	IEC 320-C20	Panel Mount Snap-In	0.118 in	3 mm	1 mm	0.039 in

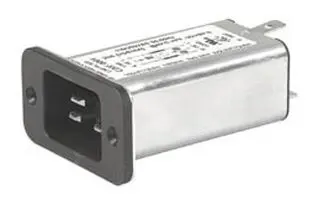

SCHURTER Inc. C20F.0104	IP40	16 A	20 A	Receptacle Male Blades	UL94 V-0	cULus VDE	26.8 mm	34.8 mm	6.3 mm	Quick Connect	0.25 "	250 VAC	16 A	Shielded	Filtered (EMI RFI) - Commercial Medical	IEC 320-C20	Flange Panel Mount

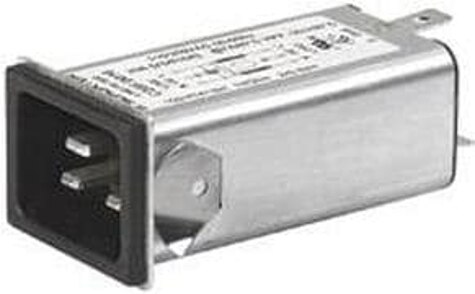

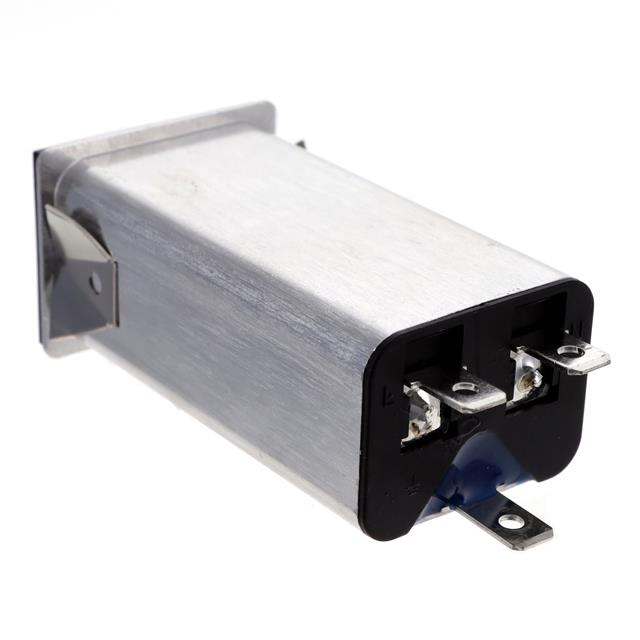

SCHURTER Inc. C20F.0011	IP40	16 A	20 A	Receptacle Male Blades	UL94 V-0	cULus VDE	26.3 mm	34.8 mm		Solder Eyelet		250 VAC	16 A	Shielded	Filtered (EMI RFI) - Commercial	IEC 320-C20	Panel Mount Snap-In	0.118 in	3 mm	1 mm	0.039 in
SCHURTER Inc. C20F.0004	IP40	16 A	20 A	Receptacle Male Blades	UL94 V-0	cULus VDE	26.8 mm	34.8 mm		Solder Eyelet		250 VAC	16 A	Shielded	Filtered (EMI RFI) - Commercial Medical	IEC 320-C20	Flange Panel Mount

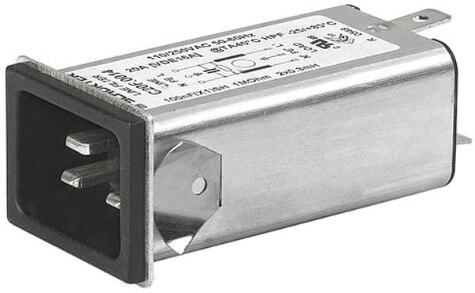

SCHURTER Inc. C20F.0021	IP40			Receptacle Male Blades	UL94 V-0	cULus VDE	28.3 mm	36.4 mm		Solder Eyelet		250 VAC	16 A	Shielded	Filtered (EMI RFI) - Commercial	IEC 320-C20	Flange Panel Mount
