M2019S2 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Mounting Type	Illumination	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Length	Bushing Thread	Circuit	Switch Function	Actuator Type	Panel Cutout Dimensions [diameter]	Features	Termination Style	Current Rating (Amps)
NKK Switches M2019S2A1W01	Brass Chrome Plated	25000 Steps	Panel Mount	Non-Illuminated	30 V	85 °C	-30 ░C	125 V	6.86 mm	1/4-40	SPDT	On-Off-Mom	Standard Round	6.5 mm	Epoxy Sealed Terminals	Solder Lug	3 A 6 A

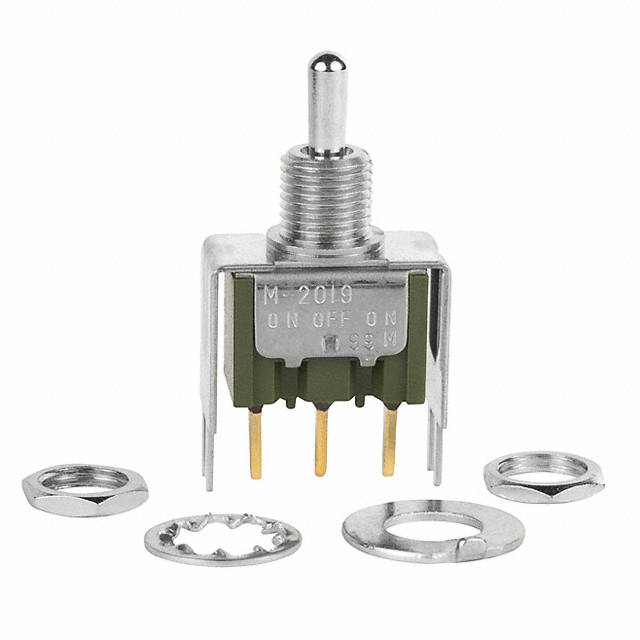

NKK Switches M2019S2A1G13	Brass Chrome Plated	50000 Cycles	Panel Mount	Non-Illuminated	28 V	85 °C	-30 ░C	28 V	6.86 mm	1/4-40	SPDT	On-Off-Mom	Standard Round	6.5 mm	Epoxy Sealed Terminals	PC Pin	0.4 VA

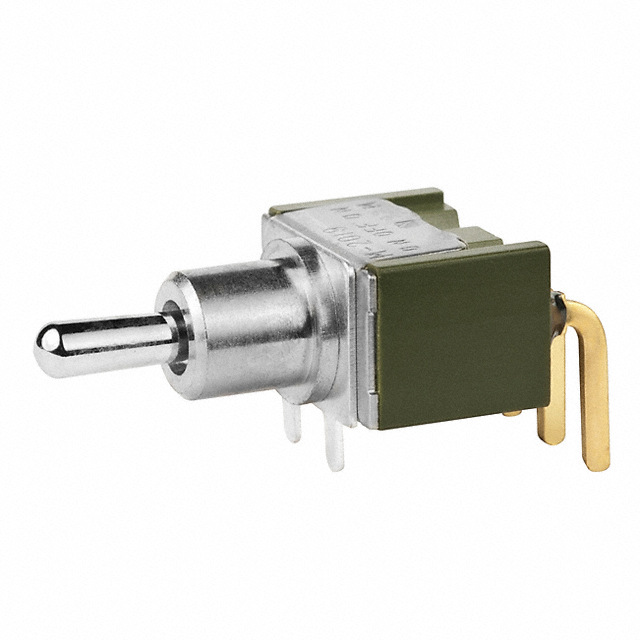

NKK Switches M2019S2A2G30	Brass Chrome Plated	50000 Cycles	Right Angle Through Hole	Non-Illuminated	28 V	85 °C	-30 ░C	28 V	6.86 mm	Unthreaded	SPDT	On-Off-Mom	Standard Round	6.5 mm	Epoxy Sealed Terminals	PC Pin	0.4 VA
