10061122 Series

Catalog

CONN FPC BOTTOM 41POS 0.3MM R/A

Part	Mating Cycles	Actuator Color	Current Rating (Amps)	Housing Color	Voltage Rating	Number of Positions	Pitch	Pitch	Material Flammability Rating	Locking Feature	Contact Material	FFC, FCB Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Flat Flex Type	Height Above Board [z]	Height Above Board [z]	Termination	Features	Cable End Type	Actuator Material	Mounting Type	Contact Finish	Housing Material	Connector/Contact Type	FFC, FCB Thickness [custom]

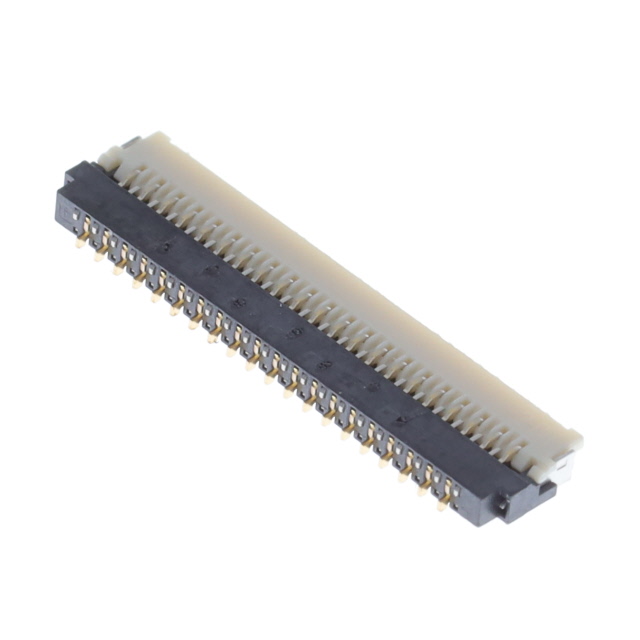

Amphenol ICC (FCI) 10061122-411320HLF	10	Black	0.2 A	Black	30 VDC	41	0.012 in	0.3 mm	UL94 V-0	Slide Lock	Copper Alloy	0.3 mm	-55 C	85 °C	FPC	0.88 mm	0.035 in	Solder	Solder Retention Zero Insertion Force (ZIF)	Straight	Thermoplastic Halogen Free	Right Angle Surface Mount	Gold	Thermoplastic	Contacts Bottom
Amphenol ICC (FCI) 10061122-171110HLF		Black	0.2 A	Natural	30 VDC		0.012 in	0.3 mm	UL94 V-0	Flip Lock	Copper Alloy		-55 C	85 °C	FPC	0.88 mm	0.035 in	Solder	Solder Retention Zero Insertion Force (ZIF)	Notched	Thermoplastic	Right Angle Surface Mount	Gold	Thermoplastic	Contacts Bottom	0.2 mm
Amphenol ICC (FCI) 10061122-451420HLF	10	Black	0.2 A	Black	30 VDC	45	0.012 in	0.3 mm	UL94 V-0	Slide Lock	Copper Alloy	0.3 mm	-55 C	85 °C	FPC	0.88 mm	0.035 in	Solder	Solder Retention Zero Insertion Force (ZIF)	Straight	Thermoplastic Halogen Free	Right Angle Surface Mount	Gold	Thermoplastic	Contacts Bottom

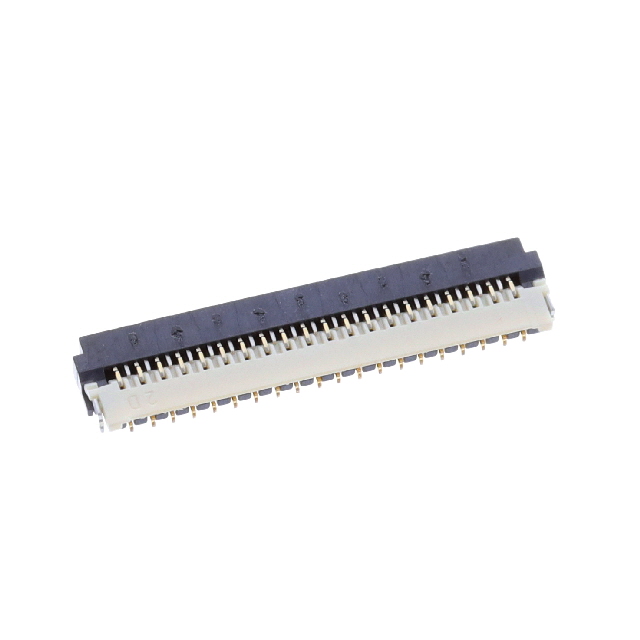

Amphenol ICC (FCI) 10061122-391420HLF	10	Black	0.2 A	Black	30 VDC	39	0.012 in	0.3 mm	UL94 V-0	Slide Lock	Copper Alloy	0.3 mm	-55 C	85 °C	FPC	0.88 mm	0.035 in	Solder	Solder Retention Zero Insertion Force (ZIF)	Straight	Thermoplastic Halogen Free	Right Angle Surface Mount	Gold	Thermoplastic	Contacts Bottom

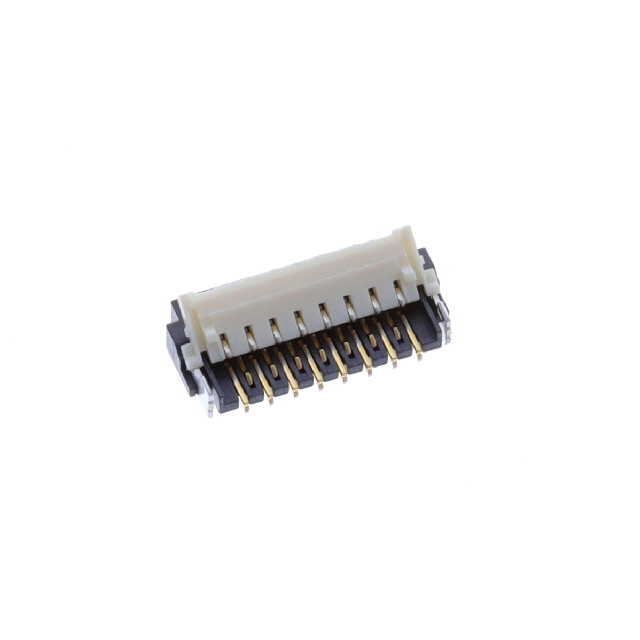

Amphenol ICC (FCI) 10061122-151120HLF	10	Black	0.2 A	Black	30 VDC	15	0.012 in	0.3 mm	UL94 V-0	Flip Lock	Copper Alloy	0.3 mm	-55 C	85 °C	FPC	0.88 mm	0.035 in	Solder	Solder Retention Zero Insertion Force (ZIF)	Tabbed	Thermoplastic Halogen Free	Right Angle Surface Mount	Gold	Thermoplastic Halogen Free	Contacts Bottom

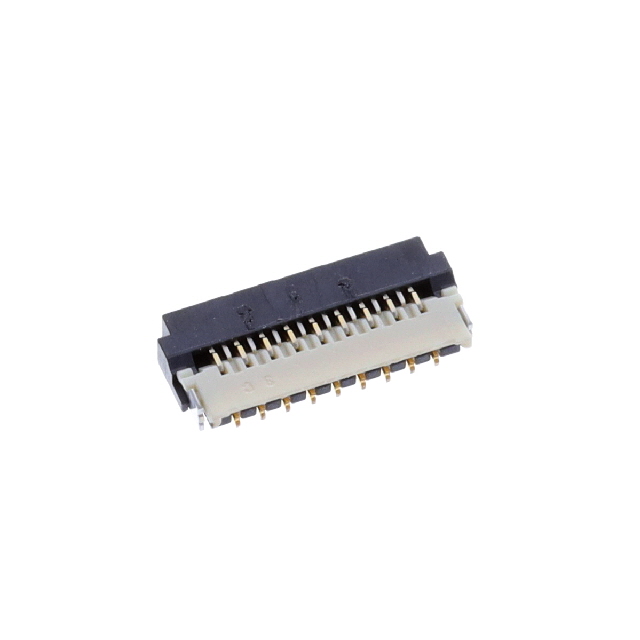

Amphenol ICC (FCI) 10061122-171120HLF	10	Black	0.2 A	Black	30 VDC		0.012 in	0.3 mm	UL94 V-0	Flip Lock	Copper Alloy	0.3 mm	-55 C	85 °C	FPC	0.88 mm	0.035 in	Solder	Solder Retention Zero Insertion Force (ZIF)	Straight	Thermoplastic Halogen Free	Right Angle Surface Mount	Gold	Thermoplastic Halogen Free	Contacts Bottom

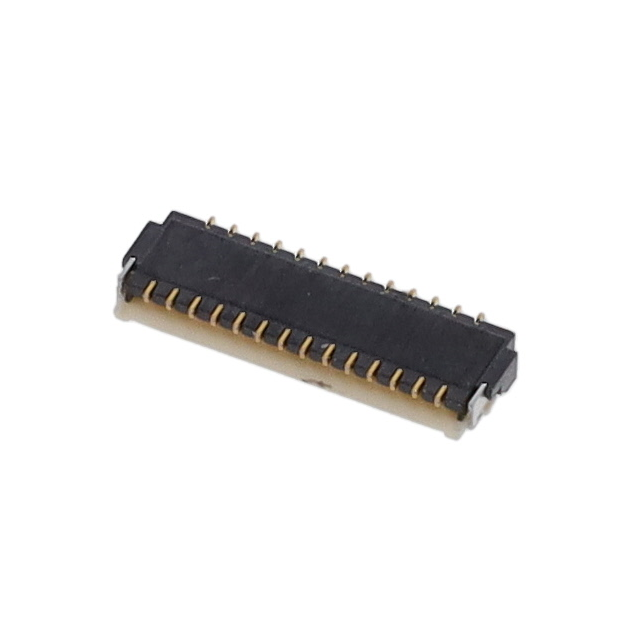

Amphenol ICC (FCI) 10061122-271320HLF	10	Black	0.2 A	Black	30 VDC	27	0.012 in	0.3 mm	UL94 V-0	Slide Lock	Copper Alloy	0.3 mm	-55 C	85 °C	FPC	0.88 mm	0.035 in	Solder	Solder Retention Zero Insertion Force (ZIF)	Straight	Thermoplastic Halogen Free	Right Angle Surface Mount	Gold	Thermoplastic	Contacts Bottom
Amphenol ICC (FCI) 10061122-291320HLF	10	Black	0.2 A	Black	30 VDC	29	0.012 in	0.3 mm	UL94 V-0	Slide Lock	Copper Alloy	0.3 mm	-55 C	85 °C	FPC	0.88 mm	0.035 in	Solder	Solder Retention Zero Insertion Force (ZIF)	Straight	Thermoplastic Halogen Free	Right Angle Surface Mount	Gold	Thermoplastic	Contacts Bottom

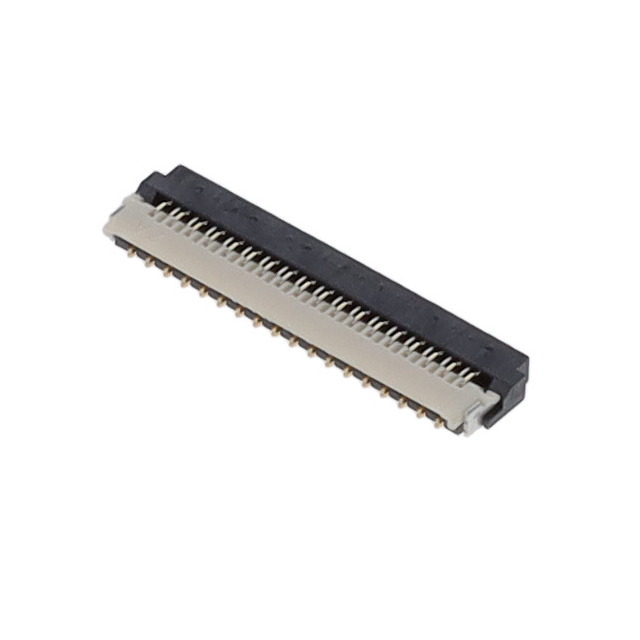

Amphenol ICC (FCI) 10061122-351320HLF	10	Black	0.2 A	Black	30 VDC	35	0.012 in	0.3 mm	UL94 V-0	Slide Lock	Copper Alloy	0.3 mm	-55 C	85 °C	FPC	0.88 mm	0.035 in	Solder	Solder Retention Zero Insertion Force (ZIF)	Straight	Thermoplastic Halogen Free	Right Angle Surface Mount	Gold	Thermoplastic	Contacts Bottom
Amphenol ICC (FCI) 10061122-211220HLF	10	Black	0.2 A	Black	30 VDC	21	0.012 in	0.3 mm	UL94 V-0	Flip Lock	Copper Alloy	0.3 mm	-55 C	85 °C	FPC	0.88 mm	0.035 in	Solder	Solder Retention Zero Insertion Force (ZIF)	Tabbed	Thermoplastic	Right Angle Surface Mount	Gold	Thermoplastic Halogen Free	Contacts Bottom
