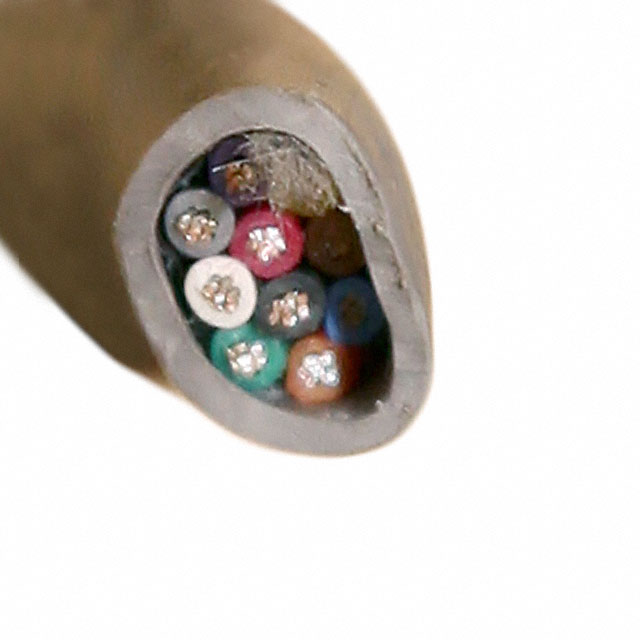

5020C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 10CON 24AWG BLK 1000=1000'
| Part | Conductor Material | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Number of Conductors | Voltage | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Ratings | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE | Copper Tinned | Poly-Vinyl Chloride (PVC) | 32 AWG | 7 | Biological Compatibility Rip Cord | 6.2 mm | 0.244 in | Black | 24 AWG | 10 | 300 V | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Communication Control | ISO 10993 UL Style 2464 | Multi-Conductor | ||
 ALPHA WIRE | Copper Tinned | Poly-Vinyl Chloride (PVC) | 32 AWG | 7 | Biological Compatibility Rip Cord | 6.2 mm | 0.244 in | Slate | 24 AWG | 10 | 300 V | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Communication Control | ISO 10993 UL Style 2464 | Multi-Conductor | 100 m | 328.1 ft |
