PT4243 Series

Catalog

DC DC CONVERTER 5V 10W

Part	Voltage - Isolation	Voltage - Output 1	Efficiency	Applications	Voltage - Input (Max) [Max]	Power (Watts)	Type	Mounting Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Input (Min) [Min]	Number of Outputs	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]
Texas Instruments PT4243C	1.5 kV	5 V	84 %	ITE (Commercial)	36 V	10 W	Isolated Module	Surface Mount	2 A	85 °C	-40 °C	OCP Remote On/Off SCP UVLO	18 V	1	10-SMD Module	7.9 mm	2 in	50.8 mm	30.2 mm	1.19 "	0.31 in
Texas Instruments PT4243N	1.5 kV	5 V	84 %	ITE (Commercial)	36 V	10 W	Isolated Module	Through Hole	2 A	85 °C	-40 °C	UVLO	18 V	1	10-SIP Module	25.9 mm	2 in	50.8 mm	12.2 mm	0.48 in	1.02 in

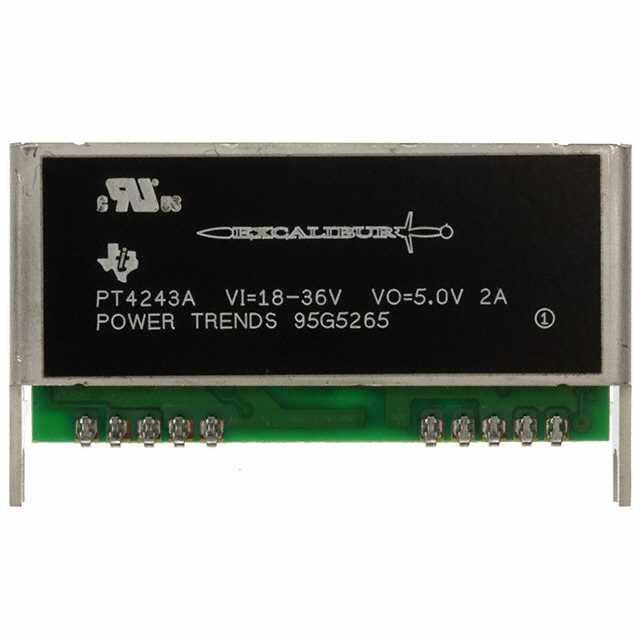

Texas Instruments PT4243A	1.5 kV	5 V	84 %	ITE (Commercial)	36 V	10 W	Isolated Module	Through Hole Right Angle	2 A	85 °C	-40 °C	UVLO	18 V	1	10-SIP Module
