325-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K

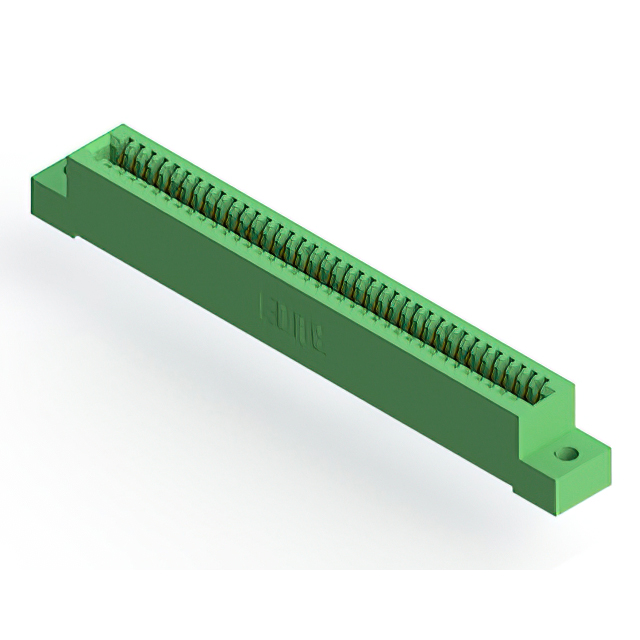

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 37 CONTACTS, PANEL MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Contact Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Gender | Number of Rows | Flange Feature | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Color | Termination | Contact Material | Card Thickness | Card Thickness | Read Out | Contact Finish | Card Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Female | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 37 | 0.25 Ám | 10 Áin | 37 | Green | Solder Eyelet(s) | Copper Alloy | 3.18 mm | 0.125 in | Single | Gold | Non Specified - Single Edge | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Female | 1 | Flush Mount Top Opening Unthreaded | 37 | 0.25 Ám | 10 Áin | 37 | Green | Solder Eyelet(s) | Copper Alloy | 3.18 mm | 0.125 in | Single | Gold | Non Specified - Single Edge | 0.16 " | 4.06 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Female | 1 | Flush Mount M3 Threaded Insert Top Opening | 37 | 0.25 Ám | 10 Áin | 37 | Green | Solder Eyelet(s) | Copper Alloy | 3.18 mm | 0.125 in | Single | Gold | Non Specified - Single Edge | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Female | 1 | Flush Mount Top Opening Unthreaded | 37 | 0.25 Ám | 10 Áin | 37 | Green | Solder | Copper Alloy | 3.18 mm | 0.125 in | Single | Gold | Non Specified - Single Edge | 0.16 " | 4.06 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Female | 1 | 37 | 0.25 Ám | 10 Áin | 37 | Green | Wire Wrap | Copper Alloy | 3.18 mm | 0.125 in | Single | Gold | Non Specified - Single Edge | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Female | 1 | 37 | 0.25 Ám | 10 Áin | 37 | Green | Solder | Copper Alloy | 3.18 mm | 0.125 in | Single | Gold | Non Specified - Single Edge |
