NPPC382 Series

Catalog

CONN HDR 76POS 0.1 GOLD PCB

Part	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Contact Material	Fastening Type	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions	Number of Rows [custom]	Contact Finish - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish - Post	Contact Type	Termination	Current Rating (Amps)	Insulation Height	Insulation Height	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Connector Type	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Insulation Height [z]
Sullins Connector Solutions NPPC382LFBN-RC	Flash	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Push-Pull	Black	0.126 "	3.2 mm	0.1 "	2.54 mm	UL94 V-0	76	2	Gold	Flash	-40 C	105 ░C	250 V	Gold	Female Socket	Solder	3 A	0.335 "	8.51 mm	All	0.1 in	2.54 mm	Through Hole	Header

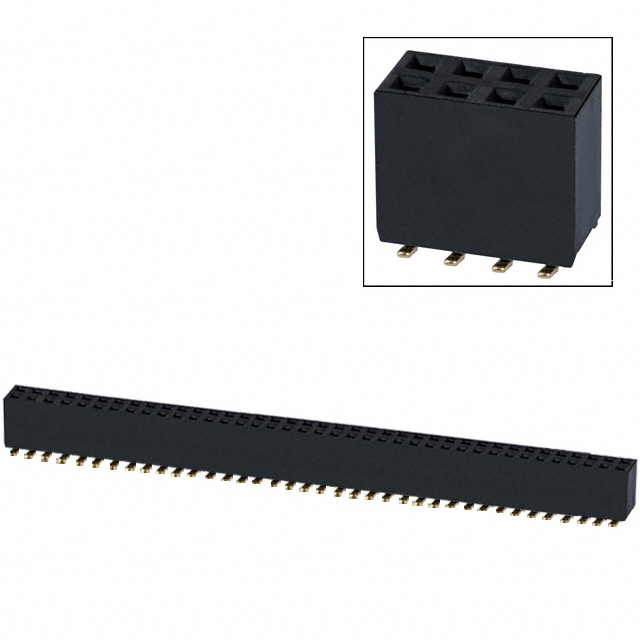

Sullins Connector Solutions NPPC382KFMS-RC	Flash	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Push-Pull	Black			0.1 "	2.54 mm	UL94 V-0	76	2	Gold	Flash	-40 C	125 °C	250 V	Gold	Female Socket	Solder	3 A		7.6 mm	All	0.1 in	2.54 mm	Surface Mount	Header	0.299 "
Sullins Connector Solutions NPPC382LJBN-RC	Flash	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Push-Pull	Black			0.1 "	2.54 mm	UL94 V-0	76	2	Gold	Flash	-40 C	105 ░C	250 V	Gold	Female Socket	Solder	3 A			All	0.1 in	2.54 mm	Right Angle Through Hole	Header	0.2 in	0.124 in	3.15 mm	5.08 mm
