8443 Series
Manufacturer: Belden Inc.
Beta
⌘K

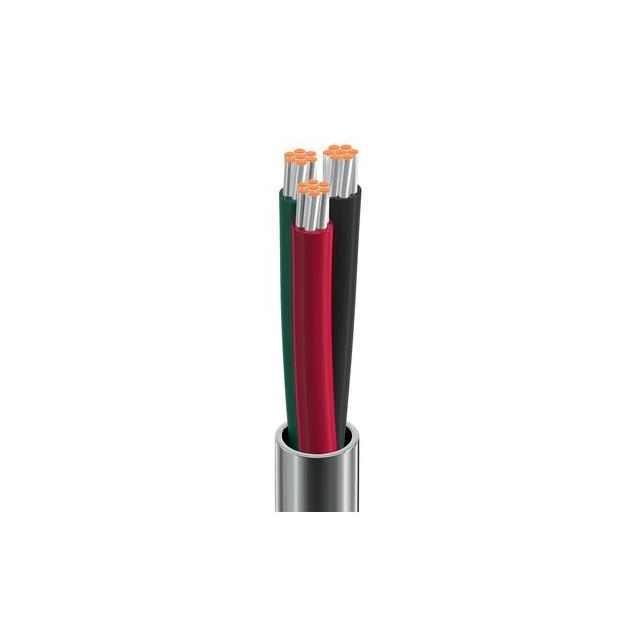

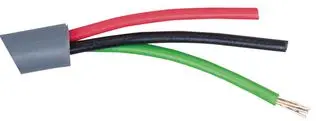

MULTICONDUCTOR CABLE, AUDIO CONTROL, PVC, UNSHIELDED, 3 CONDUCTOR, 22 AWG, 100 FT, 30.5 M
| Part | Jacket (Insulation) Material | Usage | Conductor Insulation | Wire Gauge | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Length [x] | Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Length | Length | Ratings | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 22 AWG | Chrome | 30 AWG | 7 | Multi-Conductor | 100 ft | 30.5 m | 80 °C | -20 ░C | 3 | 0.813 mm | 0.032 in | Copper Tinned | ||||
Belden Inc. | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 22 AWG | Chrome | 30 AWG | 7 | Multi-Conductor | 80 °C | -20 ░C | 3 | 0.813 mm | 0.032 in | Copper Tinned | 152.4 m | 500 ft | UL Style 2576 | |||
 Belden Inc. | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 22 AWG | Chrome | 30 AWG | 7 | Multi-Conductor | 80 °C | -20 ░C | 3 | 0.813 mm | 0.032 in | Copper Tinned | UL Style 2576 | Enter Number of Feet in Order Quantity |
