8A1021 Series
Manufacturer: Nidec Components Corporation
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

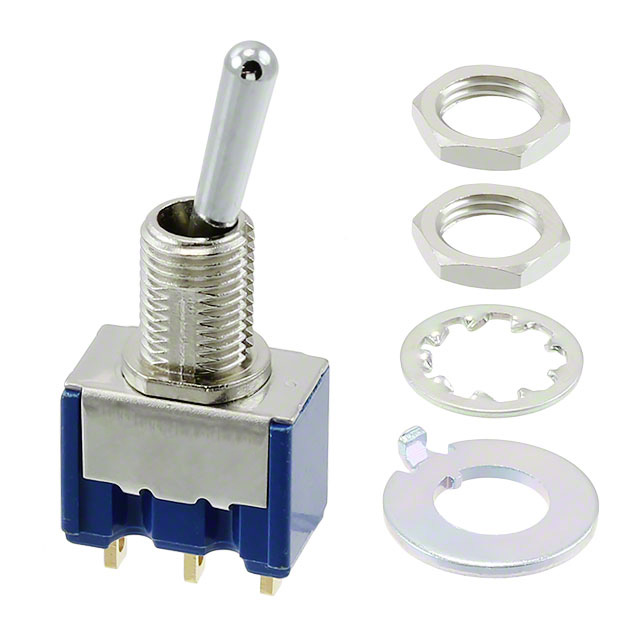

SWITCH TOGGLE SPDT 25MA 20V
| Part | Electrical Life (Cycles) | Panel Cutout Diameter | Panel Cutout Shape | Actuator Length | Mounting Type | Bushing Thread | Switch Function | Operating Temperature (Max) | Operating Temperature (Min) | Termination Style | Circuit | Illumination | Voltage Rating - DC | Actuator Type | Features | Current Rating | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 | 6.5 mm | Circular | 10.5 mm | Panel Mount | 1/4-40 | On-Off-On | 85 °C | -20 °C | Solder Lug | SPDT | Non-Illuminated | 20 V | Standard Round | Flux Protection Sealed | 25 mA | |
 Nidec Components Corporation | 50000 | 6.5 mm | Circular | 10.5 mm | Panel Mount | 1/4-40 | On-Off-On | 85 °C | -30 °C | Solder Lug | SPDT | Non-Illuminated | 30 V | Standard Round | Flux Protection Sealed | 4 A 6 A | 125 V |
