PPL18U Series

Desktop AC Adapters Desktop - C14

Manufacturer: Phihong USA

Catalog

Desktop AC Adapters Desktop - C14

Catalog

Desktop AC Adapters Desktop - C14

Part	Region Utilized	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Applications	Polarization	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Cord Length	Cord Length	Power (Watts)	No Load Power Consumption	Form	Output Connector [x]	Output Connector [diameter]	Output Connector	Input Connector	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Approval Agency	Efficiency	Standard Number

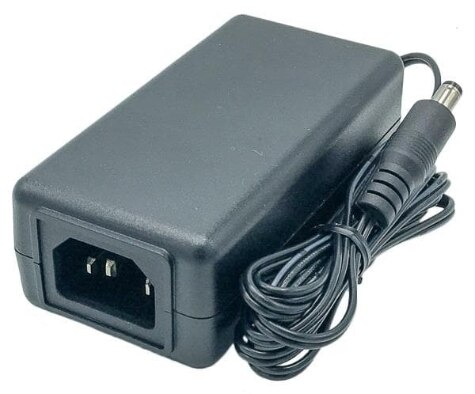

Phihong USA PPL18U-060L6	International	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	ITE (Commercial)	Positive Center	Cord (Sold Separately)	40 °C	0 °C	1.5 m	59 in	18 W	56 mW	Desktop (Class I)	10 mm	2.1 mm 5.5 mm	Barrel Plug	IEC 320-C14	3 A	264 VAC	90 VAC	5.9 V	CE cUL cULus UKCA	CoC Tier 2 Level VI	62368-1

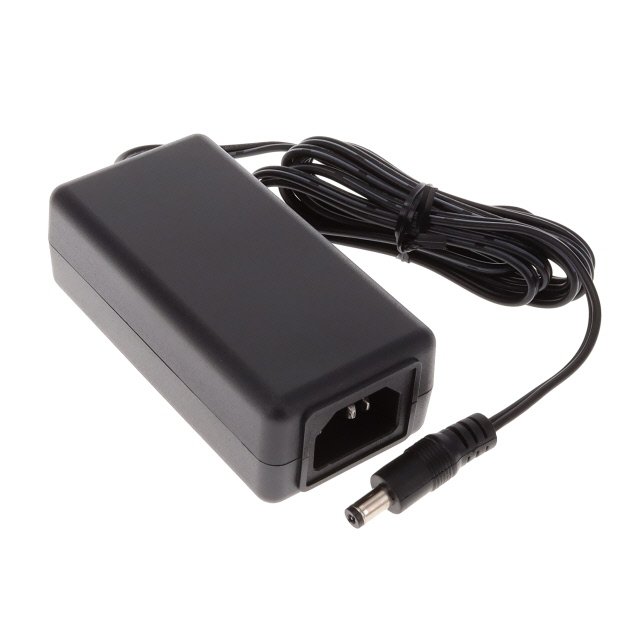

Phihong USA PPL18U-050L6	International	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	ITE (Commercial)	Positive Center	Cord (Sold Separately)	40 °C	0 °C	1.5 m	59 in	15 W	100 mW	Desktop (Class I)	10 mm	2.1 mm 5.5 mm	Barrel Plug	IEC 320-C14	3 A	264 VAC	90 VAC	5 V	cULus IEC	Level VI	62368-1

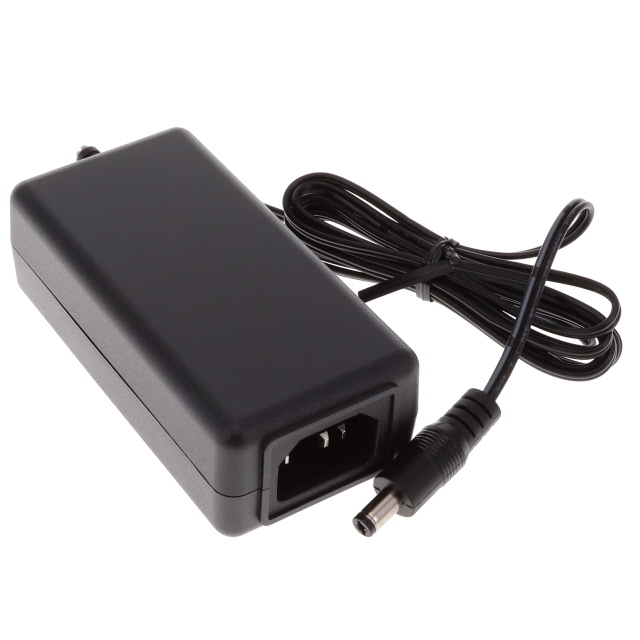

Phihong USA PPL18U-180	International	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	ITE (Commercial)	Positive Center	Cord (Sold Separately)	40 °C	0 °C	1.5 m	59 in	20 W	75 mW	Desktop (Class I)	10 mm	2.1 mm 5.5 mm	Barrel Plug	IEC 320-C14		264 VAC	90 VAC	18 V	cULus IEC	CoC Tier 2 Level VI	62368-1

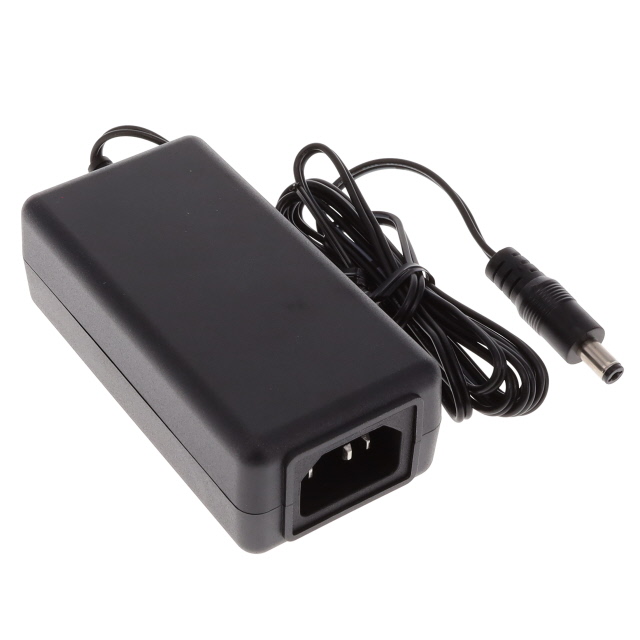

Phihong USA PPL18U-240	International	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	ITE (Commercial)	Positive Center	Cord (Sold Separately)	40 °C	0 °C	1.5 m	59 in	19 W	75 mW	Desktop (Class I)	10 mm	2.1 mm 5.5 mm	Barrel Plug	IEC 320-C14	0.8 A	264 VAC	90 VAC	24 V	cULus IEC	CoC Tier 2 Level VI	62368-1

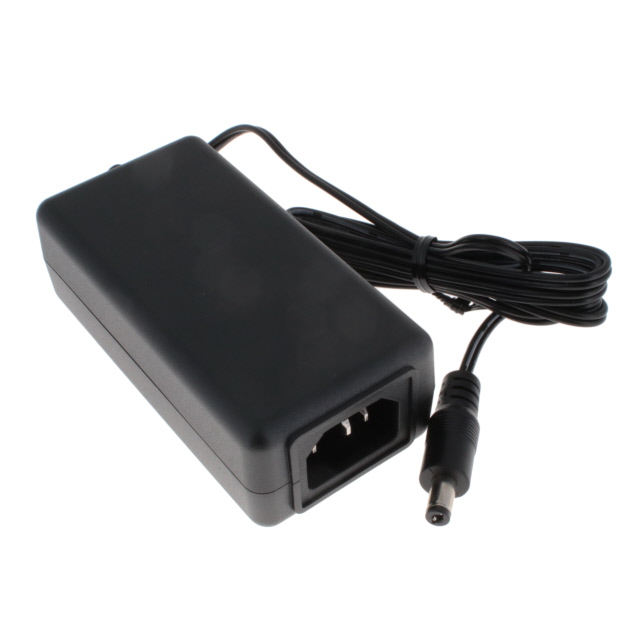

Phihong USA PPL18U-120	International	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	ITE (Commercial)	Positive Center	Cord (Sold Separately)	40 °C	0 °C	1.5 m	59 in	19 W	75 mW	Desktop (Class I)	10 mm	2.1 mm 5.5 mm	Barrel Plug	IEC 320-C14	1.6 A	264 VAC	90 VAC	12 V	cULus IEC	CoC Tier 2 Level VI	62368-1

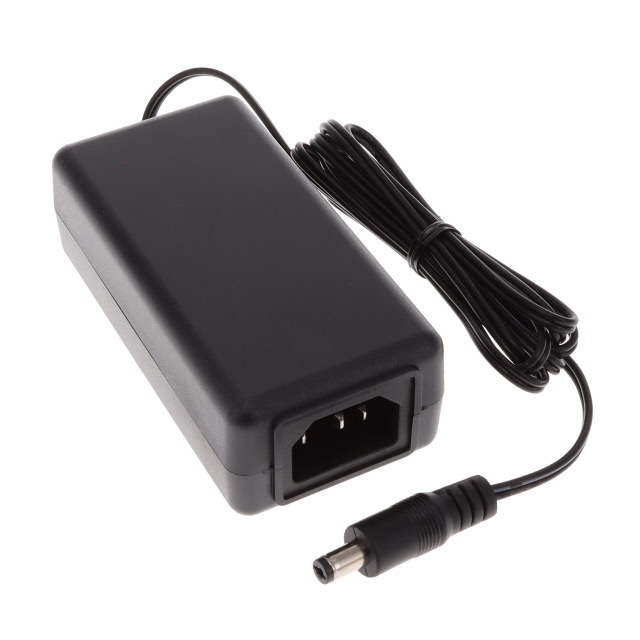

Phihong USA PPL18U-150	International	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	ITE (Commercial)	Positive Center	Cord (Sold Separately)	40 °C	0 °C	1.5 m	59 in	20 W	75 mW	Desktop (Class I)	10 mm	2.1 mm 5.5 mm	Barrel Plug	IEC 320-C14	1.3 A	264 VAC	90 VAC	15 V	cULus IEC	CoC Tier 2 Level VI	62368-1
