57050-000 Series

57050 000 ACTUATOR

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

57050 000 ACTUATOR

Part	Operating Temperature	Material - Magnet	Package / Case	Size [z]	Size [y]	Size [y]	Size [z]	Size [x]	Size [x]	Housing Material
Littelfuse/Commercial Vehicle Products 57050-000	105 °C	Alnico 5 (AlNiCo)	PCB Module	6.73 mm	0.18 in	4.57 mm	0.265 in	0.9 in	22.9 mm	Plastic

Catalog

57050 000 ACTUATOR

Description

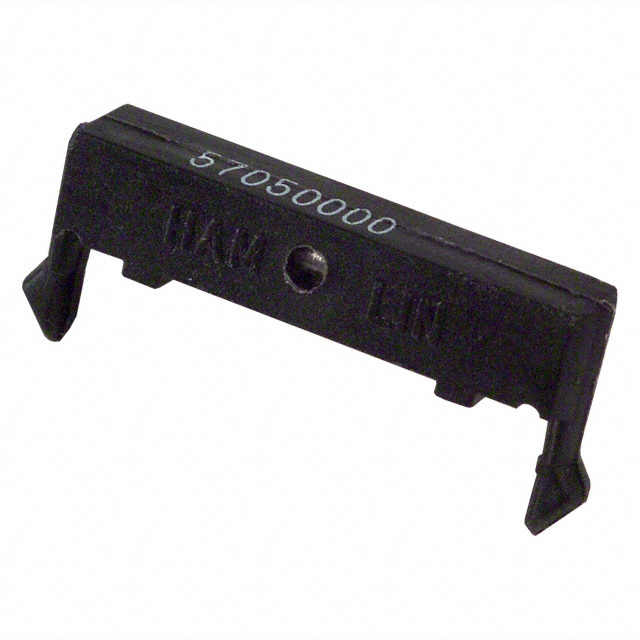

AlNiCo-5 magnet in a rectangular package with mounting clips to facilitate easy installation onto printed circuit boards. Overall dimensions of 22.86mm L x 4.57mm W x 4.57mm H. Recommended for use with the 59050 overmolded reed switch.
