PXC03 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

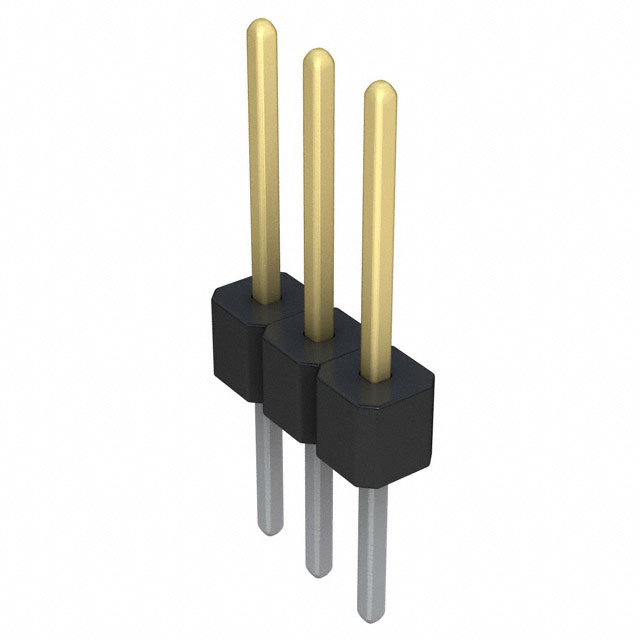

CONN HEADER VERT 3POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Insulation Material | Contact Type | Contact Finish - Post | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Fastening Type | Material Flammability Rating | Number of Rows | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Mounting Type | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Termination | Contact Finish - Mating | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Insulation Color | Current Rating (Amps) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 2.54 µm | 100 µin | Unshrouded | Polyester Thermoplastic | Male Pin | Tin | Square | 0.1 " | 2.54 mm | 5.58 mm | 0.22 in | Push-Pull | UL94 V-0 | 1 | All | 0.638 in | 16.21 mm | Through Hole | Board to Board Cable | 0.76 Ám | 30 Áin | Header | Solder | Gold | 0.1 in | 2.54 mm | 8.08 mm | 0.318 in | Black | 3 A | Copper Alloy |
