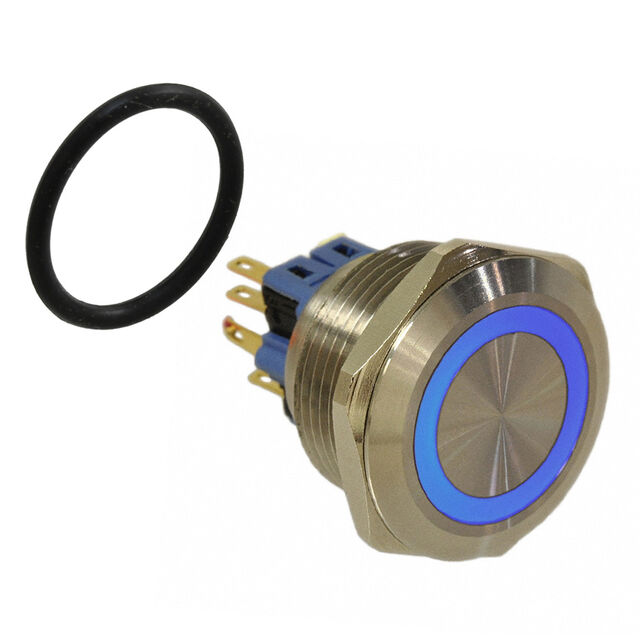

PV9F2 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON 4PST 2A 48V

Part	Mechanical Life	Electrical Life	Ingress Protection	Actuator Type	Mounting Type	Illumination Type, Color	Color - Actuator/Cap	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Termination Style	Switch Function	Type	Circuit	Actuator Marking
E-Switch PV9F2U0SS-3L1	1000000 Cycles	50000 Cycles	IP66 - Dust Tight Water Resistant	Button Flush Round	Panel Mount Front	Blue/Orange LED	Silver	1.8 VDC 2.8 VDC	55 °C	-20 ░C	2 A	28 mm	48 V	Solder Quick Connect - 0.110" (2.8mm)	Off-On On-Off	Anti-Vandal Illuminated	4PST-2NO/2NC
E-Switch PV9F2V0SS-3G5-PTE	1000000 Cycles	50000 Cycles	IP66 - Dust Tight Water Resistant	Button Flush Round	Panel Mount Front	Green/Red LED	Silver	24 V	55 °C	-20 ░C	2 A	28 mm	48 V	Solder Quick Connect - 0.110" (2.8mm)	Off-Mom On-Mom	Anti-Vandal Illuminated	4PST-2NO/2NC	No Marking
E-Switch PV9F2Y0SS-344	1000000 Cycles	50000 Cycles	IP66 - Dust Tight Water Resistant	Button Flush Round	Panel Mount Front	Blue LED	Silver	12 VDC	55 °C	-20 ░C	2 A	28 mm	48 V	Solder Quick Connect - 0.110" (2.8mm)	Off-Mom On-Mom	Anti-Vandal Illuminated	DPST-NO/NC	No Marking

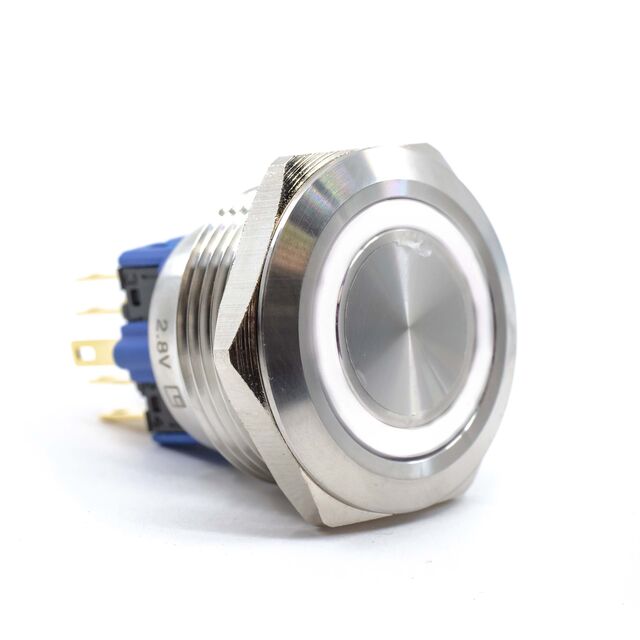

E-Switch PV9F2V0SS-301	1000000 Cycles	50000 Cycles	IP66 - Dust Tight Water Resistant	Button Flush Round	Panel Mount Front	LED White	Silver	2.8 VDC	55 °C	-20 ░C	2 A	28 mm	48 V	Solder Quick Connect - 0.110" (2.8mm)	Off-Mom On-Mom	Anti-Vandal Illuminated	4PST-2NO/2NC
E-Switch PV9F2V0SS-341	1000000 Cycles	50000 Cycles	IP66 - Dust Tight Water Resistant	Button Flush Round	Panel Mount Front	Blue LED	Silver	2.8 VDC	55 °C	-20 ░C	2 A	28 mm	48 V	Solder Quick Connect - 0.110" (2.8mm)	Off-Mom On-Mom	Anti-Vandal Illuminated	4PST-2NO/2NC	No Marking
E-Switch PV9F2U0SS-3G5	1000000 Cycles	50000 Cycles	IP66 - Dust Tight Water Resistant	Button Flush Round	Panel Mount Snap-In	Green/Red LED	Silver	24 V	55 °C	-20 ░C	2 A	28 mm	48 V	Solder Quick Connect - 0.110" (2.8mm)	Off-On On-Off	Anti-Vandal Illuminated	4PST-2NO/2NC
E-Switch PV9F2V011-3G5-PTE	1000000 Cycles	50000 Cycles	IP66 - Dust Tight Water Resistant	Button Flush Round	Panel Mount Front	Green/Red LED	Black	24 V	55 °C	-20 ░C	2 A	28 mm	48 V	Solder Quick Connect - 0.110" (2.8mm)	Off-Mom On-Mom	Anti-Vandal Illuminated	4PST-2NO/2NC	No Marking
