9613-1563 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMA / RIGHT ANGLE JACK FEMALE SO
| Part | Mating Cycles | Dielectric Material | Body Finish | Voltage Rating | Body Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Connector Style | Number of Ports | Connector Type | Impedance | Housing Color | Center Contact Material | Mounting Feature | Cable Group | Shield Termination | Frequency - Max [Max] | Mounting Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

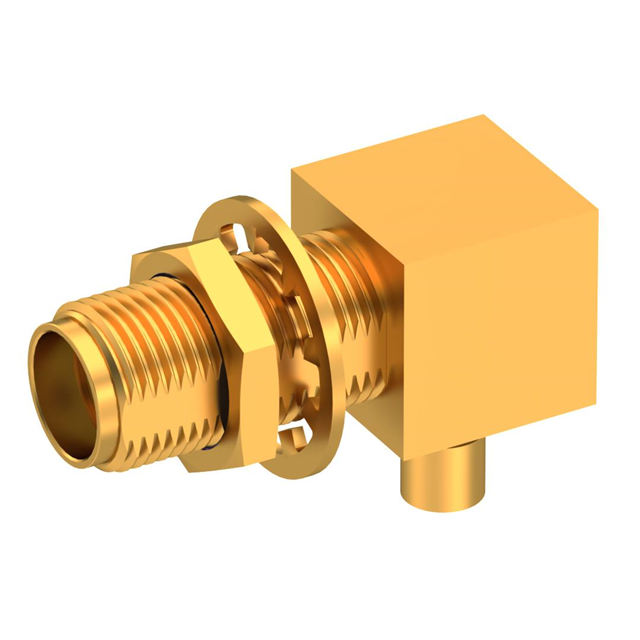

 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Gold | 350 VDC | Stainless Steel | Gold | 105 ░C | -65 ░C | Threaded | SMA | 1 | Female Socket Jack | 50 Ohms | Gold | Beryllium Copper | Bulkhead - Front Side Nut | RG-405 (.085" Semi Rigid) | Solder | 18 GHz | Panel Mount Right Angle | Solder |

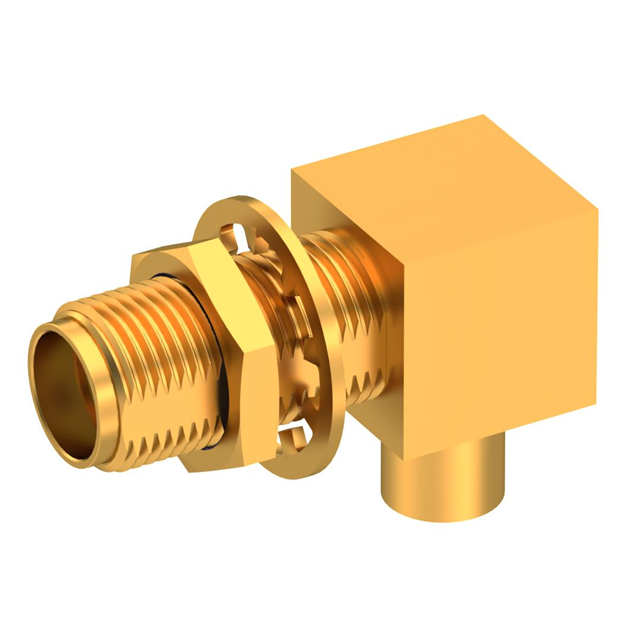

 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Gold | 500 V | Stainless Steel | Gold | 105 ░C | -65 ░C | Threaded | SMA | 1 | Female Socket Jack | 50 Ohms | Gold | Beryllium Copper | Bulkhead - Front Side Nut | Solder | 18 GHz | Panel Mount Right Angle | Solder |
