M2018TX Series

Catalog

SWITCH ROCKER SPDT 6A 125V

Part	Electrical Life	Mechanical Life	Switch Function	Voltage Rating - DC	Actuator Type	Features	Current Rating (Amps)	Termination Style	Circuit	Mounting Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Approval Agency	Color - Actuator/Cap

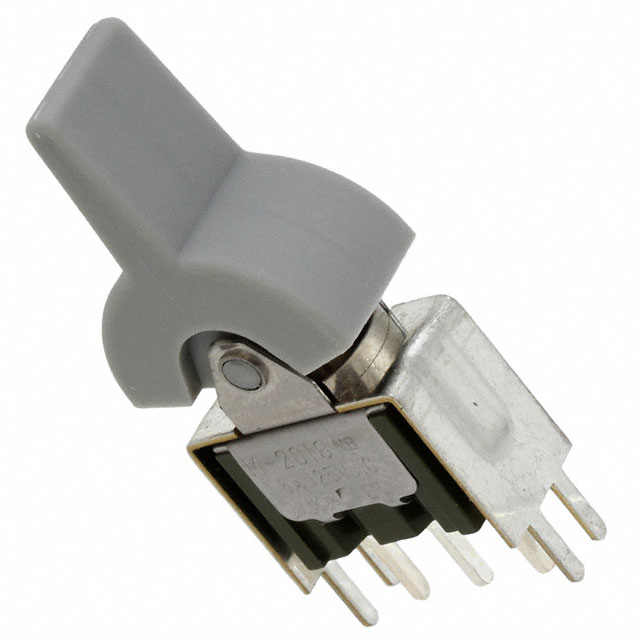

NKK Switches M2018TXW13-EH	25000 Steps	50000 Cycles	Mom-Off-Mom	30 V	Paddle	Epoxy Sealed Terminals	3 A 6 A	PC Pin	SPDT	Through Hole	125 V	85 °C	-30 ░C	No Marking	CSA UL

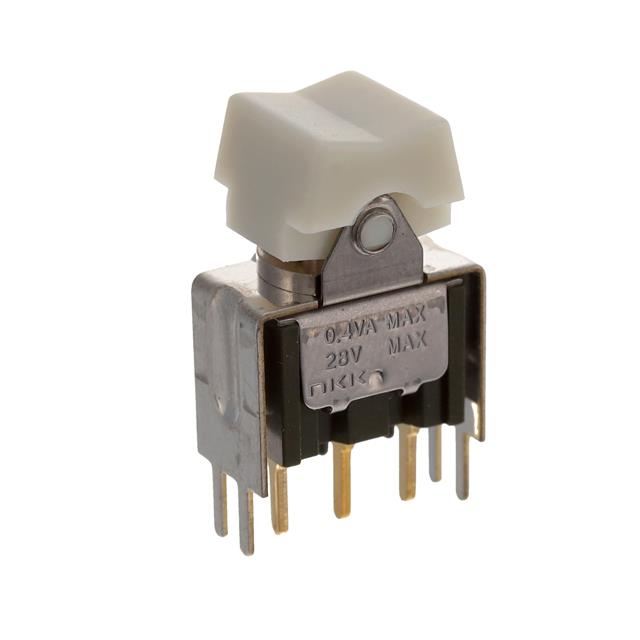

NKK Switches M2018TXG13-FB	50000 Cycles	50000 Cycles	Mom-Off-Mom	28 V	Concave	Epoxy Sealed Terminals	0.4 VA	PC Pin	SPDT	Through Hole	28 V	85 °C	-30 ░C	No Marking	CSA UL	White
NKK Switches M2018TXW13/CUL-GA	25000 Steps	50000 Cycles	Mom-Off-Mom	30 V	Paddle	Epoxy Sealed Terminals	3 A 6 A	PC Pin	SPDT	Through Hole	125 V	85 °C	-30 ░C	No Marking	CSA UL	Black
NKK Switches M2018TXG13-DB	50000 Cycles	50000 Cycles	Mom-Off-Mom	28 V	Concave	Epoxy Sealed Terminals	0.4 VA	PC Pin	SPDT	Through Hole	28 V	85 °C	-30 ░C	No Marking	CSA UL	White
NKK Switches M2018TXW13-EE	25000 Steps	50000 Cycles	Mom-Off-Mom	30 V	Paddle	Epoxy Sealed Terminals	3 A 6 A	PC Pin	SPDT	Through Hole	125 V	85 °C	-30 ░C	No Marking	CSA UL	Yellow

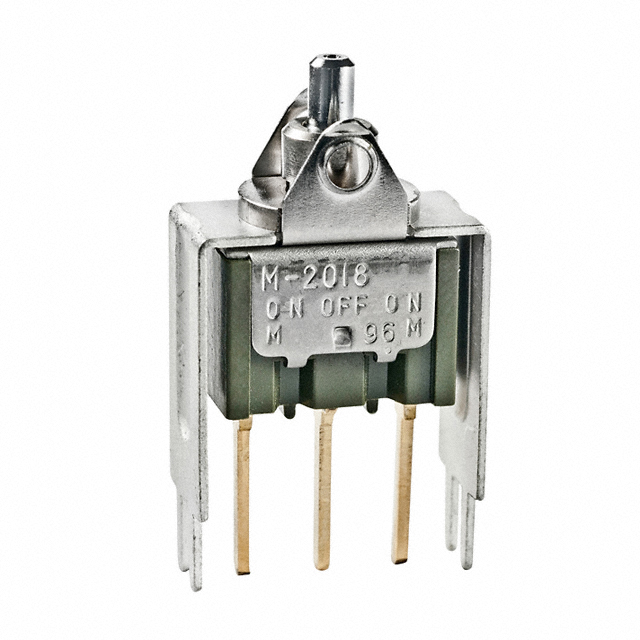

NKK Switches M2018TXG15	50000 Cycles	50000 Cycles	Mom-Off-Mom	28 V	Actuator Arm Cap Required	Epoxy Sealed Terminals	0.4 VA	PC Pin	SPDT	Through Hole	28 V	85 °C	-30 ░C	Varies by Cap	CSA UL
NKK Switches M2018TXG13-GH
NKK Switches M2018TXW13-FC	25000 Steps	50000 Cycles	Mom-Off-Mom	30 V	Concave	Epoxy Sealed Terminals	3 A 6 A	PC Pin	SPDT	Through Hole	125 V	85 °C	-30 ░C	No Marking	CSA UL	Red
NKK Switches M2018TXG15-DH	50000 Cycles	50000 Cycles	Mom-Off-Mom	28 V	Concave	Epoxy Sealed Terminals	0.4 VA	PC Pin	SPDT	Through Hole	28 V	85 °C	-30 ░C	No Marking	CSA UL

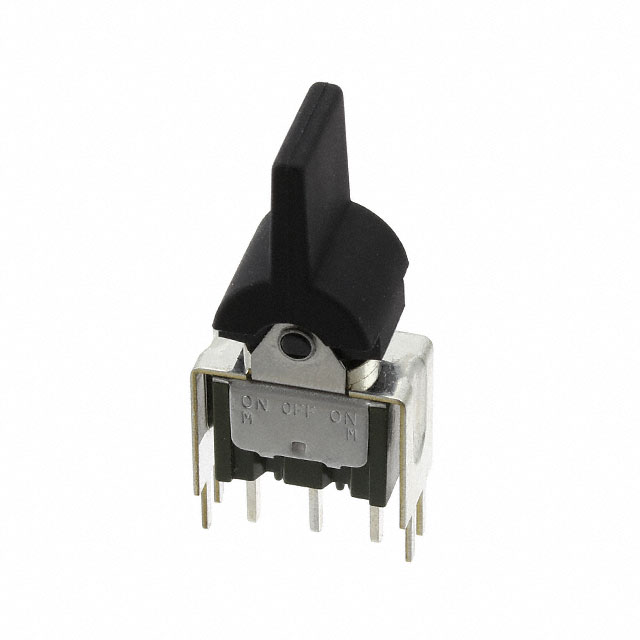

NKK Switches M2018TXW13-GA	25000 Steps	50000 Cycles	Mom-Off-Mom	30 V	Paddle	Epoxy Sealed Terminals	3 A 6 A	PC Pin	SPDT	Through Hole	125 V	85 °C	-30 ░C	No Marking	CSA UL	Black
