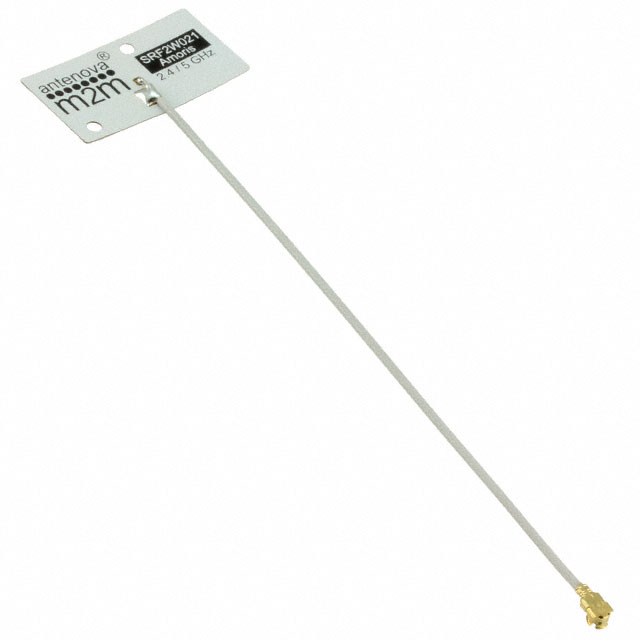

SRF2W021 Series

Manufacturer: Antenova

Catalog

RF ANT 2.4GHZ/5.4GHZ FLAT PATCH

Part	Termination	Termination	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Frequency Group	VSWR	Return Loss	Mounting Type	Gain	Antenna Type	Height (Max) [z]	Height (Max) [z]	Number of Bands	Applications	Features	Features
Antenova SRF2W021-100	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	2.5 GHz 5.9 GHz	2.4 GHz 4.9 GHz	WiFi	SHF UHF	1.7	-14 dB -10 dB	Adhesive	2.8 dBi 5.1 dBic	Flat Patch	0.15 mm	0.006 in	2	Wi-Fi	Cable	100 mm
Antenova SRF2W021-50	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	2.5 GHz 5.9 GHz	2.4 GHz 4.9 GHz	WiFi	SHF UHF	1.7	-14 dB -10 dB	Adhesive	2.8 dBi 5.1 dBic	Flat Patch	0.15 mm	0.006 in	2	Wi-Fi	Cable - 50mm
Antenova SRF2W021-150	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	2.5 GHz 5.9 GHz	2.4 GHz 4.9 GHz	WiFi	SHF UHF	1.7	-14 dB -10 dB	Adhesive	2.8 dBi 5.1 dBic	Flat Patch	0.15 mm	0.006 in	2	Wi-Fi	Cable - 150mm
