1337428 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

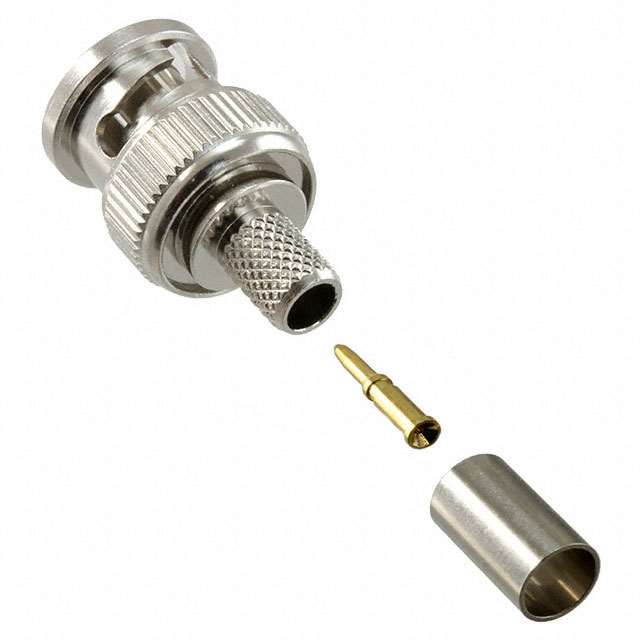

CONN BNC PLUG STR 75 OHM SOLDER
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Mating Cycles | Dielectric Material | Center Contact Plating | Insertion Loss | Body Finish | Body Material | Frequency - Max [Max] | Connector Type | Connector Style | Shield Termination | Center Contact Material | Impedance | Housing Color | Mounting Type | Number of Ports | Fastening Type | Cable Group | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500 V | -65 ░C | 165 °C | 1 Connector 1 Contact 1 Ferrule | 500 | Polytetrafluoroethylene (PTFE) | Gold | 0.2 dB | Nickel | Brass | 2 GHz | Plug Male Pin | BNC | Crimp | Brass | 75 Ohms | Silver | Free Hanging (In-Line) | 1 | Bayonet Lock | 140 210 62A RG-59B | Solder |
 TE Connectivity AMP Connectors | 500 V | -65 ░C | 165 °C | 1 Connector 1 Contact 1 Ferrule | 500 | Polytetrafluoroethylene (PTFE) | Gold | 0.2 dB | Nickel | Brass | 2 GHz | Plug Male Pin | BNC | Crimp | Brass | 75 Ohms | Silver | Free Hanging (In-Line) | 1 | Bayonet Lock | 140 210 62A RG-59B | Solder |
