19370031 Series
Manufacturer: HARTING
Beta
⌘K

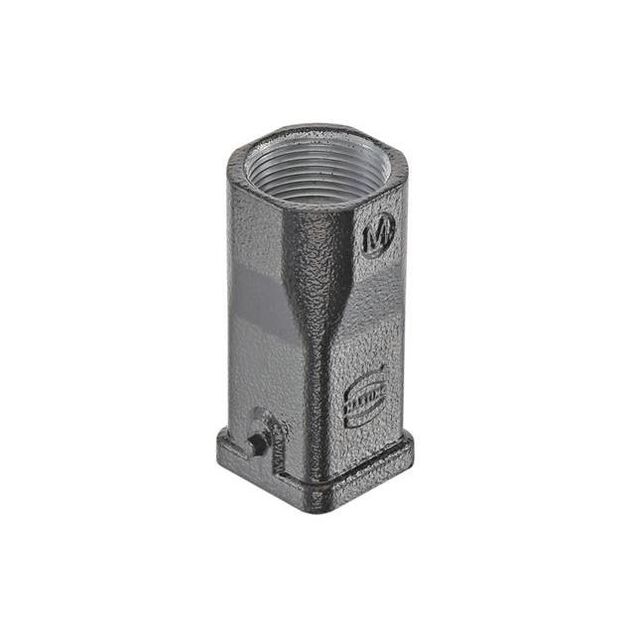

3A MARINE HOOD TOP ENTRY, M25 W/ SEALING
| Part | Housing Finish | Lock Location | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Connector Type | Size | Style | Housing Material | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Thread Size | Ingress Protection | Size | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Powder Coated | Locking Clip (1) on Base Bottom | 28 mm | 1.102 " | 27 mm | 2.354 in | 1.063 in | 59.8 mm | Hood | 3 A | Top Entry | Zinc Die Cast | Black | 125 °C | -40 C | M25 | IP65 IP67 | ||

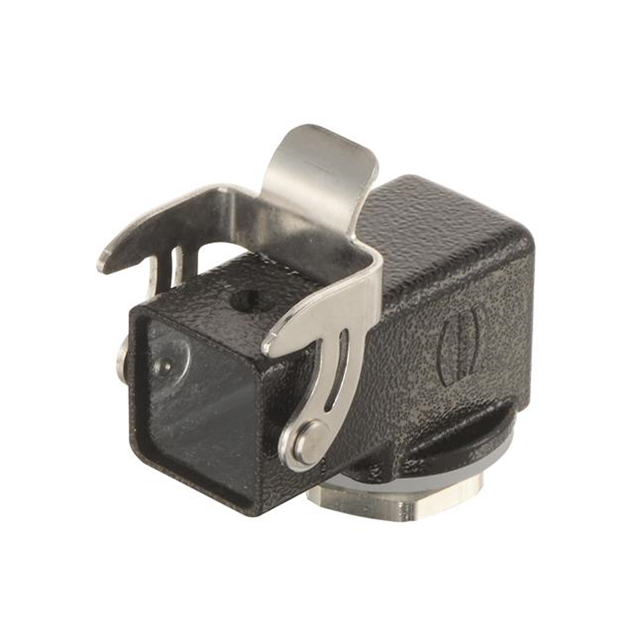

 HARTING | Powder Coated | Locking Clip (1) on Base Bottom | Base - Panel Mount 90° Bulkhead | 3 A | Side Entry | Zinc Die Cast | Black | 125 °C | -40 C | IP44 | |||||||||

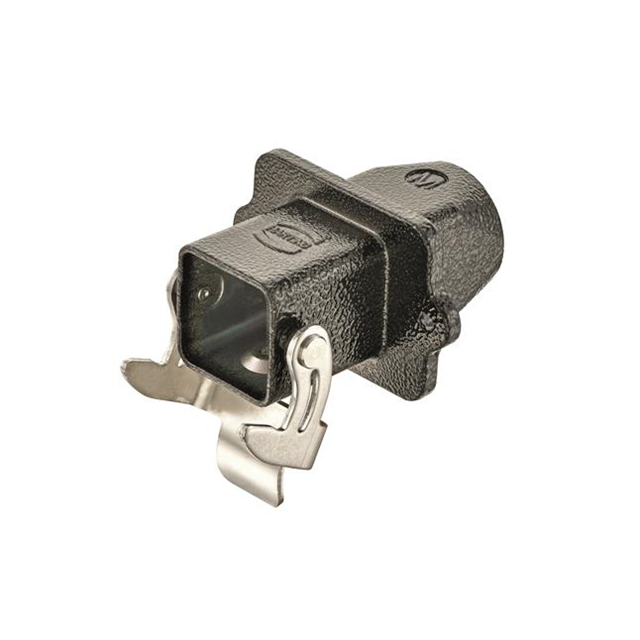

 HARTING | Locking Clip (1) on Base Bottom | Hood - Panel Mount Hood/Housing - Panel Mount | Zinc Die Cast | Black | 125 °C | -40 C | M20 | IP65 IP67 | A3 | ||||||||||

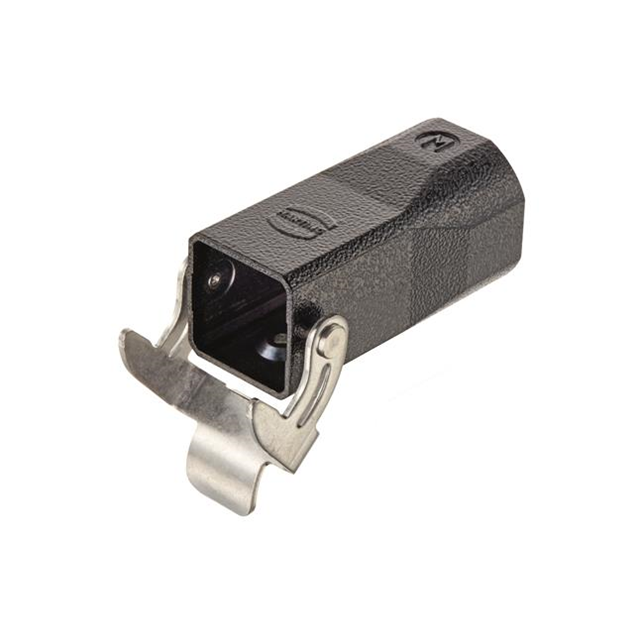

 HARTING | Powder Coated | Locking Clip (1) on Hood | Hood - Coupling Hood/Housing - Coupling | 3 A | Zinc Die Cast | Black | 125 °C | -40 C | M25 | IP65 IP67 | Cable to Cable | ||||||||

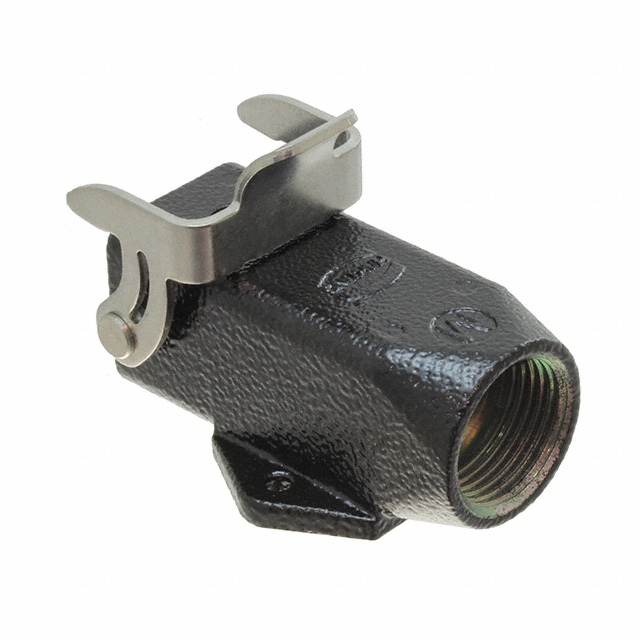

 HARTING | Powder Coated | Locking Clip (1) on Base Bottom | Base - Panel Mount 90° | 3 A | Side Entry | Zinc Die Cast | Black | 125 °C | -40 C | M20 | IP44 |
