XMAP Series

Catalog

CONN PLUG HSG 2POS 2.50MM

Part	Note	Mounting Type	Fastening Type	Number of Positions	Connector Type	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Insulation Material	Contact Type	Number of Rows	Color

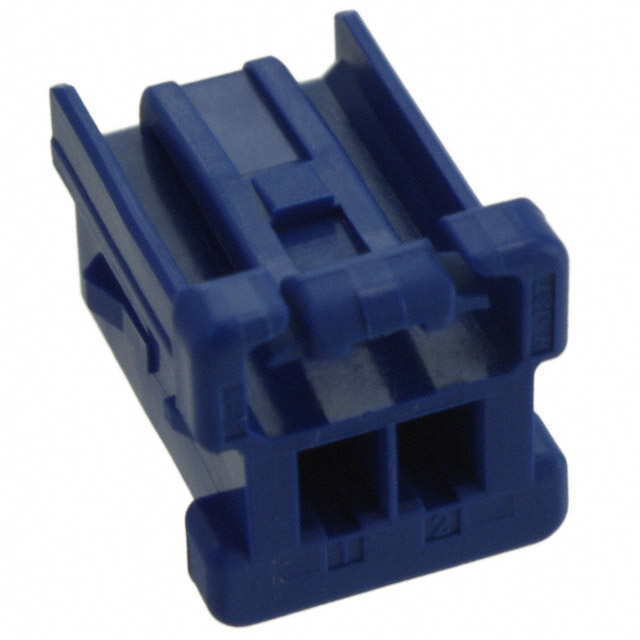

JST Sales America Inc. XMAP-02V-3-E(M8AM)	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	2	Plug	2.5 mm	0.098 in	85 °C	-25 °C	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	1	Blue

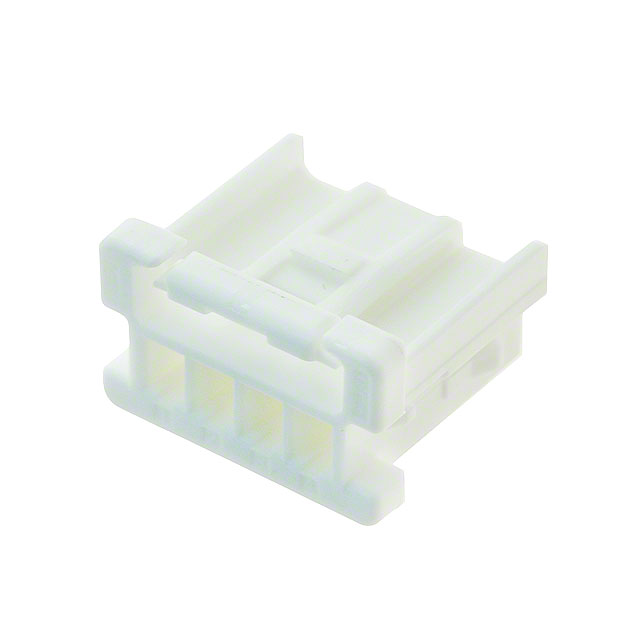

JST Sales America Inc. XMAP-04V-S(M8AM)	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	4	Plug	2.5 mm	0.098 in	85 °C	-25 °C	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	1	White

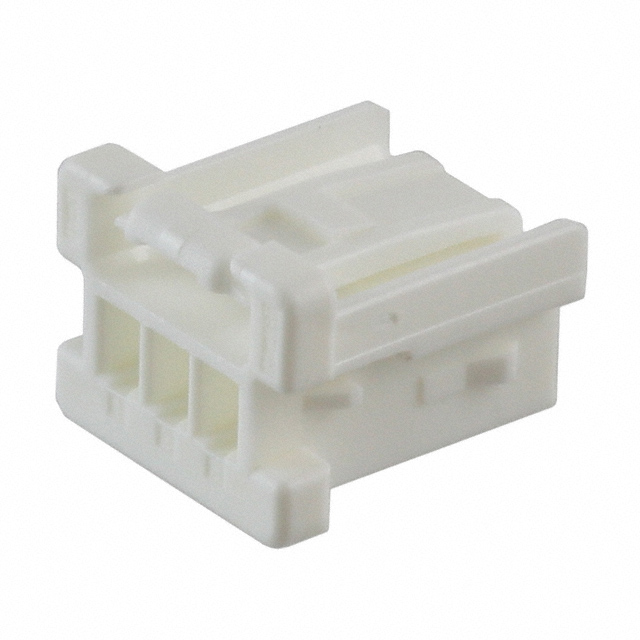

JST Sales America Inc. XMAP-03V-1-S(M8AM)	Contacts Not Included	Free Hanging (In-Line)	Latch Lock		Plug	2.5 mm	0.098 in	85 °C	-25 °C	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	1	White

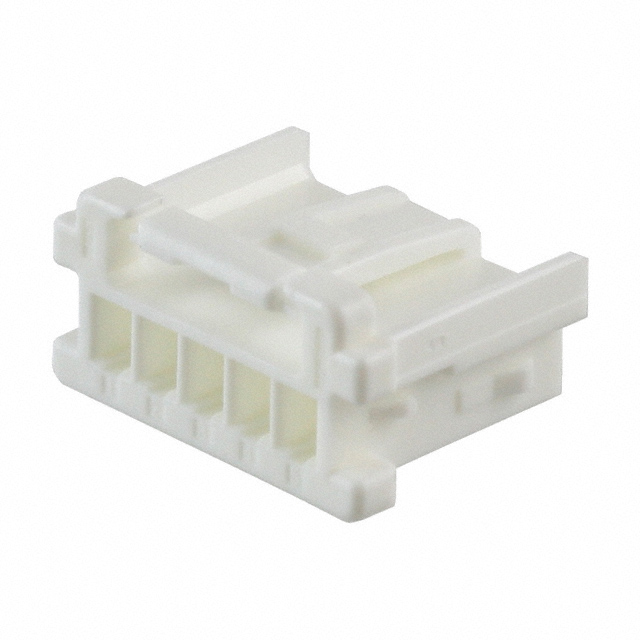

JST Sales America Inc. XMAP-05V-S(M8AM)	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	5	Plug	2.5 mm	0.098 in	85 °C	-25 °C	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	1	White

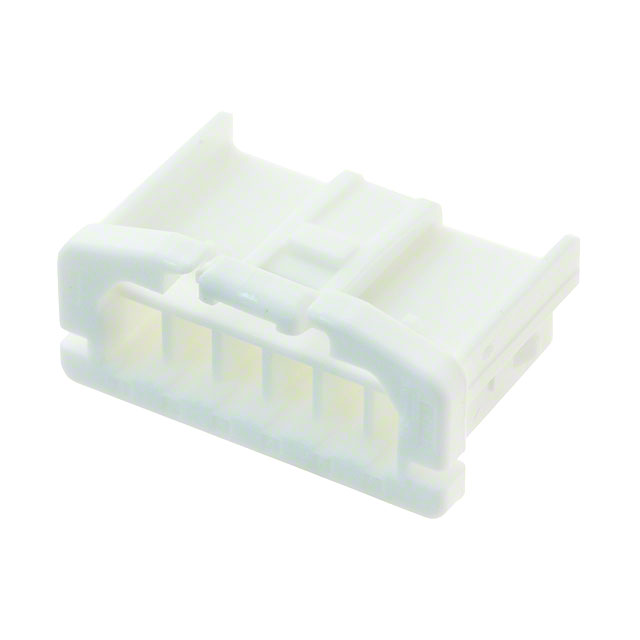

JST Sales America Inc. XMAP-06V-S(M8AM)	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	6	Plug	2.5 mm	0.098 in	85 °C	-25 °C	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	1	White

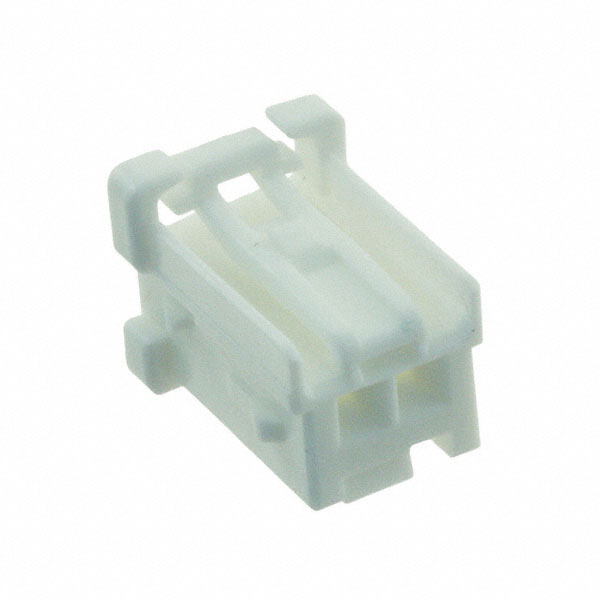

JST Sales America Inc. XMAP-02V-1-S(M8AM)	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	2	Plug	2.5 mm	0.098 in	85 °C	-25 °C	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	1	White

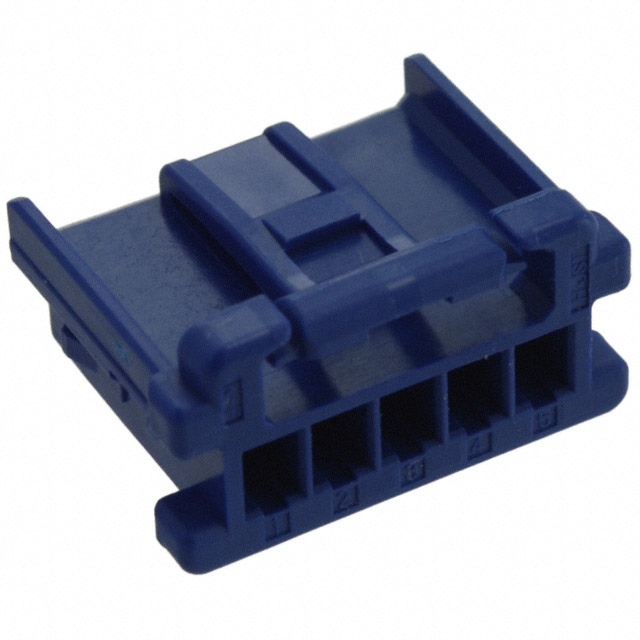

JST Sales America Inc. XMAP-05V-E(M8AM)	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	5	Plug	2.5 mm	0.098 in	85 °C	-25 °C	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	1	Blue

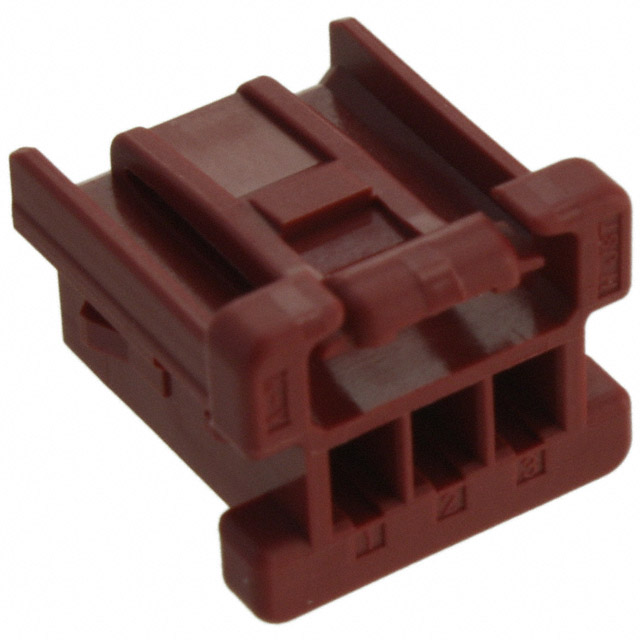

JST Sales America Inc. XMAP-03V-2-R(M8AM)	Contacts Not Included	Free Hanging (In-Line)	Latch Lock		Plug	2.5 mm	0.098 in	85 °C	-25 °C	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	1	Red
