19300161 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM BODY, 2 LEVER, 16B

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Style	Housing Finish	Thread Size	Lock Location	Ingress Protection	Housing Material	Size	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Features

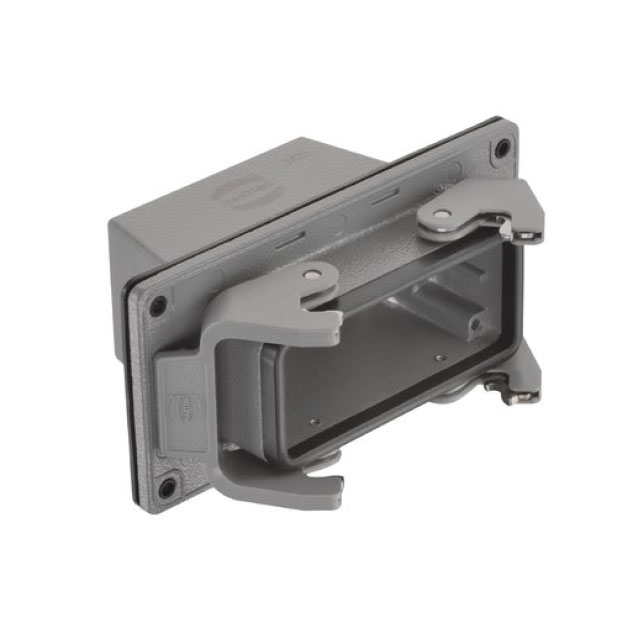

HARTING 19300161121	3.165 in	70.5 mm	80.4 mm	5.551 in	141 mm	2.776 in	Hood - Panel Mount	125 °C	-40 C	Gray	Top Entry	Powder Coated	M32	Locking Clip (2) on Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	16 B
HARTING 19300161512

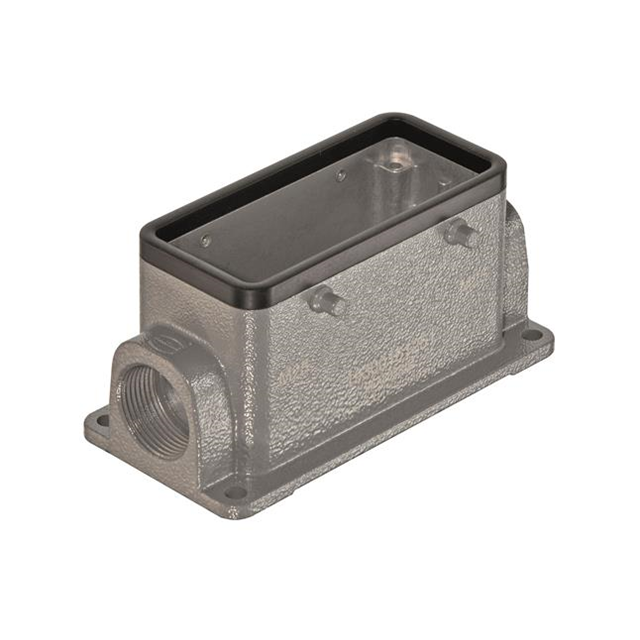

HARTING 19300161261		57 mm		117 mm			Base - Box Mount				Side Entry		M25	Locking Clip (2) on Hood			16 B	2.244 "	2.205 "	56 mm	4.606 in	Feed Through
HARTING 19300161231		57 mm		117 mm			Base - Box Mount	125 °C	-40 C	Gray	Side Entry	Powder Coated	M25	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	16 B	2.244 "	2.205 "	56 mm	4.606 in

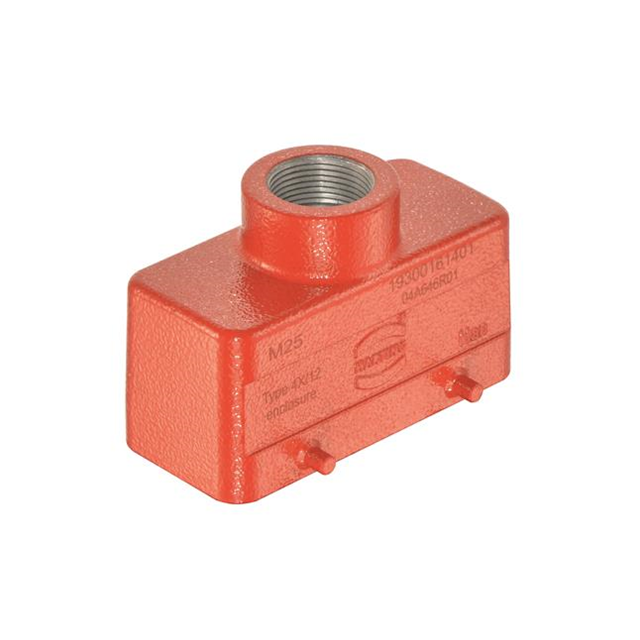

HARTING 19300161401							Hood	125 °C	-40 C	Red	Top Entry		M25	Locking Clip (2) on Base Bottom	IP65 IP66 IP67	Aluminum Die Cast	16 B
HARTING 19300161503
HARTING 19300161542	2.461 in 62.5 mm			3.681 in 93.5 mm		1.693 " 43 mm	Hood	125 °C	-40 C	Gray	Side Entry	Powder Coated	M32	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	16 B

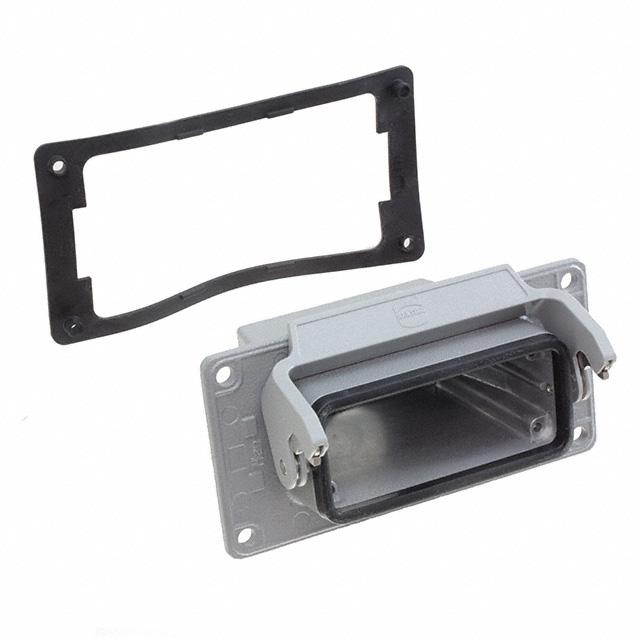

HARTING 19300161131	3.165 in	70.5 mm	80.4 mm	5.551 in	141 mm	2.776 in	Hood - Panel Mount	125 °C	-40 C	Gray	Top Entry	Powder Coated	M32	Locking Clip (1) on Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	16 B
HARTING 19300161541	2.461 in 62.5 mm			3.681 in 93.5 mm		1.693 " 43 mm	Hood	125 °C	-40 C	Gray	Side Entry	Powder Coated	M25	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	16 B

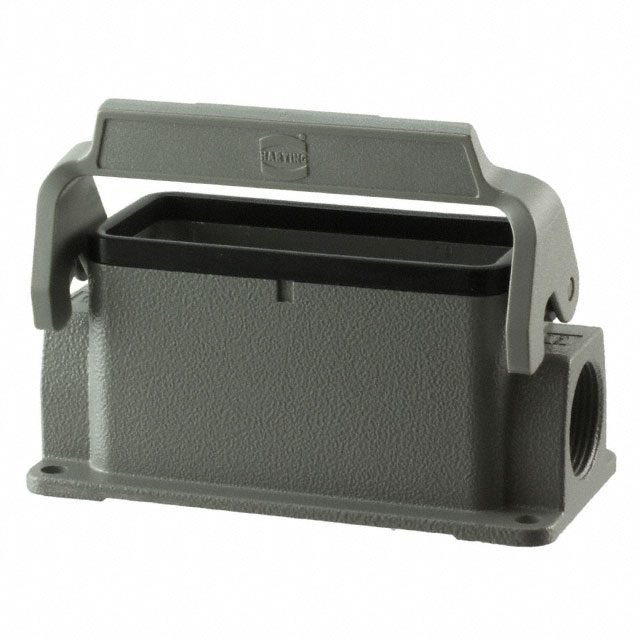

HARTING 19300161291		57 mm		117 mm			Base - Box Mount	125 °C	-40 C	Gray	Side Entry	Powder Coated	M25	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	16 B	2.244 "	2.197 in	55.8 mm	4.606 in	Feed Through
